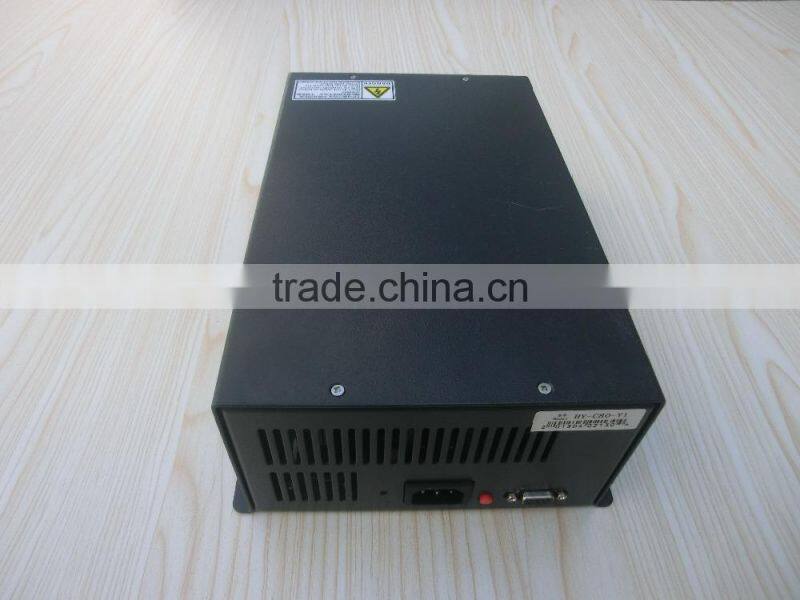

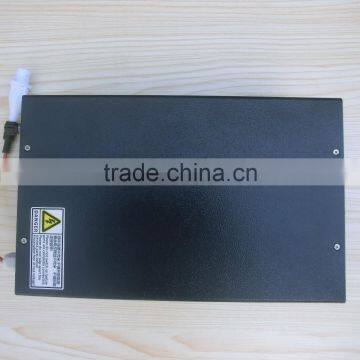

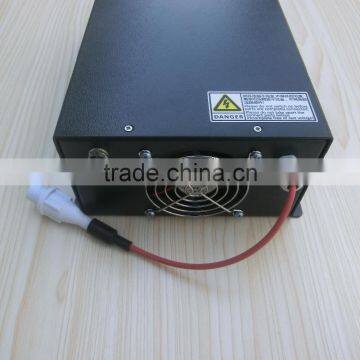

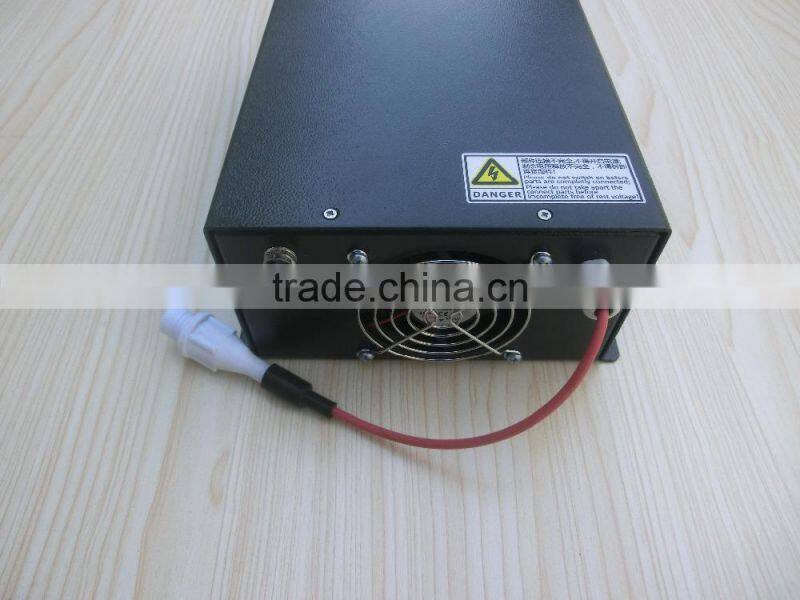

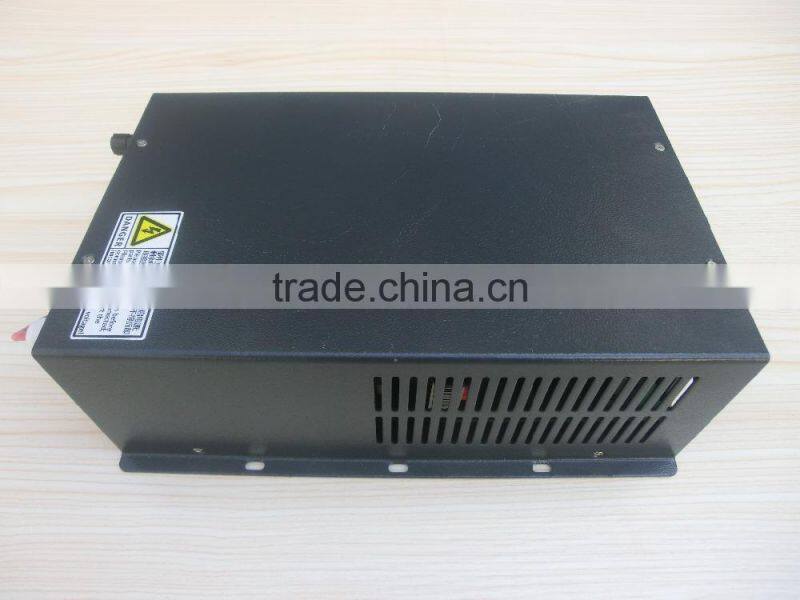

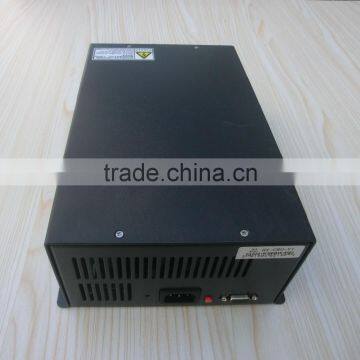

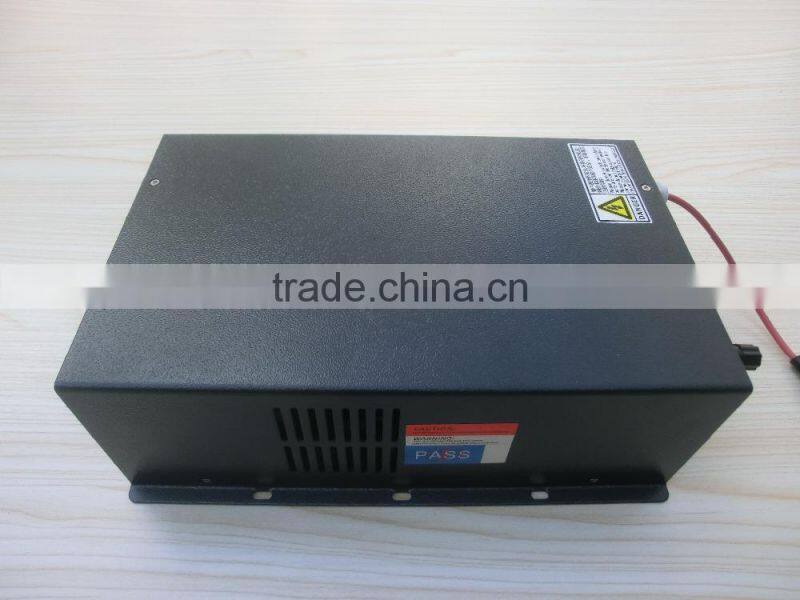

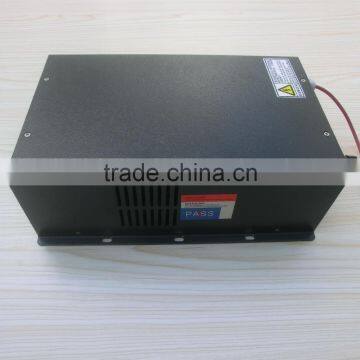

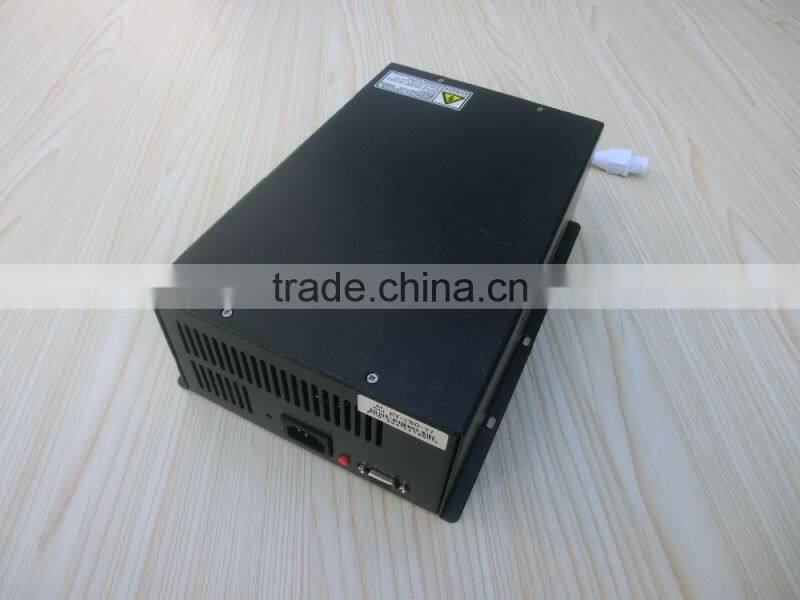

HY-C80-Y1,high quality 80W CO2 laser power supply for yueming laser machine
HY-C80-Y1 DB9pin power supply for 60w,70w and 80w Yueming laser cutting and engraving machine.
Model: HY-C80-Y1 for 60w, 70w and 80w Yueming CMA Co2 Laser Cutting Machine.
Alias: Co2 Laser Generator,Co2 Laser Source,Co2 Laser Device,High Voltage Power Supply.
Application: Laser Power Supply is used for 60W,80W, CMA Yueming Laser Cutting and Engraving Acrylic, Fabric, Double Color Sheet and Rubber,etc.

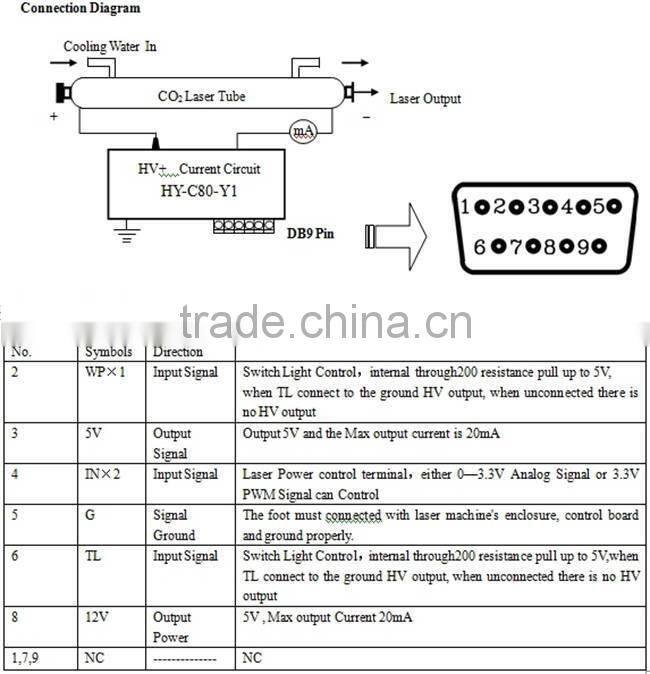

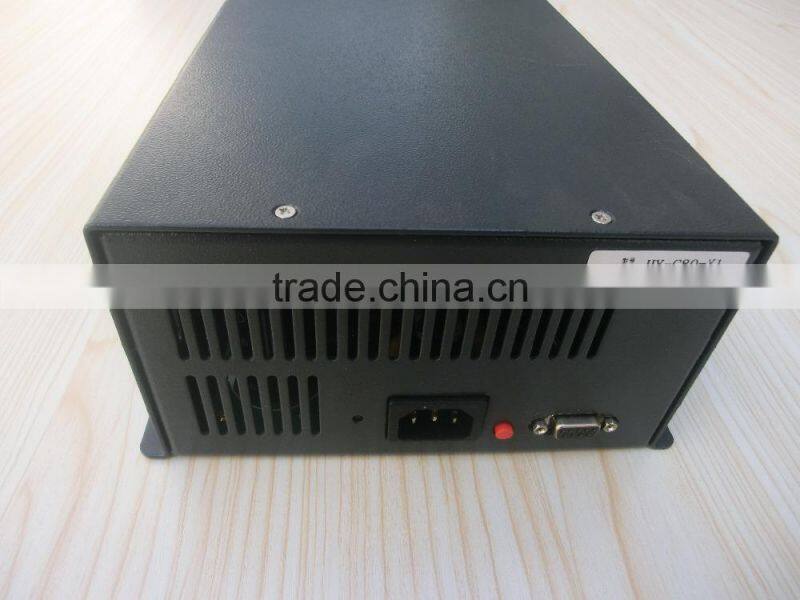

1. HY-C80-Y1 with DB9 pin, it is controlled by 0 ~ 3.3v analog signals or PWM control signal,
Special designed for 60W,80W CMA laser cutting machine manufactured by Yueming factories.
2. High Voltage Power Supply: Input AC 220V or AC 110V Voltage ,Max output DC 40KV.
4. This Power Supply has the” TEST” button which can test output laser manually.
5. The Laser Power Supply has high Output Power, good stability, this can prolong laser tube's service life.
1. Easy Control: The start and stop of laser can be easily controlled by TTL level. either 0 ~ 3.3v analog signals or PWM control signal can control the laser power.
2. The Laser Power Supply has output open circuit protection.
3. This Laser power supply has TTL signal indication, water through signal indication and laser output indication.
4. The power has feedback interface, can be used for closed-loop control, also can be used for testing the laser tube working current.
Input |
Input Voltage |
AC110V or AC220V ( to be specified when placing the order) |
|
AC frequency |
47—440HZ |
||
Max input power |
550w | ||
Max output current |
3A |
||
Output |
Max Output Voltage |
≥DC 40KV |
|
Max Output Current |
≥DC 28mA |
||
Efficiency |
≥90 percent (full load) |
||
MeanTime Between Failure (MTBF) |
≥10000 hour |
||
Response Speed |
≤1ms(from the switch Signal is given to the output current up to 90% of the setting current) |
||
Withstand Voltage |
Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. |
||
Environment |
Operating Temperature:-10~40°C),Relative Humidity (RH)≤90 percent |
||
Cooling Way |
Force-Air Cooling (FAC) |
||
Dimension |
L×W×H=280*173*97 (mm) |
||
Color |
Black |
||
The power supply comes with a full year warranty since the formal acceptance date.
Shenzhen Reliable Electromechanical Technology Company is a professional laser equipment supplier, committed to the R&D, production and sales of laser marking machine, laser cutting machines and laser engraving machines, as well as laser equipment parts.
