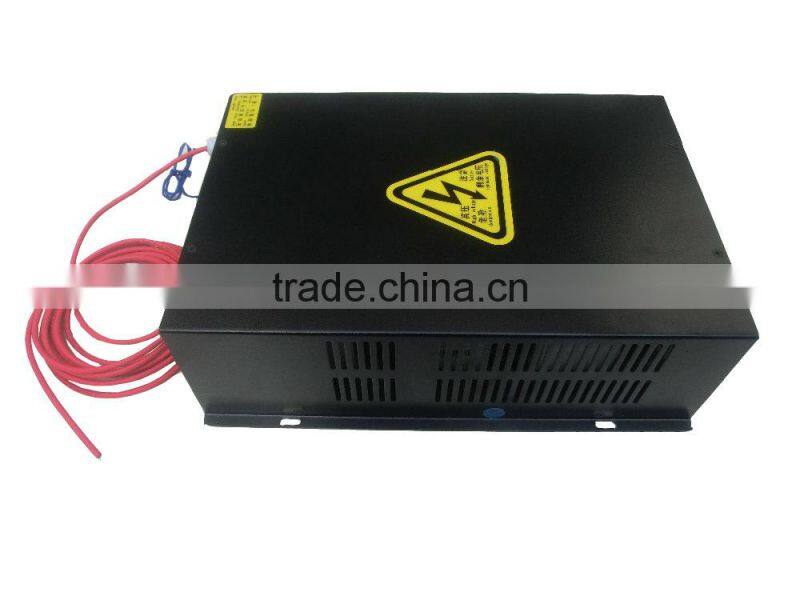

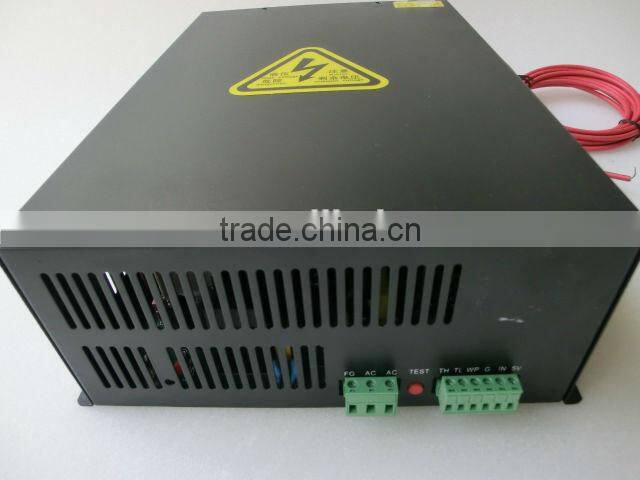

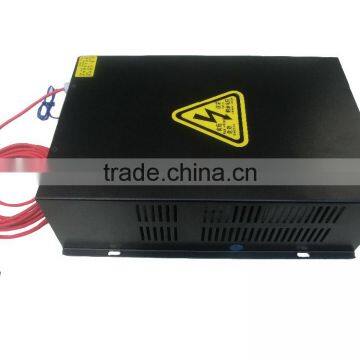

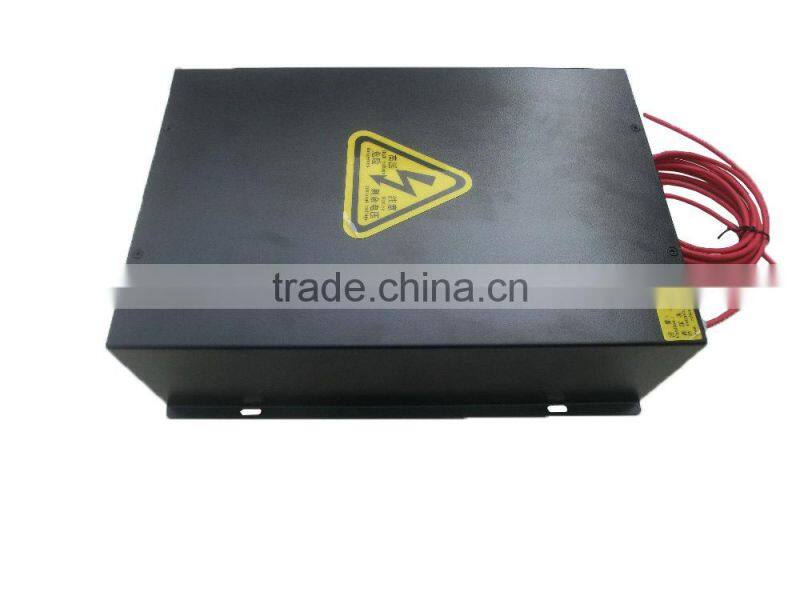

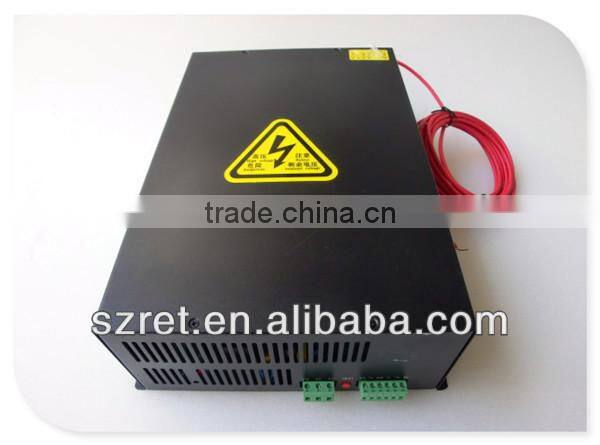

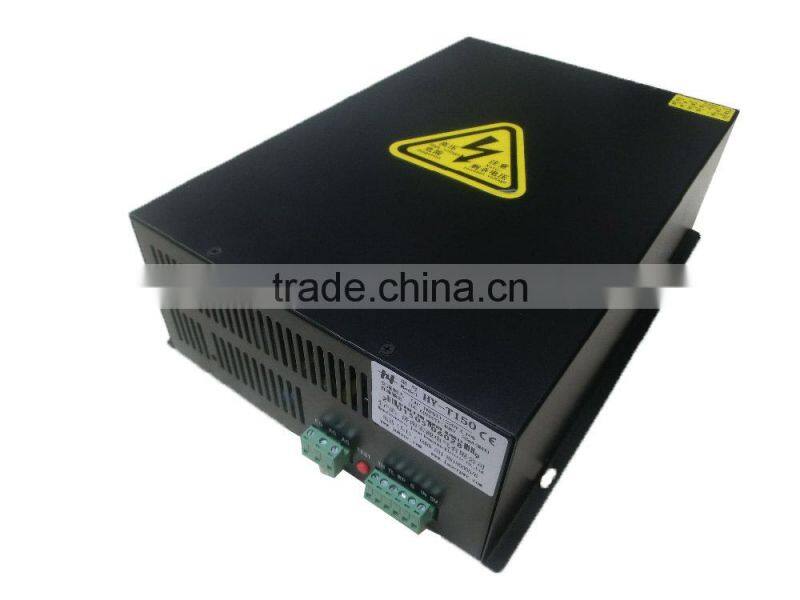

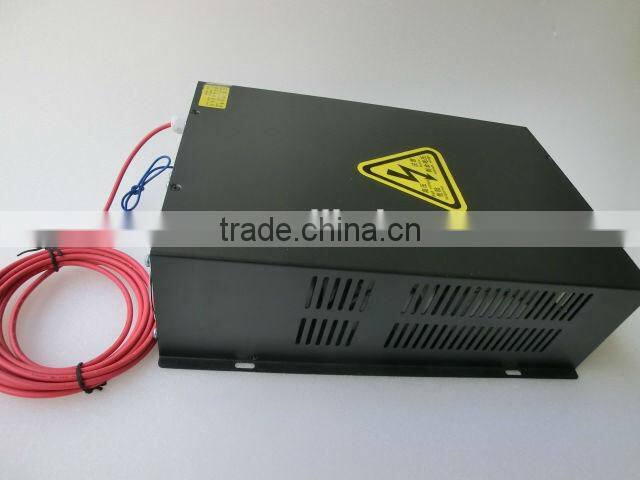

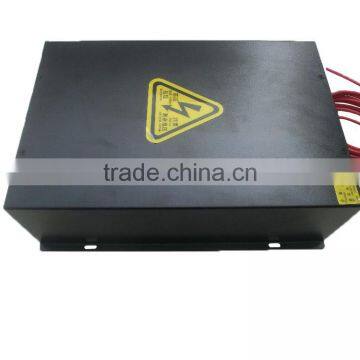

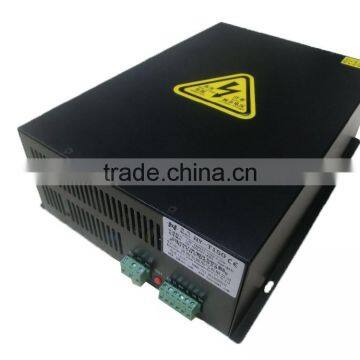

co2 laser 130w power source
for glass laser tube economy model
100w-150w
input voltage AC220V OR AC110V
AC frequency 47-440Hz
max output voltage DC50kv
max output current DC38mA
Input Voltage |
Input Voltage |
AC220V or AC110V |
|
|
AC Frequency |
47-440Hz |
|
|
Cold surge current |
≤60A(AC220V input) |
≤60A(AC220V input) |
|
Leak current |
≤0.7mA(AC220V input) |
≤0.7mA(AC220V input) |
Output |
Max output Voltage |
DC50KV |
|
|
Max Output current |
DC 38mA |
|
Efficiency |
when≤92%load down |
||
Time no-failure |
≤10000 hours |
||
Response speed |
≤1ms(the time from output of switch signal to 90%of initial setting current) |
||

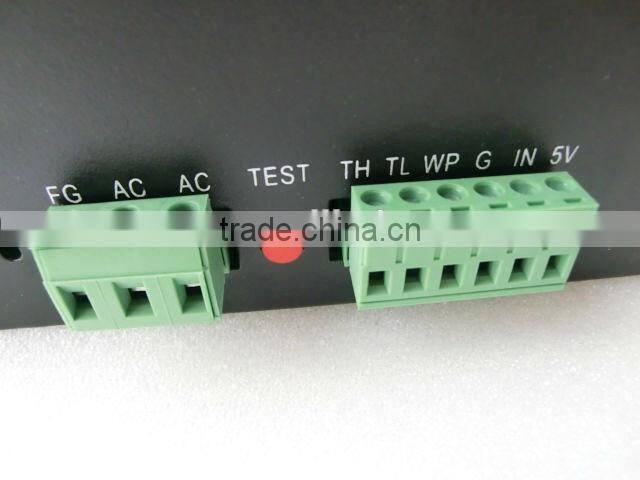

Control port |
TLL electricity level switch control, valid electricity has high/low level choices |
||
Vollage-resisting |
Input-Output ,input-machine hull: 1500V 10mA 60s AC output cathode and machine hull connection |
||
Protection |
Can be used an opening way in a short time(request the outer shell be good to connent the ground avoid arcing between anode and machine hull connection in the machine) |
||
Vsage environment |
Work temperature:(-10-40)°C.Relative humidity:≤90% |
||

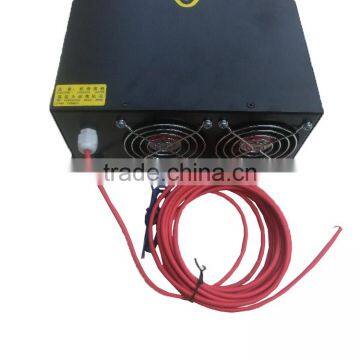

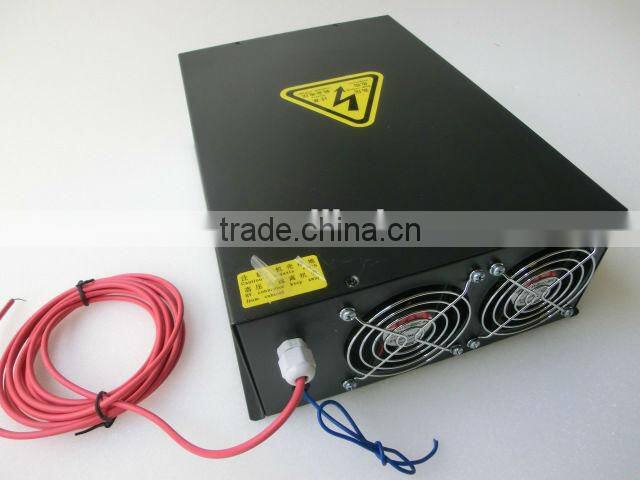

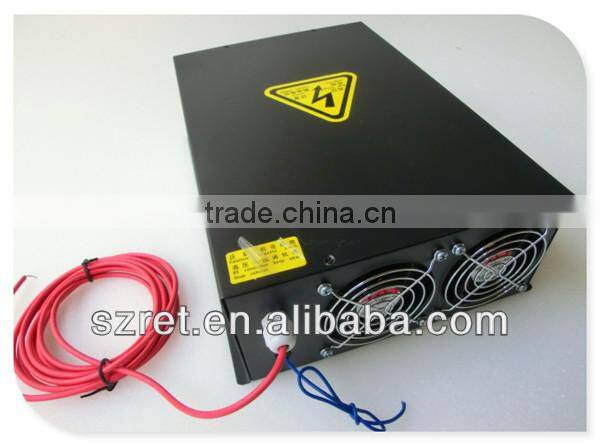

Cooling Type |
The compuisive air cooling |
||
size |
L×W×H=350×240×95(mm) |
||
Weight |
6kg |
||
Caution:
1.Water cooling system should be working properly when switching on laser
device.
2.Circuit of high voltage output should not be open! (High voltage output
terminals(positive and negative poles) shall be properly connected to positive
and negative poles of laser device, respectively.)
3. Attentions should be given to avoid any electric shock after the power
supply being switched off.
4. Well-grounded three-pole receptacle should be used to supply power to HYHVCO2/
X power supply. The enclosure should be well grounded to avoid electric
shock.
