2016 new table MYJG150W CO2 laser power supply with LED display, diagnosis function and regulator

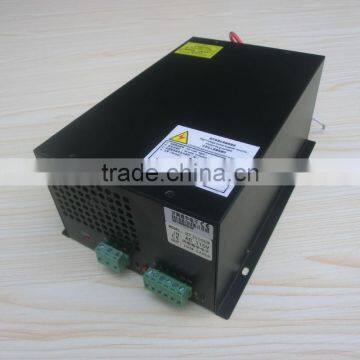

I. New stable laser power supply picture and installation size

II. Modular design, detect laser power supply signal and water protection signal automatically. Consistent mounting holes, be suitable for bulk installation in factory.

1, MYJG laser power supplies adopt zero-current half-bridge soft-switch circuit to ensure that the equipment has the following advantages: high efficiency, rapid response speed, matching CO2 laser tubes from various manufacturers.

2, Simple port control, applicable to high/low level signal. TTL level is able to control the on/off of the laser with an anomalistic protective switch to check water flow and ventilation.

3, Input analog signal (0~5V) or PWM signal to control the output power.

4, Open circuit protection function: the power can work for a short time in the state of open circuit while the case is grounded well---avoid damage to the power when the laser tube cracks.

5, Aging before delivery: Each power goes through 12 hours aging at 60 Celsius Degrees with full load, 500 times on/off check for 7 seconds.

III Terminals definition, indicators and power detect

Instructions for power test

In standby mode, press ‘test’ button, L indicator on, P indicator on, if Laser indicator on, but laser tube not lights, the laser tube fails. If laser tube lights, the laser power supply works normally; if Laser indicator off, the laser power supply fails.

IV Technical Parameters
