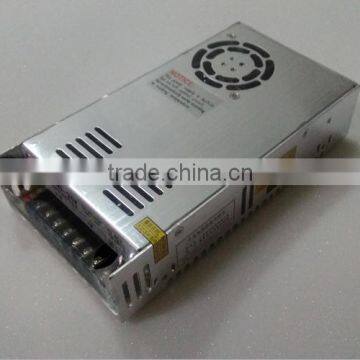

240W 24V 10A single output switch power supply for stepper motor driver of CO2 laser machine
USD $25 - $25
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- shenzhen dongguan guangzhou shanghai qingdao ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
350W 36V 10A single output switch power supply for stepper motor drivers of CO2 laser machine
-
120W 24V 5A single output switching mode power supply SMPS for the CO2 laser controller mainboard motherboard
-
500W 48V 10A single output switch power supply for servo step motor drivers of CO2 laser machine
-
600W 36V 16A single output switch power supply for 3 phase stepper motor driver of CO2 laser machine
-
600W 48V 12A single output switch mode power supply SMPS for servo step motor drivers of CO2 laser machine
-
150W 5V 3A 24V 5A dual output switching power supply for CO2 laser controller and red dot
Product Details
| Place of Origin | Shanghai, China | Brand Name | MWTZ | |
| Model Number | S-240-24 | Output Power | 201 - 300W | |
| Output Type | Single | Input Voltage | Other, AC110V and AC220V | |
| Output Voltage | 24V | Output Frequency | 50/60Hz | |
| Output Current | 10A |
Product Description
Application: for step motor drivers
Features:
AC input selected by switch
Protection: Short circuit/Over load/Over voltage
Forced air cooling by built-in DC fan
Fixed switching frequency at 60KHz
One year warranty
100% full load burn-in test
| Model | S-240-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| VOLTAGE TOLERANCE | ±1% | |
| RATED CURRENT | 10A | |
| CURRENT RANGE | 0-10A | |
| RATED POWER | 120W | |
| RIPPLE&NOISE | 120mvp-p | |
| DC VOLTAGE ADJ. RANGE | ±10% | |
| SETUP, RISE, HOLD TIME | 800ms, 20ms at full load | |
| INPUT | VOLTAGE RANGE | 90~132VAC/180~264 the switch choice, or 248~370VDC |
| AC CURRENT | 4.8A/115VAC 2.8A/230VAC | |
| EFFICIENCY (Typ.) | 88% | |
| INRUSH CURRENT | COLD START 45A/230VAC | |
| LEAKAGE CURRENT | <2.0mA/240VAC | |
| PROTECTION | OVERLOAD | 105~150% rated output power |
| Protection type: Fold back current limiting, recovers automatically after fault condition is removed. | ||
| ENVIRONMENT | WORKING HUMIDITY | -10~+60 Celsius degrees (Refer to output load derating curve) |
| STORAGE TEMP., HUMIDITY | -20 Celsius degrees ~+85%; 10~90% RH non-condensing | |
| VIBRATION | 10~500Hz, 2G 10min/1 cycle, 60min, each along X, Y, Z axes | |
| SAFETY | WITHSTAND VOLTAGE | I/P-OP: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
| ISOLATION RESISTANCE | I/P-OP, I/P-FG, O/P-FG: 100M Ohms/500VDC/25 Celsius degrees/70% RH | |
| STANDARD | SAFETY STANDARDS | UL60950-1 |
| EMC STANDARDS | EN55022, CLASSA | |
| OTHERS | WEIGHT | 215*115*50mm (L*W*H) |
| PACKING | 1.5Kg | |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 Celsius degrees of ambient temperature. 2. Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ&47μ parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. | |
