Home > Products > co2 laser power supply > 350W 36V 10A single output switch power supply for stepper motor drivers of CO2 laser machine

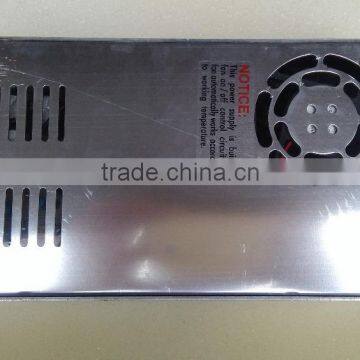

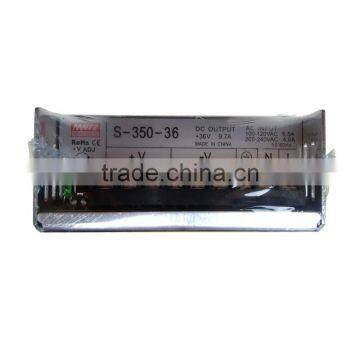

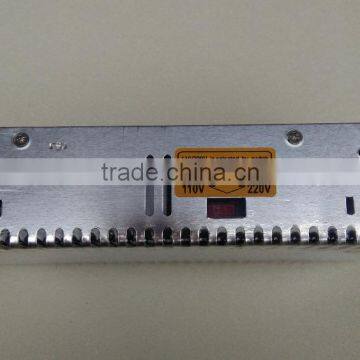

350W 36V 10A single output switch power supply for stepper motor drivers of CO2 laser machine
US$ 25 - 25
/ Piece
1 Piece(Min. Order)
- shenzhen dongguan guangzhou shanghai qingdao ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
120W 24V 5A single output switching mode power supply SMPS for the CO2 laser controller mainboard motherboard
-
500W 48V 10A single output switch power supply for servo step motor drivers of CO2 laser machine
-
600W 36V 16A single output switch power supply for 3 phase stepper motor driver of CO2 laser machine
-
600W 48V 12A single output switch mode power supply SMPS for servo step motor drivers of CO2 laser machine
-
150W 5V 3A 24V 5A dual output switching power supply for CO2 laser controller and red dot
-
25W 24V 1A DC switching power supply for dc water pump of CW3000 chiller of CO2 laser engraving and cutting machine
Product Details
| Place of Origin | Shanghai, China | Brand Name | MWTZ | |
| Model Number | S-350-36 | Output Power | 301 - 400W | |
| Output Type | Single | Input Voltage | Other, AC110V and AC220V | |
| Output Voltage | 36V | Output Frequency | 50/60Hz | |
| Output Current | 10A |
Product Description
Application: for step motor drivers
Features:
High efficiency, high reliability and low cost For AC power supply input global 100% full load and machine test
Protection characteristics: short circuit/overload/pressure
PWM control and adjustment
Built-in dc electric fan forced air cooling
Built-in fan switch control
Working frequency 25 KHz
1 year warranty
Size: 215*115*50mm (L*W*H)
| Model | S-350-36 | |
| OUTPUT | DC VOLTAGE | 36V |
| VOLTAGE TOLERANCE | ±1% | |
| RATED CURRENT | 9.7A | |
| CURRENT RANGE | 0-10A | |
| RATED POWER | 350W | |
| RIPPLE&NOISE | 200mvp-p | |
| DC VOLTAGE ADJ. RANGE | ±10% | |
| SETUP, RISE, HOLD TIME | 200ms, 20ms at full load | |
| INPUT | VOLTAGE RANGE | 90~132VAC/180~264 the switch choice, or 254~370VDC |
| AC CURRENT | 6.5A/115VAC 4A/230VAC | |
| EFFICIENCY (Typ.) | 88% | |
| INRUSH CURRENT | COLD START 50A/115VAC 50A/230V | |
| LEAKAGE CURRENT | <35mA/240VAC | |
| PROTECTION | OVERLOAD | 105~150% rated output power |
| Protection type: Fold back current limiting, recovers automatically after fault condition is removed. | ||
| ENVIRONMENT | WORKING HUMIDITY | -10~+60 Celsius degrees (Refer to output load derating curve) |
| STORAGE TEMP., HUMIDITY | -20 Celsius degrees ~+85%; 10~90% RH non-condensing | |
| VIBRATION | 10~500Hz, 2G 10min/1 cycle, 60min, each along X, Y, Z axes | |
| SAFETY | WITHSTAND VOLTAGE | I/P-OP: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
| ISOLATION RESISTANCE | I/P-OP, I/P-FG, O/P-FG: 100M Ohms/500VDC/25 Celsius degrees/70% RH | |
| STANDARD | SAFETY STANDARDS | UL60950-1 |
| EMC STANDARDS | EN55022, CLASSA | |
| OTHERS | WEIGHT | 215*115*50mm (L*W*H) |
| PACKING | 1.5Kg | |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 Celsius degrees of ambient temperature. 2. Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ&47μ parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. | |
