Product Details
Place of Origin: | Guangdong, China | Brand Name: | szret | Model Number: | 120w |
Product Description
co2 Laser Power Supply 120w
for laser tube 120w 130w
Warranty: 1 year
10,000 hours life span
1.high effeciency
tection system
3.good performance
4.Long service time
Main Feaures of 120w laser power supply
1) Good compatibility: It can be applicable to 150w 130w 120w 100w laser tube.
2) Fast response speed and effect.
3) Dramatically lengthen the life of laser.
4) Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.
5) Easy control of laser power: Both 0~5V analog signal and PWM signal can control the laser power.
6) The power supply has open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
7) The power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser.
8) The power supply adds a new function, that is timely scene judging which part is damaged, laser tube or laser power.
9) Application: acrylic sculpture, cut; fabric sculpture, cut; rubber sheet sculpture, cut, etc.
Specification of 120w laser power supply
Input Voltage | Input Voltage | AC220V or AC110V | |
| AC Frequency | 47-440Hz | |
| Cold surge current | ≤60A(AC220V input) | ≤30A(AC110V input) |
| Leak current | ≤0.7mA(AC220 input) | ≤0.4mA(AC220V input |
Output | Max output Voltage | DC 50KV | |
| Max Output current | DC 38mA | |
Efficiency | when≤92%load down | ||
Time no-failure | ≤10000hours | ||
Response speed | ≤1ms(the time from output of switch signal to 90%of initial setting current) | ||
Control port | TLL electricity level switch control, valid electricity has high/low level choices | ||
Volage-resisting | Input-Output ,input-machine hull: 1500V 10mA 60s AC output cathode and machine hull connection | ||
Protection | Can be used an opening way in a short time(request the outer shell be good to connect the ground avoid arcing between anode and machine hull connection in the machine) | ||
Usage environment | Work temperature:(-10-40)°C.Relative humidity:≤90% | ||
Cooling Type | The compulsive air cooling | ||
size | L×W×H=325×240×97(mm) | ||
Weight | 6kg |
`
Packing
All Laser power supply will be packed in Wood case or Carton box avoiding to damaged during the shipping and we will make sure the best quality products for you .
Packaging Detail:carton box with bubble
150w: 325*240*97cm
Shipping Policy
Generally, we deliver the parcel in 3~5 days after your payment online , but We will deliver the parcel by other Express in case quoted Express can’t reach your shipping address.If you want us to do drop ship to your clients ,please leave messages or write to us .We will ship neutral package according your requirement .
Payment Policy
We accept Western Union, Money gram, T/T, credit card, paypal etc.

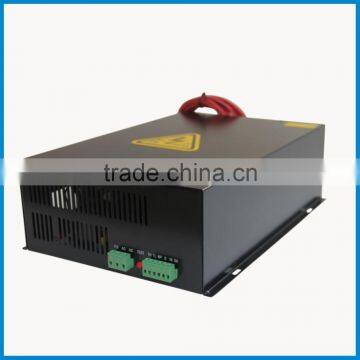

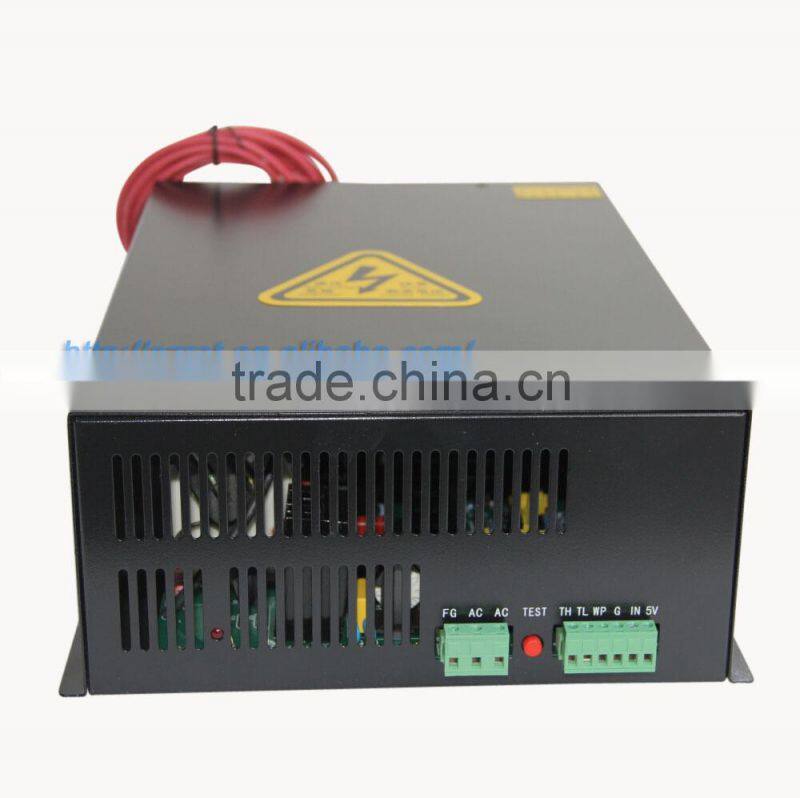

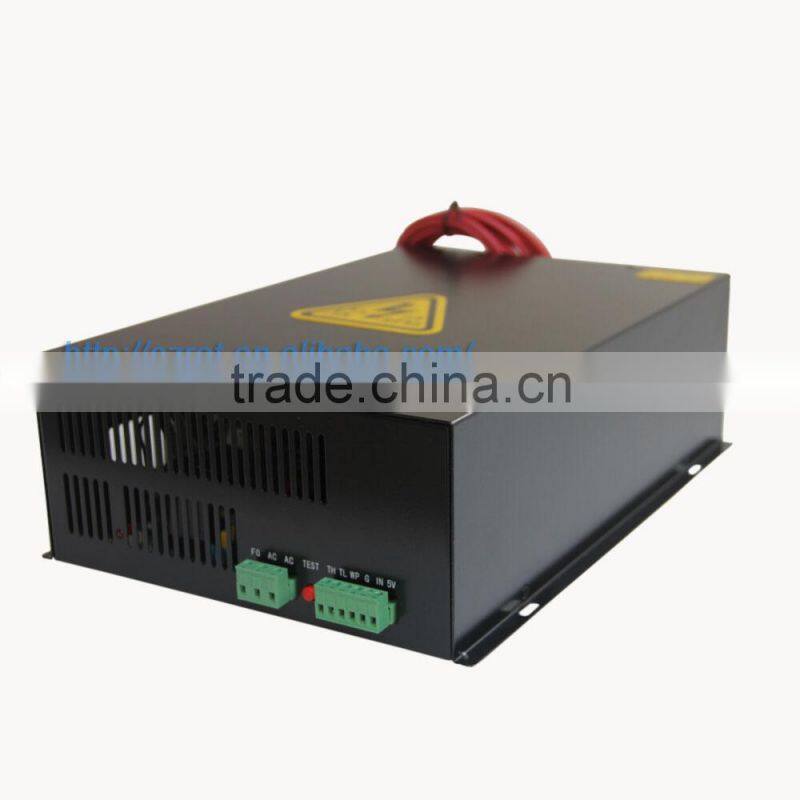

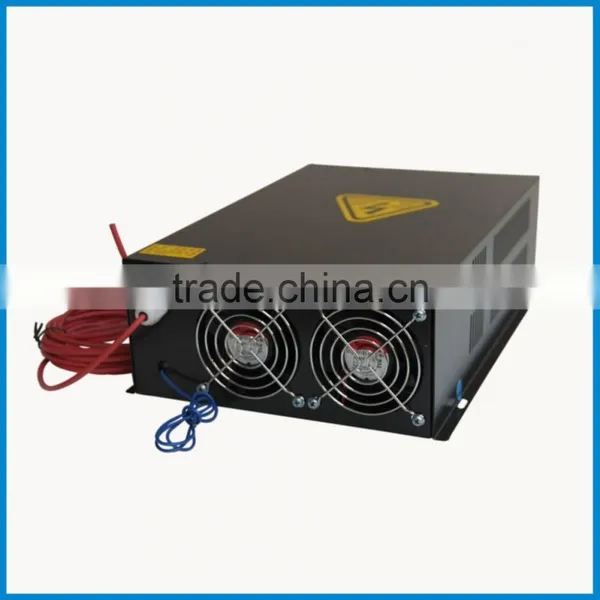

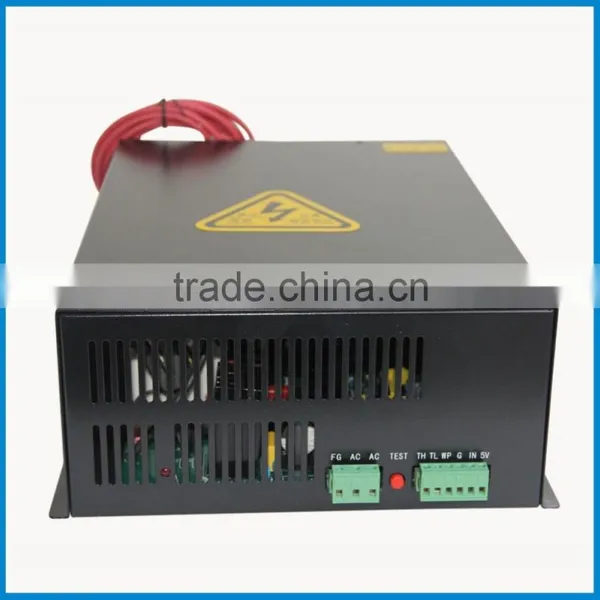

Photos of 120w laser power supply
