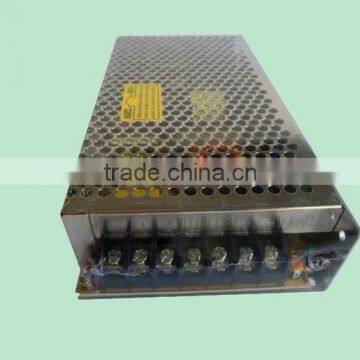

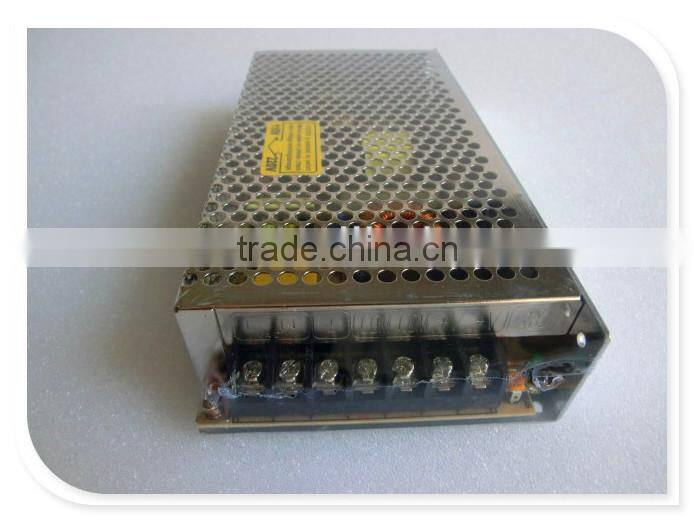

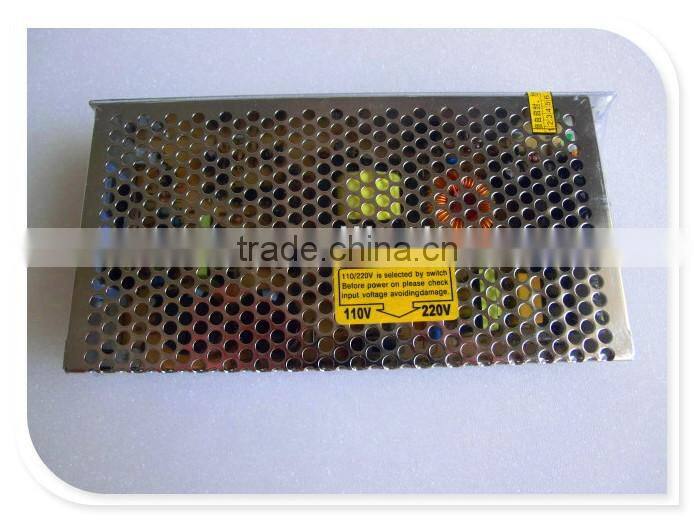

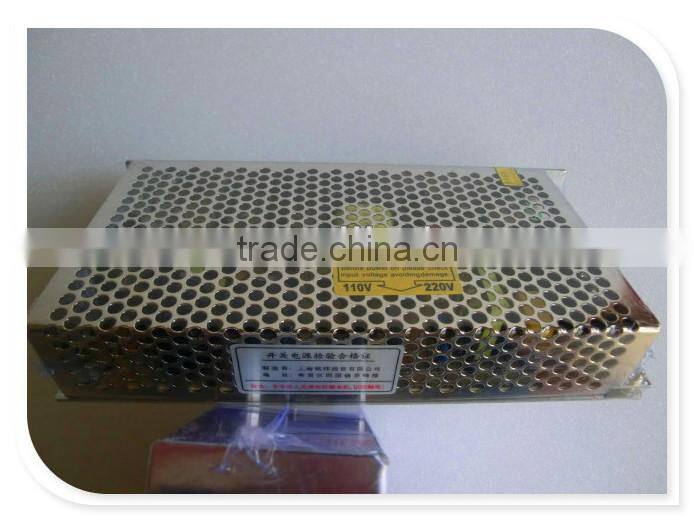

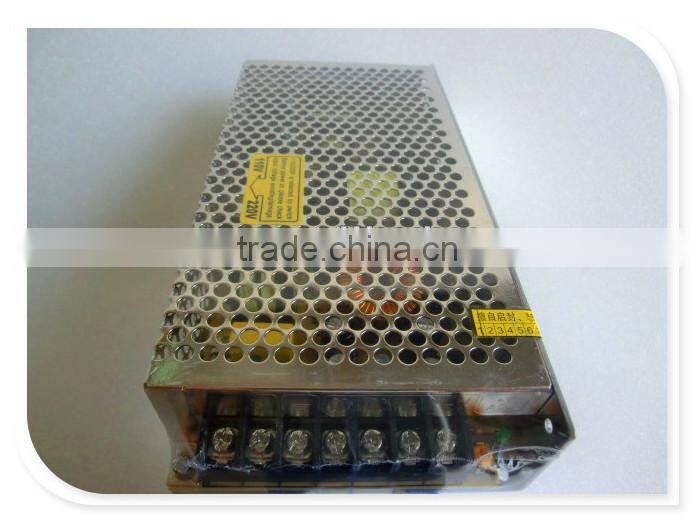

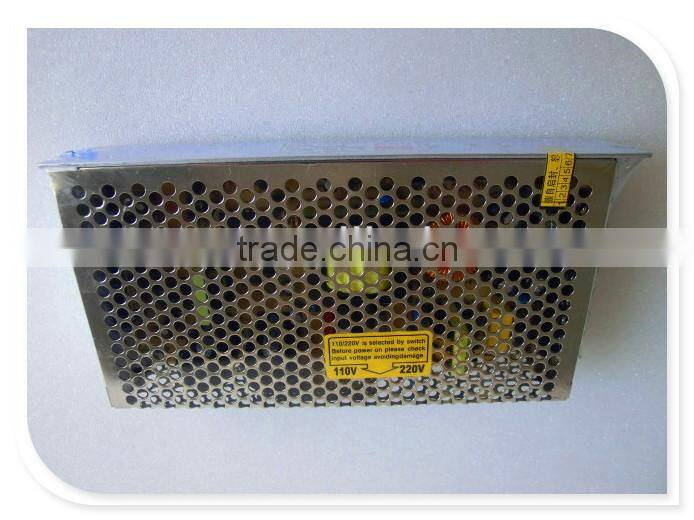

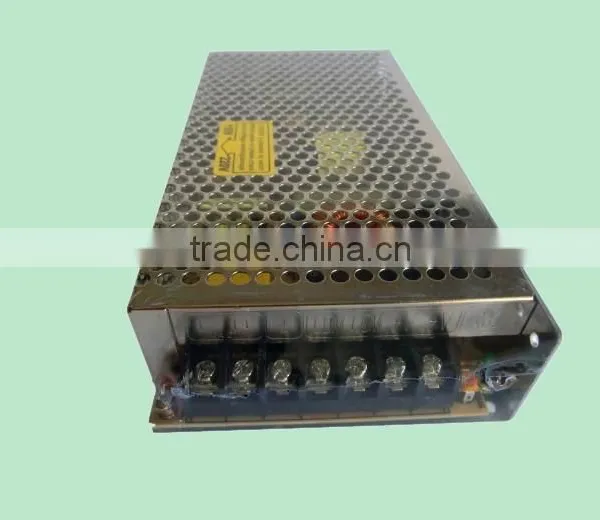

Co2 Laser Machine Main Board and Red Pointer 24v Switching Power Supply

Name: Co2 Laser Machine Main Board and Red Pointer 24v Switching Power Supply
Brand: SZRET
SKU: 143300460
Availability: InStock

US$ 25 - 35 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SZRET

Model Number:

24v 5a

Shenzhen Reliable Electromechanical Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen guangzhou dongguan shanghai qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SZRET

Model Number 24v 5a

high quality input 110v/220v ac to 24v switch power supply

for main board and red pointer

24v dc power supply

1. for main board and red pointer

2.input voltage 220v/110v

3.output voltage 24v

4. output current:5 A

1.Technical Parameters of 24v dc power supply

Model	Szret-24v 5a
Input	Input Voltage(V)	100VAC-240-VAC
	Input Current (A)	2.5A Max
	Frequency (Hz)	50Hz–60Hz
	Efficiency	74% Typ(230VACFull Load)
	Inrush current(A)	Cold star, <40A/230VAC
	Leakage current(mA)	<3mA/240VAC
Output	Output Voltage(V)	+24Vdc
	Voltage Regulation	3%
	Output Current(A)	5A
	Current Range (A)	0~5A
	Rated Power(W)	120W
	Start time, hold-up time(ms)	Ton≤1000ms,Td≥20ms @230Vac Full Load
	Rise time(ms)	Typ:20ms @230Vac Full Load
	Ripple/Noise(mVp-p)	200mVp-p
Environment	working Temperature (°C)	0°C - +50°C(refer derating curve)
	Storage Temperature(°C)	‘-20°C - +80°C
	Humidity(%)	20% - 90% RH non condensing
Safety/ EMC	Withstand voltage(VAC)	I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min
	Safety Standard	EN/UL60950-1,GB4943
	EMC Standard	EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3
Protection	Over voltage Protection	>115%-135% Rated output voltage
	Over load Protection	>105%-150% ,Auto recovery
	Short circuit Protection	Latched
	Over Temperature Protection	N/A
Others	MTBF	≥230K hrs 25°C
	Dimension LWH(mm)	1599738mm
	Weight g/pcs	590g/pcs
