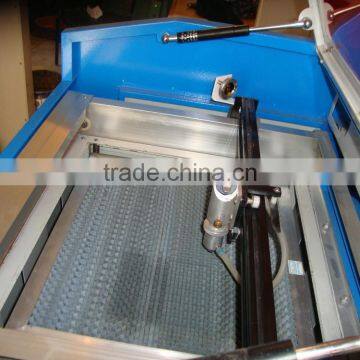

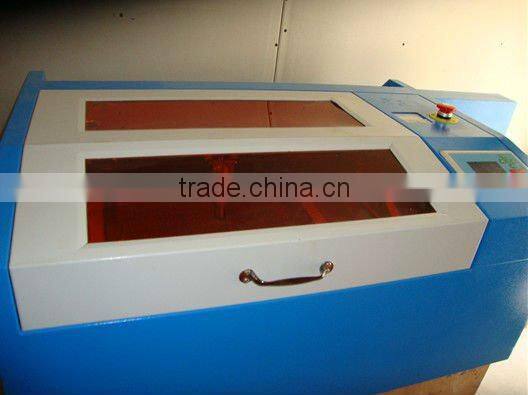

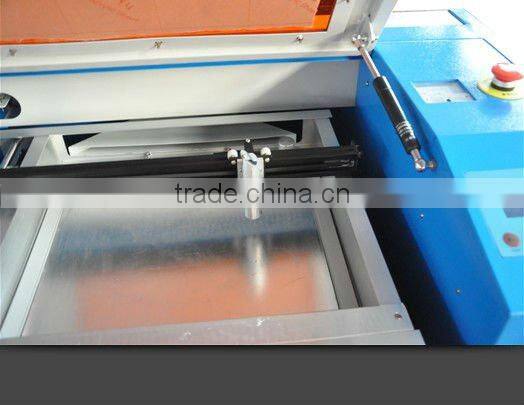

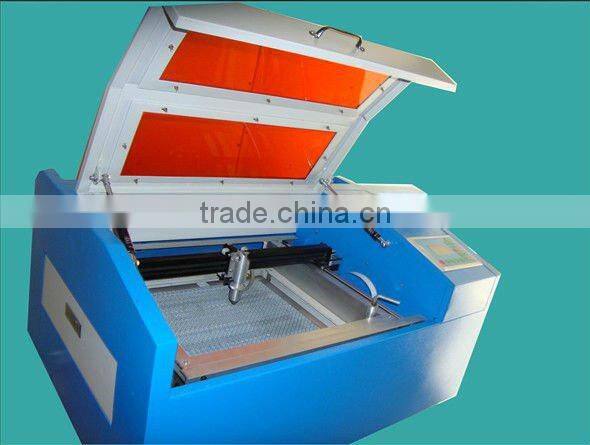

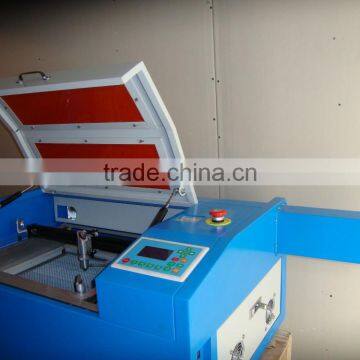

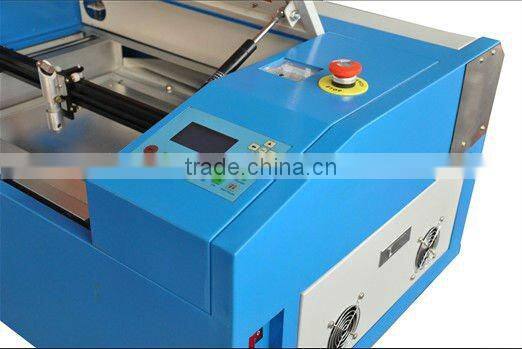

Help CenterMini 400*300 mm Working Area of Co2 Laser Machine
Related Products
-
Acrylic Laser Engraving Cutting Machine Best Price 4030 Working AreaUS$ 1,500 - 2,000MOQ: 1 Set -
2013 Hot Sell Co2 Laser Engraving and Cutting MachineUS$ 6,800 - 7,800MOQ: 1 Set
-
Working Area 1300*1800mm Co2 Laser Engraving & Cutting MachineUS$ 6,800 - 7,800MOQ: 1 Set
-
Szret Acrylic and Wooden Cutting MachineUS$ 6,800 - 7,800MOQ: 1 Set
-
1390 80w Photo Engraving Co2 Laser Engraving and Cutting Machine for WoodUS$ 2,400 - 7,000MOQ: 1 Set
Specifications
1Work area 30*40cm2Laser Power 40w
3Driveraastep motor and driver
4ControllerEnglish stand alone ,usb port,
1.Applicable materials
Leather, cloth, wool, fur, acrylic, Plexiglas, wooden board, plastic, resin, stone, glass, marble, granite and other non-materials.
2.Applicable industry
:processing industries of lager-scale engraving and cutting, such as garment, leather, clipping, cutting of template, package and printing, advertisement decoration, building upholster, art gift, computer embroidery, paper prod ct, acrylic product ,middle density board ect. non-metal sheet precision cutting and other industries.
3.Technical parameters
Laser power : | 40W(optional) |

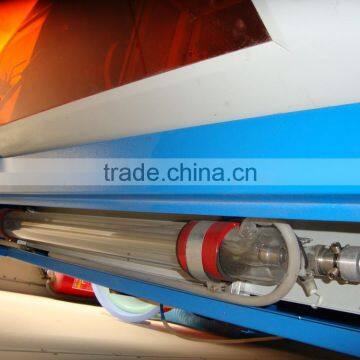

Laser type: | Hermetic CO2 glass tube |
Power supply: | AC220±10%50 HZ |
Working area: | 300mmx400mm |
Max moving speed: | 1500mm/s |
Worktable: | Honey comb worktable |
Locating precision: | <0.01mm |
Min shaping character:
| Character:3x3mm,letter:2x2mm |
Operating temperature: | 5°C-35°C |
Resolution ratio: | 4500dpi |
Control configuration: | DSP |
Data transfer interface: | USB(offline) |
System environment: | WINDOWS 2000/WINDOWS XP |
Cooling way: | Water cooling and protection system |
Graphic format supported: | CorelDraw, Photoshop, AutoCAD canidentify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) |
Compatible software | CorelDraw,AutoCAD |
Cutting thickness | 0-20mm(depends on different material) |
Color separation | Separation of cutting up to 256 colors |
Sloping engraving | Yes, slope can be designed discretionarily |
Cuts off the water supply the protection | yes |
Machine dimension | 122x63x41cm |
weight | 40kg |
packing | Plywood case |
Optional parts | High-grade cooling system imported focus lens double-head cylinder rotary attachment irregular rotary attachment servo motor/red dot |
Work area: 30*40cm
Laser Power: 40w
Driver:step motor and driver
Controller:English stand alone ,usb port,
Application: cut and engrave
Engrave speed: 0-60000mm/minute
Cut speed:0-10000mm/minute
Software: cad, core draw , laser work.
Spare parts:up down table, industrial chiller, rotary attachment for glass or round things engrave.
Machine size: 122*63*41cm 40kg
Pack size:132*72*58cm 70kg
