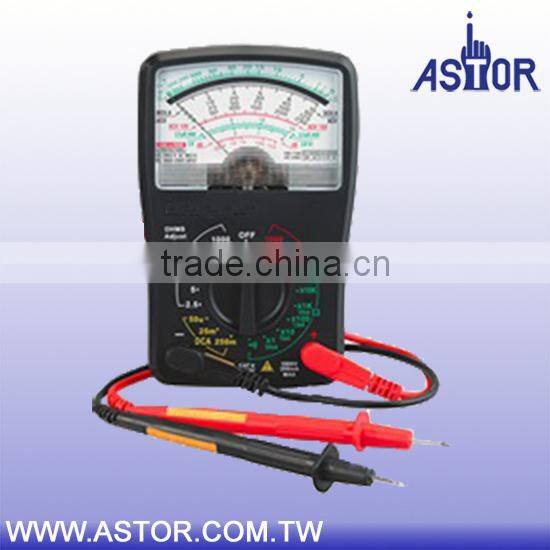

Best 19-RANGE cUL APPROVAL ANALOG MULTIMETER
| This rugged, 19-range multitester is ideal for your toolbox or workbench. Measure AC and DC voltages, DC current, resistance and decibels. Use this analog multimeter to conduct continuity and ground fault tests. The analog display is easy to read and the tester is resistant to mechanical shock. Includes removable test leads and zero adjustment screw. Measures AC and DC voltages, DC current, resistance and decibels AC voltage ranges: 10V, 50V, 250V, 1000V DC voltage ranges: 2.5V, 5V, 25V, 125V, 500V, 1000V DC current ranges: 250 mA,25 mA 50 μA (100 mV) Resistance ranges: 2k, 20k, 200k, 2M, 20M (Center Scale 20 ohm) Decibel range: –20 to +6 dB |
* * * Other Meters Available * * *
Digital Multimeter
| Function | Item. 400308A | Item. 400308B | Item. 400308C |
| Count | 1999 | 1999 | 1999 |
| Backlight | N/A | Yes | Yes |
| Low Battery Indicator | Yes | Yes | Yes |
| Overload indication | 1 | 1 | OL |
| Auto/Manual | Manual | Manual | Auto |
| Auto power off | N/A | N/A | Yes |
| Data hold | Yes | Yes | N/A |
| ACV |
200/500V ±(2.5%+5) |
200/500V ±(2.5%+5) |
500V ±(0.8%+5) |
| DCV |
200m/2/20/200/500V ±(1.2%+2) |
200m/2/20/200/500V ±(1.2%+2) |
500V ±(0.5%+5) |
| ACA | N/A | N/A |
200μ/200mA ±(1.5%+2) |
| DCA |
200μ/200mA ±(1.5%+2) |
200μ/2m/20m/200mA ±(1.5%+2) |
200μ/200mA ±(1.5%+2) |
| OHM |
200/2K/200K/2000KΩ ±(1.5%+2) |
200/2K/20K/200K/2000KΩ ±(1.5%+2) |
20MΩ <1MΩ ±(0.8%+5) >1MΩ ±(2%+5) |
| Continuity | 50 ± 25 Ω | 50 ± 25 Ω | <50 Ω |
| Diode test | Yes | Yes | Yes |
| Battery test | 1.5/9/12V | N/A | N/A |
| Temperature | N/A | N/A |
-40 ~ 752oF / -40 ~ 400oC ≤0oC (32oF ) ±(8%+8d) > 0oC (32oF ) ±(1.2%+7d) >100oC (212oF) ±(3%+3d) |
| Size: (L x W x H mm) | 140 x 85 x 34 | 140 x 85 x 34 | 140 x 85 x 34 |
| Test Leads | 20AWG | 20AWG | 20AWG |
| Frequency Response | 50/60Hz | 50/60Hz | 50/60Hz |
| Working temperature |
0oC ~ 50oF 32oC ~ 122oF |
0oC ~ 50oF 32oC ~ 122oF |
0oC ~ 50oF 32oC ~ 122oF |
| Battery life | 100 hours | 100 hours | 200 hours |
Digital Pocket Multimeter
| Function | Item. 400306A | Item. 400306B | Item. 400306C |
| Manual or Auto | Auto | Manual | Auto/Manual |
| Display Count | 2000 | 2000 | 2000 |
| DC Volts |
Auto Max 600V ± (0.5%+5dgt) |
20V/200V ± (1.0%+5dgt) |
Auto/Manual Max 600V (1.5%+2dgt) |
| AC Volts |
Auto Max 600V ± (0.8%+5dgt) |
200V/500V ± (2.0%+10dgt) |
Auto/Manual Max 600V (2.3%+5dgt) |
| Resistance (Ohms) |
Auto Max 20MΩ ± (0.8%+5dgt) < 1MΩ ± (2.0%+5dgt) > 1MΩ |
20MΩ/20KΩ/200Ω ± (1.5%+5dgt) |
Auto/Manual Max 34MΩ ± (2.0%+5dgt) < 340KΩ ± (6.0%+4dgt) < 3.4MΩ ± (10.0%+5dgt) < 34MΩ |
| Diode test | Yes | Yes | Yes |
| Continuity (Audible) | Yes | Yes | Yes |
| DC Amps |
2000μA / 200mA ± (1.8%+5dgt) |
N/A | N/A |
| AC Amps |
2000μA / 200mA ± (1.8%+5dgt) |
N/A | N/A |
| Bettery Test | N/A | 1.5V | N/A |
|
Input Impedance (DCV Setting) |
10M | 1M | 10M |
| Auto Off | Yes | N/A | Yes |
| Data Hold | Yes | Yes | Yes |
| Max Data Hold | Yes | N/A | N/A |
| Bar Graph | N/A | N/A | Yes |
Digital Clamp Multimeter
| Function | Item. 400309A | Item. 400309B | Item. 400309C |
| Count | 1999 | 4000 | 4000 |
| Analog Bar Graph | N/A | Yes | Yes |
| Backlight | Yes | Yes | Yes |
| Low battery indicator | Yes | Yes | Yes |
| Overload indication | Yes | Yes | Yes |
| True RMS measurement | N/A | N/A | Yes |
| Auto/Manual | Auto | Auto/Manual | Auto/Manual |
| Auto power off | 15 min | 15 min | 15 min |
| Data hold | Yes | Yes | Yes |
| Range | N/A | Yes | Yes |
| ΔZERO | N/A | N/A | Yes |
| Max/Min | Max | Max/Min | N/A |
| ACV | 600V ±(1.0%+5) | 600V ±(1.0%+5) | 600V ±(1.0%+5) |
| DCV | 600V ±(0.8%+5) | 600V ±(0.8%+5) | 600V ±(0.8%+5) |
| ACA | 600A ±(2.0%+5) | 400 or 600A ±(2.0%+5) | 400 or 600A ±(2.0%+5) |
| DCA | N/A | N/A | 400A ±(2.0%+5) |
| OHM | 19.99MΩ ±(2.0%+5) | 40.00 MΩ ±(2.0%+5) | 40.00 MΩ ±(2.0%+5) |
| Continuity (audible) | ≤50Ω | ≤50Ω | ≤50Ω |
| Diode test | Yes | Yes | Yes |
| Capacitance | N/A | N/A |
10.00nF~4000μF ±(4.0%+5) |
| Frequency counter |
10Hz~1999Hz ± 2.0% |
10.00Hz ~ 9.999MHz ± 2.0% |
10.00Hz ~ 9.999MHz ± 2.0% |
| Temperature | N/A |
752oF / 400oC ±(3.0%+5) |
752oF / 400oC ±(3.0%+5) |
| Withstand Voltage | 6000V AC | 6000V AC | 6000V AC |
Express Service
UPS, Fedex, DHL, TNT, EMS
Standard Air Freight Standard Ocean Freight
1. What is your Payment Terms?
A: For first few trades: 30% Down payment ; balance T/T before shipment
For trades after one year: 100% T/T before shipment
For trades after 3 years: Depending on the payment record, we can offer net 15 or net 30 Days
2. What is your delivery time?
A: Normally it's 30 ~ 45 Days. During the busy months it will be 60 Days. Please check with us.
3. What is your MOQ requirement?
A: A shipment invoice over USD$5,000.00 to avoid a shipping & handing charge of USD$150.00.
To use your company color, the MOQ is normally above 1,000 or 2,000 pcs. Please check with us.
4. Do you accpet placing LOGO on products?
A: Yes, there will be a MOQ requirement
5. Do you offer exclusivity ?
A: Depending on the market you are in, pleaes check with us
Astor Industrial Corp. founded in 1979 specialized in Hand Tools, Garden Tools, and Electrical Items. Astor is also active in a variety of industries providing OEM solutions to our customers. Astor have 35 years of experience to provide Sourcing Services and Engineering Solutions which our engineers can assist you on your new product development.
With facilities in Taiwan, Hong Kong, and China, and an experienced staff versed in Western and Asian culture, Astor stands ready to serve your needs. Astor will help your company bypass the language barriers and time zone differences to perform contract negotiations, on-site inspections, and arrange shipment for your products.
Astor Industrial Corp. offers a complete program according to your demands. We hope to work with you in the very near future.
Welcome to Join US!
Feel free to contact us at your convenience
| Item No. | 5-400311 |
| Sample time | 5~10days |
| Sample charge | Yes |
| Sample freight cost | Freight collect |
