Specifications
1.ISO&CE certificate.2.Uniform particle size.
3.Toxin-free, easy to use and Eco-friendly.
4.High wear resistance jaw plate.
GUANGMING lab jaw crusher is used for crushing high hardness ores or other solid material for component analysis continuously or intermittently. The kind of jaw crusher is especially suitable for sample preparation work in the laboratory of industrials of nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
2. Application examples:
Mining and Metallurgy: Coal, minerals, coke, vanadium, titanium slag, carbonized tungsten, niobium and vanadium chromium manganese chromium.
Chemistry: raw materials.
Non-metal minerals: alumina, cement clinker, quartz.
Geology and mineral: all kinds of rock.
Glass: frit, raw material, glass.
Ceramic: talc, refractory mud, ceramic, sintering porcelain.
3.Guangming Lab Jaw Crusher Advantages:
1. Our lab jaw crusher adopting special technology and material, it especially suitable of crushing high strength material.
2. Jaw plate of our lab jaw crusher is made of high strength material which has good abrasive resistance and will not pollute the sample.
3. Our lab jaw crusher has the advantages such as: even discharging size, smooth running, easy adjustment and long service life.
4. The frame of our la jaw crusher is made of the cast steel after heating treatment.
5. Removable shell of our lab jaw crusher which is convenient for daily maintenance and inspection of the machine.
6. Mechanical-electrical integrated controlling and our lab crusher is easy to operate.
7. Full-sealed design of our jaw crusher and equipped with dust extracting outlet which meets the environment requirements.
8. Total electro-static coating surface of our lab jaw crusher which makes good appearance and easy to clean.
9. Our jaw crusher can work normally on the flat ground without fixing any base.
3. Guangming Lab Jaw Crusher Technical Parameters:
|
Hot Product 2013 Small Laboratory Stone Jaw Crushing Machine Made in China For Sale | ||||
Model No. |
GM/SP-100×60H |
GM/SP-100×100H |
GM/EP-150×125H |
GM/EP-250×150H |
Feeding entrance size(mm) |
100×60 |
100x100 |
150×125 |
250×150 |
Feeding size(mm) |
≤48 |
≤80 |
≤100 |
≤200 |
Discharging size (mm) |
0.2~15 |
0.2~20 |
6~38 |
10~40 |
Handling capacity(kg/h) |
120~720 |
200~1030 |
500~1200 |
1000~3000 |
Working power supply (V) |
380 |
380 |
380 |
380 |
Dimension (mm) |
570×1000×750 |
550×1000×850 |
570×1140×850 |
800×670×1050 |
Motor power(kw) |
2.2 |
3 |
5.5 | 7.5 |
Total weight (kg) |
330 |
400 | 585 | 950 |

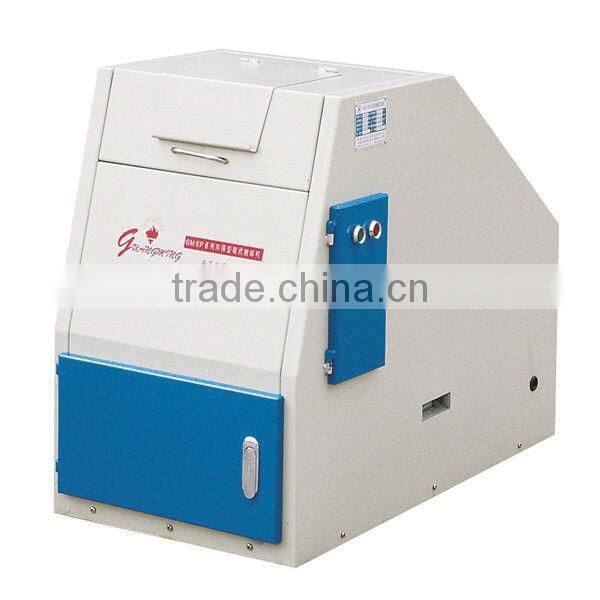

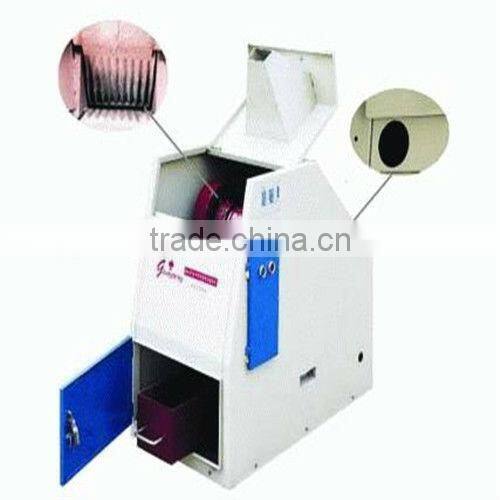

4. Guangming Lab Jaw Crusher Details:
5. About Our Company:
GUANGMING specialize in lab sample preparatiion and lab sample analysis equipment more than 30 years. our products are including collector, disc mill,hammer mill, jaw crusher, roll crusher, dividing machine, vibrating sieving machine, rotary divider,sieve shaker, also integrated sample preparation system and physical properties testing series and analysis series ect. Good quality and well service together with high precision won many many customers for us. Like SGS in domestic and abroad are using our equipment. GUANGMING warmly glad to support all of our customers with our speciality.

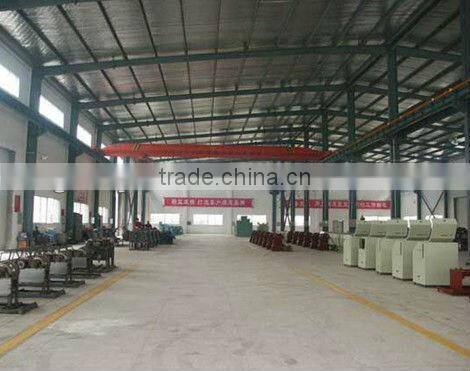

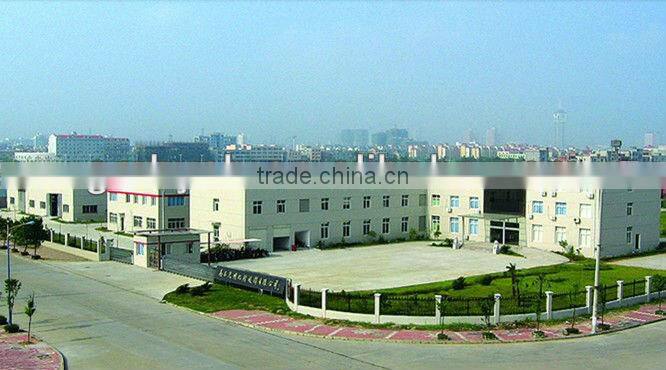

Guangming Factory Overview

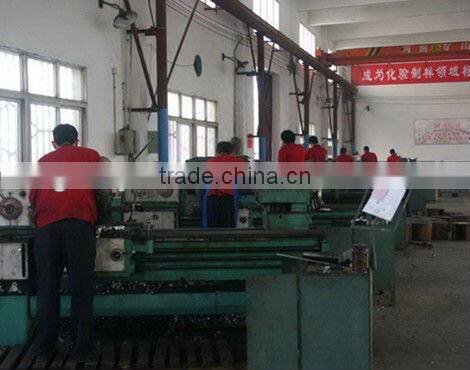

One Group Of Guangming Factory

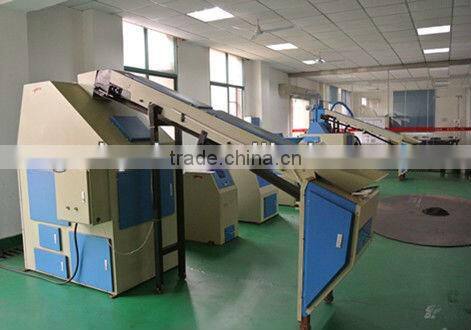

Guangming Laborotory
Guangming Assembly Group

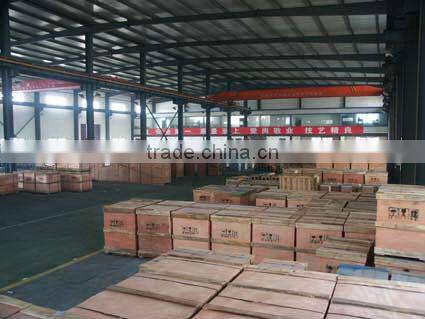

Guangming Warehouse
SGS Visiting Our Factory
American Customer Visiting Our Laboratory
