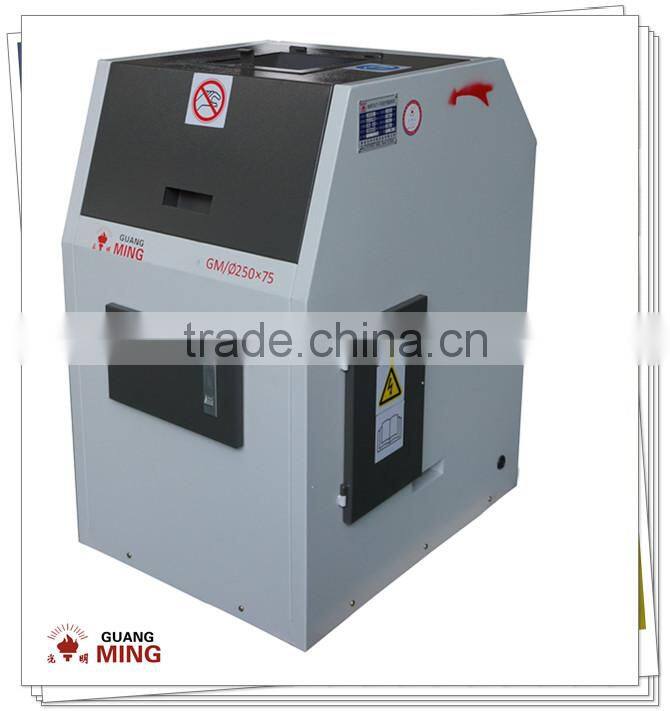

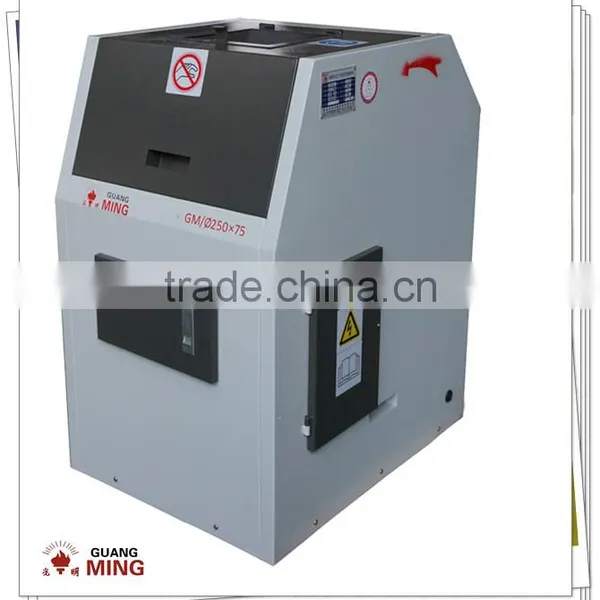

Small size roll crushers, lab roller crusher manufacturer

Specifications

Roll crushers factory
1 Factory mass production
2 Portable roll crushers
3 No blocking
4 Quick speed, even discharge size





Small size roll crushers, lab roller crusher manufacturer





1. Typical Application:

The lab roller crusher is used for crushing middle hardness ores or other solid material for component analysis continuously or intermittently.



Especially Suitable For:

The unit is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.



2. Advantages:

1. It shows good performance to the material with the moisture not exceeding 15%.

2. Even discharging size without blocking up.

3. All moving parts have the safeguards which meets the requirements of work safety.

4. Full-sealed design and equipped with dust extracting outlet which meets the environment requirements.

5. Mechanical-electrical integrated controlling and it is easy to operate.

6. Total electro-static coating surface which makes good appearance and easy to clean.

7. Removable shell which is convenient for daily maintenance and inspection of the machine.

8. It can work normally on the flat ground without fixing any base.

3. Technical Parameter:

Environment friendly roll crusher
Model No.	GM/Φ250×75	GM/Φ250×125		GM/Φ250×150	GM/Φ300×300
Feeding entrance size(mm)	75×13	125×13		150×13	300×16
Feeding size(mm)	≤13	≤13	≤13		≤16
Discharging size (mm)	0.5-3(Adjustable)	0.5-3(Adjustable)	0.5-3(Adjustable)		1-3(Adjustable)
Handling capacity(kg)	300	450		560	2000
Motor power(kw)	3	4		4	7.5
Working power supply (V)	380	380	380		380
Dimension (mm)	1140×620×740	1140×680×740		1140×700×740	1350×870×820
Total weight (kg)	286	340		350	520





4.  FAQ



1. Roll material: Alloy

2. Roll size: 250x75mm

3. Roll space adjustment: manual

4. Suitable size: max 13mm

5. Suitable material: coal, stone, medium hardness mineral

6. Packing ways: plywood case

7. Power supply of the roll crusher: (for export) we would allocate the suitable motor and electric parts based on the local power supply.

8. Delivery time: within 10 days if the machine is in stock, if not, 15-35 days.
