Small Laboratory Stone Crusher in Gold Milling Equipmenrt For Sale

Small Laboratory Stone Crusher in Gold Milling Equipmenrt For Sale photo-1
US$ 1 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Jaw Crusher
Application:
used for crushing high hardness ores or other solid material
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Jaw Crusher
Application used for crushing high hardness ores or other solid material
Motor Type AC Motor
Power(W) 11kw
Capacity(t/h) 1000-3000 kg/h
Place of Origin Jiangxi, China
Brand Name Guangming
Model Number GM/EP-250*150H
Dimension(L*W*H) 800*670*1050
Weight 950kg
Certification CE&ISO certificate
Warranty 12 months
After-sales Service Provided Overseas service center available

Specifications

1.ISO&CE certificate.
2.Uniform particle size.
3.Toxin-free, easy to use and Eco-friendly.
4.High wear resistance jaw plate.

Small Laboratory Stone Crusher in Gold Milling Equipmenrt For Sale

1. Guangming Lab Jaw Crusher Typical Applications:


GUANGMING lab jaw crusher is used for crushing high hardness ores or other solid material for component analysis continuously or intermittently. The kind of jaw crusher is especially suitable for sample preparation work in the laboratory of industrials of nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.





2. Application examples:



Mining and Metallurgy: Coal, minerals, coke, vanadium, titanium slag, carbonized tungsten, niobium and vanadium chromium manganese chromium.



Chemistry: raw materials.



Non-metal minerals: alumina, cement clinker, quartz.



Geology and mineral: all kinds of rock.



Glass: frit, raw material, glass.



Ceramic: talc, refractory mud, ceramic, sintering porcelain.





3.Guangming Lab Jaw Crusher Advantages:



1. Our lab jaw crusher adopting special technology and material, it especially suitable of crushing high strength  material.

2. Jaw plate of our lab jaw crusher is made of high strength material which has good abrasive resistance and will not pollute the sample.

3. Our lab jaw crusher has the advantages such as: even discharging size, smooth running, easy adjustment and long service life.

4. The frame of our la jaw crusher is made of the cast steel after heating treatment.

5. Removable shell of our lab jaw crusher which is convenient for daily maintenance and inspection of the machine.

6. Mechanical-electrical integrated controlling and our lab crusher is easy to operate.

7. Full-sealed design of our jaw crusher and equipped with dust extracting outlet which meets the environment requirements.

8. Total electro-static coating surface of our lab jaw crusher which makes good appearance and easy to clean.

9. Our jaw crusher can work normally on the flat ground without fixing any base.




3. Guangming Lab Jaw Crusher Technical Parameters:



Guangming High Strength Jaw Crusher Techinical Paeameter:



Model No.  GM/EP-100x60H  GM/SP-100x100H GM/EP-150x125H  GM/EP-250x150H
Feeding entrance size (mm)  100x60  100x100  150x125 250X150
Feeding size (mm)   ≤ 48   ≤ 80 ≤ 100 ≤200
Discharging size (mm)  0.2-15  0.2-20  6-38 10-40
Handing capacity (kg/h)  120-720  200-1030  500-1200 1000-3000
Working power supply (v)  380  380  380 380
Dimension (mm)  570x1000x750  570x1000x850  570x1140x985 800x670x1050
Motor power (kw)  2.2  3  5.5 11
Total weight (kg)  330  400  585 950

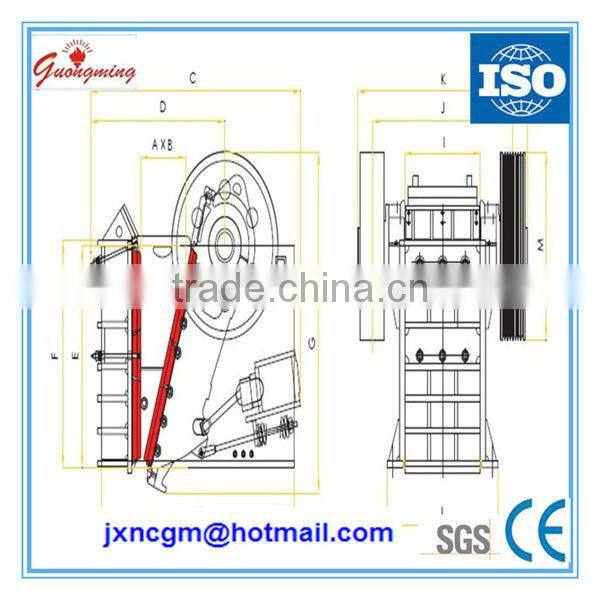

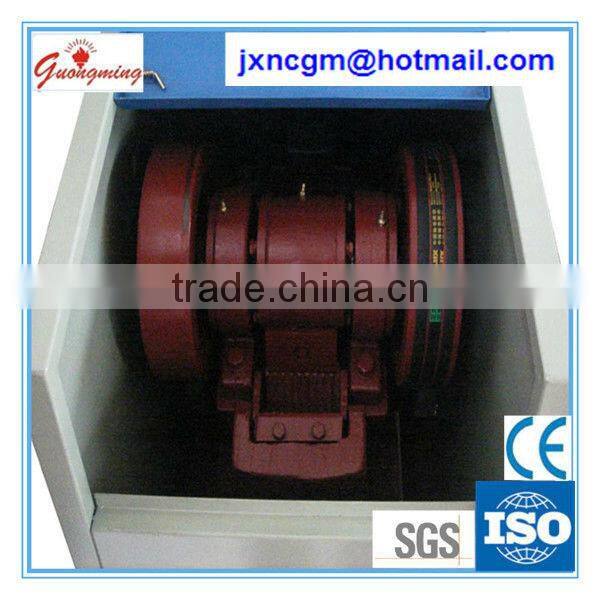

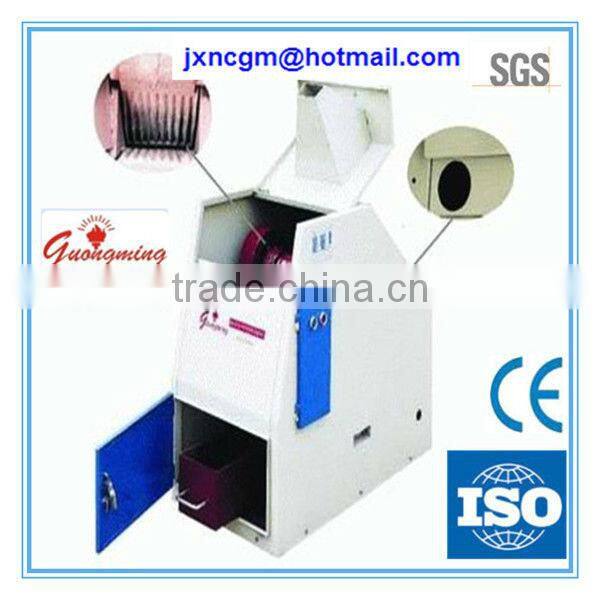

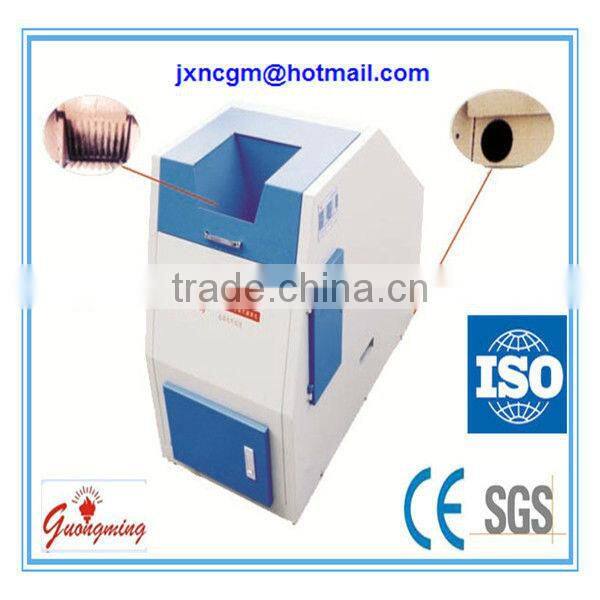

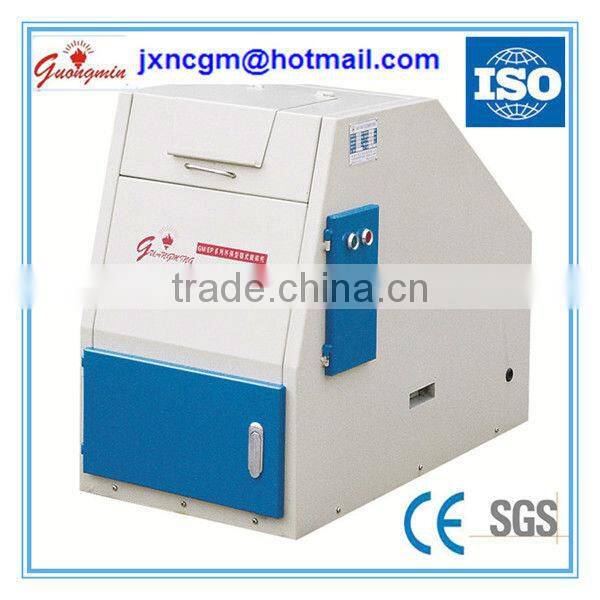

4. Guangming Lab Jaw Crusher Details:



  Small Laboratory Stone Crusher in Gold Milling Equipmenrt For SaleSmall Laboratory Stone Crusher in Gold Milling Equipmenrt For SaleSmall Laboratory Stone Crusher in Gold Milling Equipmenrt For SaleSmall Laboratory Stone Crusher in Gold Milling Equipmenrt For SaleSmall Laboratory Stone Crusher in Gold Milling Equipmenrt For Sale



We are sincerely welcome you come here to have a visit

Contact name : Hanxi Huang (Tracy)

Mobile: 0086 13507008941

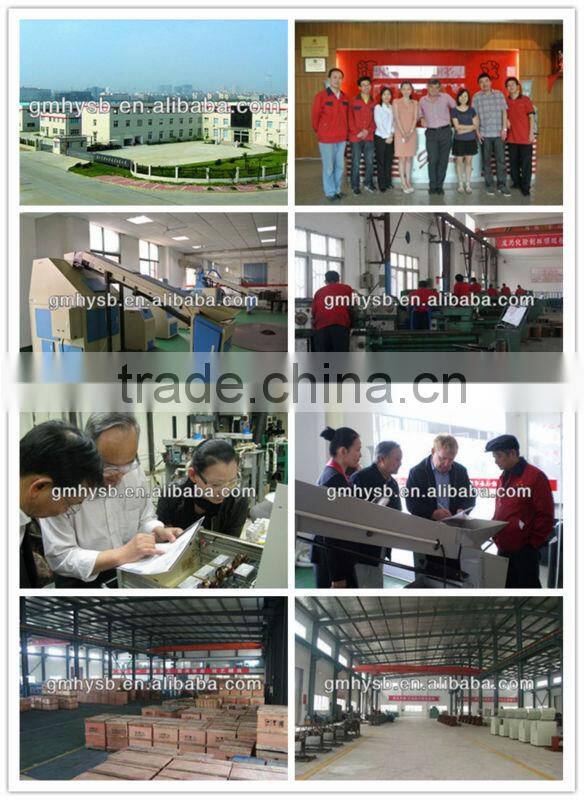

5. About Our Company:



GUANGMING specialize in lab sample preparatiion and lab sample analysis equipment more than 30 years. our products are including collector, disc mill,hammer mill, jaw crusher, roll crusher, dividing machine, vibrating sieving machine, rotary divider,sieve shaker, also integrated sample preparation system and physical properties testing series and analysis series ect.  Good quality and well service together with high precision won many many customers for us. Like SGS in domestic and abroad are using our equipment. GUANGMING warmly glad to support all of our customers with our speciality.



Small Laboratory Stone Crusher in Gold Milling Equipmenrt For Sale





We are sincerely welcome you come here to have a visit

Contact name : Hanxi Huang (Tracy)

Mobile: 0086 13507008941



GUANGMING---YOUR RELIABLE PARTNER FOR LAB SAMPLING EQUIPMENTS.
