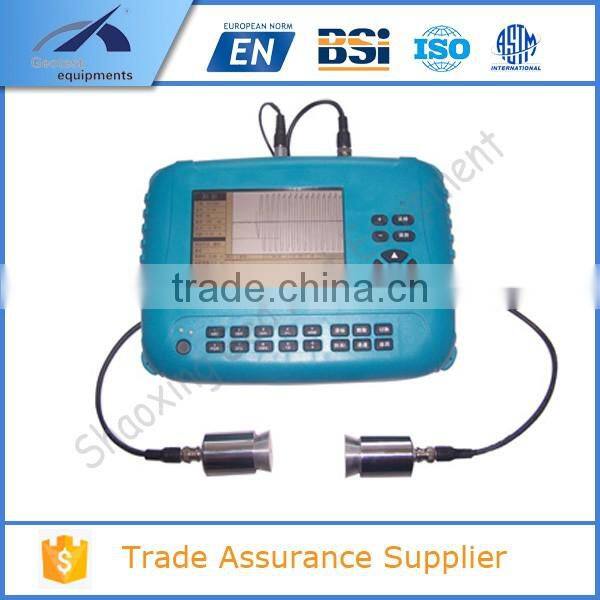

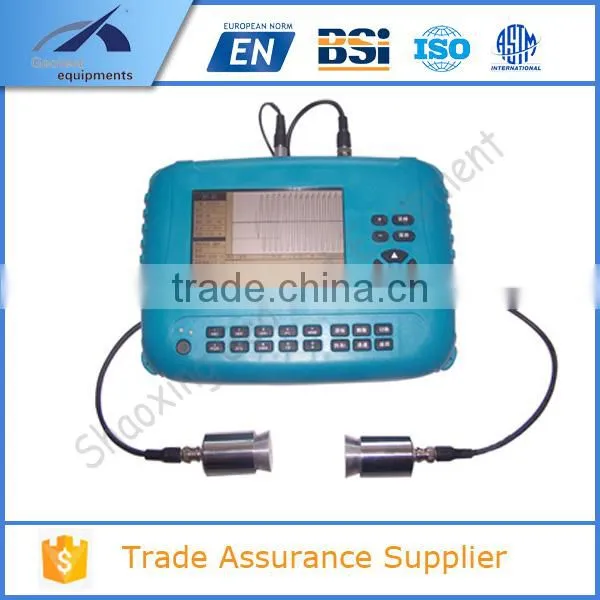

C62 Nonmetal Ultrasonic Detector Concrete Ultrasontic Flaw Crack Tester
Purpose
1.Testingofbuildingfoundationpilesbycross-hole sonic logging;
2. Inspectionofconcretedefectsbyultrasonicmethod, suchasuncompacted,cellular,holearea.
3. Detectingstrengthofconcretebyultrasonic-rebound combinemethod.
4. Detectingstrengthofconcretecreviceby ultrasonic-reboundcombinemethod.
5. Detectingdefectsofoneholebyonetriggertworeceive.
6. Testingdynamperformance ofgeotechnical investigation,rock,concreteetc.
Specification
1.Technologycodefortestingofbuildingfoundation pilesJGJ106 —2003
2.TechnicalSpecificationofDynamic PileTestsforHighway EngineeringJTG/TF81-01-2004
3.TechnologyspecificationforinspectionofconcretedefectsbyultrasonicmethodCECS21: 2000
4. Technicalspecificationfordetectingstrengthofconcretebyultrasonic-reboundcombine methodCECS02:2005
5. TechnicalspecificationforgeotechnicalinvestigationmethodGB50021—2001
Performance
1. High efficienttesting.liftingspeedmorethan60m/s.(20cmdistance);
2. Displaythetestdatagraphically.Usercanwatchanalyzeresultdirectly;
3. FastandpreciseAutomaticjudgethesoundparameters.Real-timewave displaytoassuretest efficiency;
4. Humanizedsoftwaredesign. softwaredesign applytoUserandconstructionplant.itshelp informationensureuserhandleeasily;
5. Linkingthereboundapparatusdirectly. Detectingstrengthofconcretebyultrasonic-rebound combinemethodwith linkingreboundapparatusdirectly,andgetstrengthofconcreteintime.The functionapplyfornationalpatent.
6. Beingsensitivetoreceivingsignal. Canreceivesignalmorethan10minconcretewithout defects
7. Cansupplysmoothpowerforradialenergytransducerneedlessexternalpower.
8. StandardUSBstoragewithbigcapacity.
9. Interiorlithiumbatterysupplypowerforapparatusworkmorethan6hours.
10. Portable,small,lightapparatus(1.75Kg).
11. Extendingfunctionfortestingthicknessofconcretebyimpactingechomethod.
12. Professional and powerful analysis software on windows system. It can export the data to Excelorwordforadvancedanalysis
| Iitem | Specification | Item | Specification |
| Main Control Unit | High-performance Embed Computer | Display |
640 × 480High brightness TFT Panel |
| Input | Keyboard | Storage | 1G(Internal)+2G(U-Disk |
| Interface | USB | ||
| Receive Channel | Two | Max Sample Data Length | 64k |
| Trigger Mode | Continuous Trigger External Trigger | Trigger Boltage(V) | 65,125,250,500,1000 selectable |
| Receive sensitivity | less than 30 µ v | Amplifier gain | 82dB |
Amplifier bandwidth |
5KHz-500KHz | Sample Periods | 0.05μs~6.4μs,8 grades electable |
| Sound time accuracy | 0.5µ s | Amplifier resolution | 0.39% |
| Power | Interiorlithium battery,work more than 6 hours | Size | 260 mm×185 mm×60 mm |
| External lithium battery , work more than 6 hours (select) | Weight | 1.75kg ( include lithium battery) | |
| DC 12V | Temperature | -10℃—+40℃ | |
| AC100V~240V,50/60Hz |
Configure
