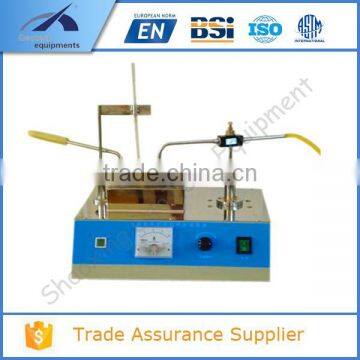

Asphalt Cleveland Cup Flash Point Tester
Function
The Asphalt Cleveland Cup Flash Point Tester is used to test the flash point of fuel oil,lubricating oil and so on under certain experimental condition.
Overview
(Basic model)conforms to GB/T261 & ASTM D93 standards. It is used to test the flash point of fuel oil,lubricating oil and so on under certain experimental condition.
Features
1. Upper cover with a standard fireball comparator, easy to operate.
2. Heating with stepless voltage regulator, heating-rate is even.
3. Stainless steel heater, safe and reliable.
4. Electrical motor to agitate oil sample makes the temperature of oil sample up equability.
5. The instrument is designed rationally, has attractive appearance and easy to operate.
Model | AFPT-1 |
Power supply | AC220V±10%, 50HZ |
Heating device | Heat by quartz tube furnace, no naked flame, anti-explosion, power is adjustable within 0-600W continuously |
Sweeping device | automatic sweep |
Thermometer | -6~400℃; Scale division is 2℃; as per GB/T514 |
| Flame application device | Gas source: coal gas (or other civil combustible gas) Spout diameter: 0.6-0.8mm |
Ambient temperature | -10℃~50℃ |
Relative humidity | ≤85% |
Total power consumption | ≤650W |
Outside size | 500×400×300mm |
Voltage | 220V |
Asphalt Cleveland Cup Flash Point Tester
