BRIEF INTRODUCTION

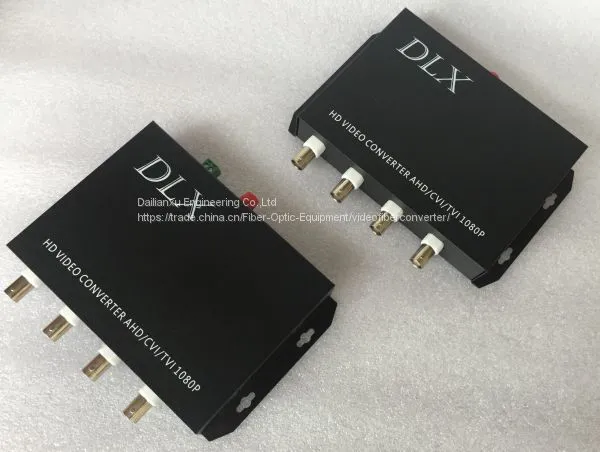

DLX-HDVOP04D series of products adopts ASICandadvanced digital video, high-speed TDM and Gigabit CWDM technology toprovide uncompressed high quality transmission systems for 4channels1280H/25f,1280H/30f,1280H/50f,1280H/60f,1920H/25f,1920H/30fetc. format HD-AHD/CVI/TVI/Analog video and 1channel reverse RS485 over oneoptic fiber. Support auto-adapt to 1280×720/960 and 1920×1080 resolution(only1920H type).Compared with the same kind of analog transmission systems thatemployaccidental amplitude or frequencymodulation, DLX-HDVOP04D products provide better transmission in quality. Supportnetwork of tree structure, star structure, ring structure and topology etc.DLX-HDVOP04D adopts Modularized design, support function expanded.
In the HD video application system, if use commoncopper cable for long distance transmission, it will always show the pooroutput signal, be liable for the interference, the image displayed appears thephenomenon of the vague, the tailing and color separation etc. At the same time,the distance of transmission is short, it can not meet the requirement of longdistance transmission for the multimedia information issuing etc. using the DLX-HDVOP04D optical transmitter and receiver for transmittingHD-AHD/CVI/TVI/Analog signals, this kind of problem has been completely solved,the distance of transmission is from 1km to 100km.In the mean while, theoptical transmitter and receiver has the outstanding points with a littleattenuation, frequency bandwidth, strong anti-interference, high safetyperformance, small volume and light in weight etc., therefore, it hasincomparable advantages in the respect of the special environment and the longdistance transmission.
APPLICATIONS
● High Way & Toll Station Surveillance
● Subway PS System
● Visual command of military bases
● Visual Intelligent Outdoor Surveillance System
● Telemedicine systems
● Digital video display
● Surveillance and cable TV system
● Intelligent traffic monitoring system
● High Quality Video Conference
● Live Broadcast and TV program transmission
● Long-distance multimedia teaching
● Industrial Closed Circuit Television Surveillance
FEATURES
● Support 1280×720/960,1920×1080 resolution, analogand 25f/30f/50f/60f 4kinds frame rate
● Full digital uncompressed, Non-destructiveand real-time high quality HD video transmission
● Advanced Audio, AHD/CVI/TVI/Analog, Dataadaptive technique
● Standalone and 4.5U rack mounted typeoptional, up to 21pieces fiber converters be installed in 19inchchassis
● Modularized and industrialized design ensuringreliability and flexibility
● Fiber connector is SC/FC/ST optional
● Industry grade components, ESD protectiondesign, Metal case
● Unique Power Polarity protection, Power wrongconnection protection, Auto-recover after fault been remove
● No EMI, no RFI etc.

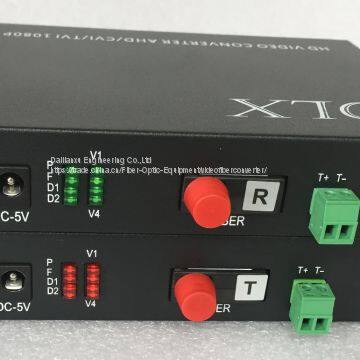

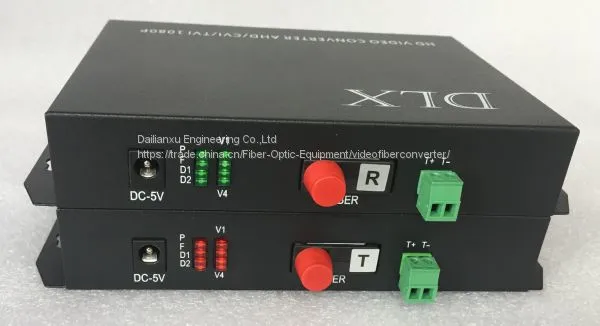

● Indicators for Power Supply, Video, Optic-linkand Data-loop
● Free from In-field Adjustment
● Flexible and Easy Mount
● Protection against lightening strike and surge
● Transmission distance: 20km (Single-mode), 2kmMM,40km/60km/80km/100km/120KM SM optional
SPECIFICATION
Type: HD CVI/AHD/TVI/Analog
Fiber Port: FC (SC/ST optional) SM
SM/MM optional
Transmission Distance: 20km(2kmMM,40km/60km/80km/100km/120KM SM optional)
Input/Output Wavelength Transmitter:Tx1310/Rx1550nm Receiver: Tx1550/Rx1310nm
Tx Input Level:>500mVP-P
Rx Output Level:1Vp-p
Input Automatic Cable Equalization1080p: 75-5coaxial cable supports 500m.
Tx Input Return Loss:>15dB
Input/Output Impedance: 75Ω
Rx up/down time:
Rx Max. Jitter:

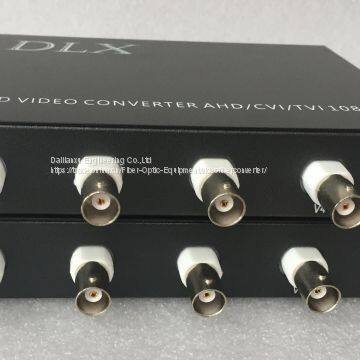

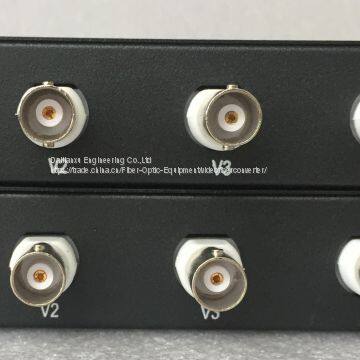

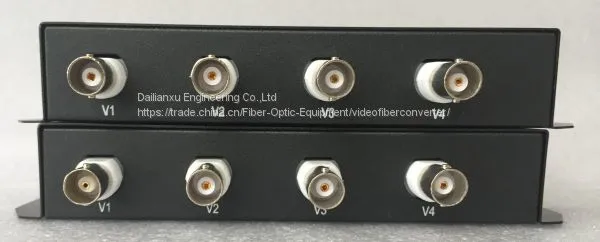

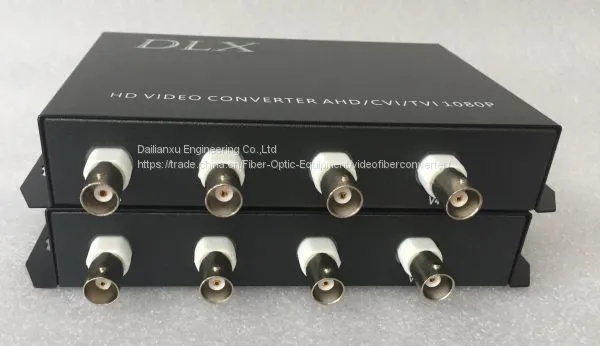

Video Port: BNC
Input/Output Ports: 4
Video Bandwidth: 50MHz
Video Capture Bandwidth:8 bit
Data Interface Type: RS-485
Data Operation Mode: Half-duplex
Data Rate: DC-115.2Kbps
BER
Data Connector: Terminal Plug with screwclamps

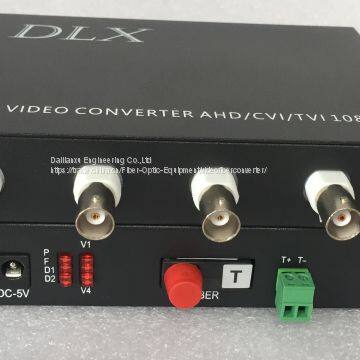

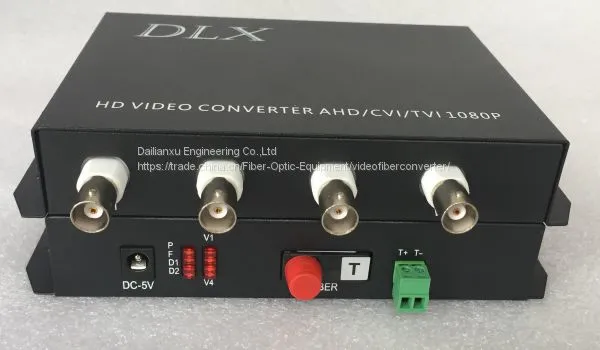

LED Status Indicators: Fiber-link, Power,Data, Video Source
Power Adapter: DC5V 1A
Power Consumption: ≤5W
Humidity:10%-90%
High and Low Temperature: -40˚C to +75˚C
Installation Method: Wall-mounted
Dimension: 165mm(L)x135mm(W)x30mm(H)
