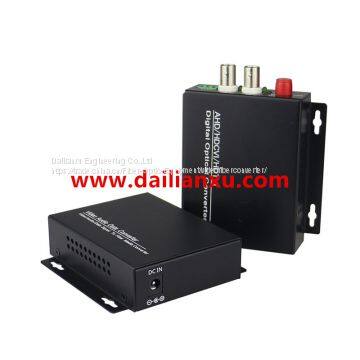

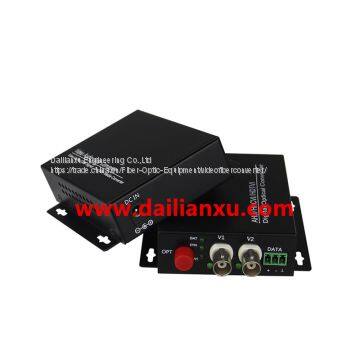

Help Center2channels 720P/960P/1080P AHD CVI TVI All in One Fiber Optic Transmitter and Receiver AHD CVI TVI to Fiber Converter
Related Products
-
3G-SDI Fiber Optic Transmitter and Receiver 3G-SDI to Fiber Converter SDI to Fiber Transmitter Fiber Optical SDI ConvertUS$ 200 - 500MOQ: 1 Pair -
HD-SDI With Return RS485 Fiber Optic Transmitter and Receiver SDI PTZ Camera to Fiber Converter SDI Fiber ExtenderNegotiableMOQ: 1 Pair
-
4channels 3G-SDI Video Fiber Optical Transmitter and Receiver With Dual Power Supply LC Fiber Port 3G-SDI Broadcast Video Fiber ConverterUS$ 1200 - 1600MOQ: 1 Pair
-
1080P HD-AHD/CVI/TVI/Analog 4 in One Video Audio Data Fiber Optical Transmitter and ReceiverUS$ 80 - 400MOQ: 1 Pair
-
4chs HD-SDI Video With One RS485 Data Fiber Optic Transmitter and Receiver,SDI PTZ Camera to Fiber ConverterNegotiableMOQ: 1 Pair
BRIEF INTRODUCTION
DLX-HDVOP02-E series of products adopts ASIC and advanced digital video, high-speed TDM and Gigabit CWDM technology to provide uncompressed high quality transmission systems for 2channels1280H/25f,1280H/30f,1280H/50f,1280H/60f,1920H/25f,1920H/30f etc. format HD-AHD/CVI/TVI/Analog video and 1channel reverse RS485 over one optic fiber. Support auto-adapt to 1280×720/960 and 1920×1080 resolution(only 1920H type).Compared with the same kind of analog transmission systems that employ accidental amplitude or frequency modulation, DLX-HDVOP02-E products provide better transmission in quality. Support network of tree structure, star structure, ring structure and topology etc. DLX-HDVOP02-E adopts Modularized design, support function expanded.
In the HD video application system, if use common copper cable for long distance transmission, it will always show the poor output signal, be liable for the interference, the image displayed appears the phenomenon of the vague, the tailing and color separation etc. At the same time, the distance of transmission is short, it can not meet the requirement of long distance transmission for the multimedia information issuing etc. using the DLX-HDVOP02-E optical transmitter and receiver for transmitting HD-AHD/CVI/TVI/Analog signals, this kind of problem has been completely solved, the distance of transmission is from 1km to 120km.In the mean while, the optical transmitter and receiver has the outstanding points with a little attenuation, frequency bandwidth, strong anti-interference, high safety performance, small volume and light in weight etc., therefore, it has incomparable advantages in the respect of the special environment and the long distance transmission.
APPLICATIONS
● High Way & Toll Station Surveillance
● Subway PS System
● Visual command of military bases
● Visual Intelligent Outdoor Surveillance System
● Telemedicine systems
● Digital video display
● Surveillance and cable TV system
● Intelligent traffic monitoring system
● High Quality Video Conference
● Live Broadcast and TV program transmission
● Long-distance multimedia teaching
● Industrial Closed Circuit Television Surveillance
FEATURES
● Support 1280×720/960,1920×1080 resolution, analog and 25f/30f/50f/60f 4kinds frame rate
● Full digital uncompressed, Non-destructive and real-time high quality HD video transmission
● Advanced Audio, AHD/CVI/TVI/Analog, Data adaptive technique
● Standalone and 2U rack mounted type optional
● Modularized and industrialized design ensuring reliability and flexibility
● Fiber connector is SC/FC/ST optional
● Industry grade components, ESD protection design, Metal case
● Unique Power Polarity protection, Power wrong connection protection, Auto-recover after fault been remove
● No EMI, no RFI etc.
● Indicators for Power Supply, Video, Optic-link and Data-loop
● Free from In-field Adjustment
● Flexible and Easy Mount
● Protection against lightening strike and surge
● Transmission distance: 20km (Single-mode), 2km MM,40km/60km/80km/100km/120KM SM optional
SPECIFICATION
Type: HD CVI/AHD/TVI/Analog
Fiber Port: FC (SC/ST optional) SM
SM/MM optional
Transmission Distance: 20km(2km MM,40km/60km/80km/100km/120KM SM optional)
Input/Output Wavelength Transmitter: Tx1310/Rx1550nm Receiver: Tx1550/Rx1310nm
Tx Input Level:>500mVP-P
Rx Output Level:1Vp-p
Input Automatic Cable Equalization1080p: 75-5 coaxial cable supports 500m.
Tx Input Return Loss:>15dB
Input/Output Impedance: 75Ω
Rx up/down time:<0.8ns
Rx Max. Jitter:<0.2UI
Video Port: BNC
Input/Output Ports: 2
Video Bandwidth: 50MHz
Video Capture Bandwidth:8 bit
LED Status Indicators: Fiber-link, Power, Data, Video Source
Power Adapter: DC5V 1A
Power Consumption: ≤5W
Humidity:10%-90%
High and Low Temperature: -40˚C to +75˚C
Installation Method: Wall-mounted
