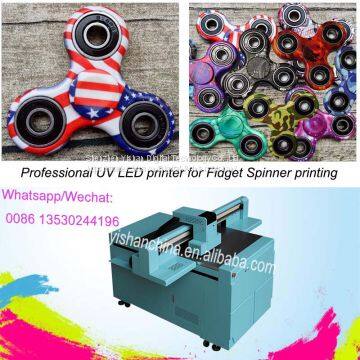

Min UV flatbed printer with Ricoh GH 2220 printhead

Model No. :YS9004-RP

Name: Small UV LED flatbed printer

Printhead: Ricoh GH2220-3.5PL

Printhead Quantity: 4PCS

Max Resolution: 1200*2400dpi

Media Max.printing size: 900MMx1220MM

Media Types: All flat rigid and soft media, such as Glass, Steel,Ceiling,Acrylic,Plexiglass,Tiles,Paper, PVC,Wood,Dilond,Coroplast,Kapabloc,Aluminium,Leather,ceramic ect.

Media Thickness(Max): 100MM

Speed:

Pass-4      8Sqm/H

Pass-6     6Sqm/H

Pass-8     4Sqm/H

Ink color: C /M /Y/ K

Ink type: UV curing ink(made in Japan)

Ink curing system: Imported UV LED curing system

Computer system: Win2000,Win7

Power Machine: 50/60Hz, 110/220V,total:3000W

Interface: Higher speed USB/PCIE

Cleaning systerm: Auto

Print Head protection: Anti-collision

Mute screw: Imported,high-precision, low noise,

Ink lack indentification: Auto

Negative pressure control: Imported negative pressure system

Best Environment: Temperature: 15-30°C, Humidity: 20-80%

Software: YISHAN Operation and Korea SeeGet Rip Software, Suppot popular RIP(Caldera, Photoprint)

Accepted File formats: All popular desktop files formats such as PEG, AI,EPS,PDF,TIFF,SVG,etc

Warranty: 12 Months after shipment

Size&Weight Machine:  1900mm x1900 mm x 1400(mm), 420kgs

Packing:L2200*W2200*H1800(mm),650kgs
