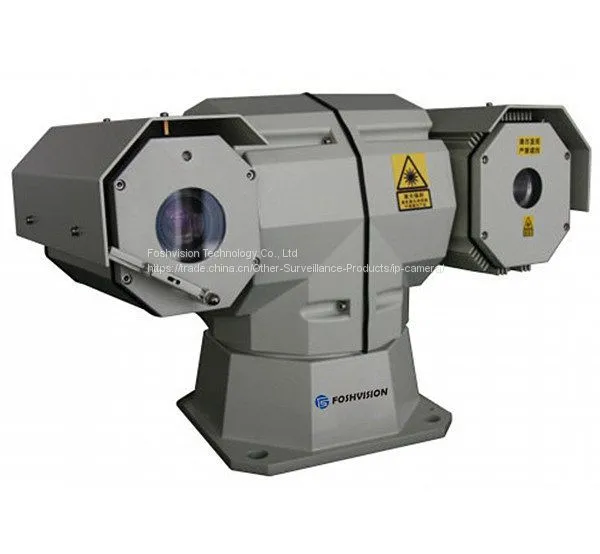

HD Integrated Laser Night Vision Camera

HD Integrated Laser Night Vision Camera thumbnail-1
HD Integrated Laser Night Vision Camera thumbnail-2
HD Integrated Laser Night Vision Camera thumbnail-3
HD Integrated Laser Night Vision Camera photo-1
HD Integrated Laser Night Vision Camera photo-2
HD Integrated Laser Night Vision Camera photo-3
US$ 1000 - 3000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Foshvision
Place of Origin:
China
Model Number:
FS-TL411
Contact Supplier Request Quote Chat Now
Foshvision Technology Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Jinan
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Foshvision
Place of Origin China
Model Number FS-TL411

Product feature

l  Adopting laser illuminating system, far illuminating distance, wide illuminating range, can monitor in 0Lux completely black
● Day&night low light megapixel color to black camera, day&night continuous monitoring
● Auto white balance, auto gain control, auto exposure control
● High performance video processing chip and H.264 high efficiency video code, providing millions of high definition video image
● Dual stream function, small time delay, fully satisfying different network bandwidth
● Fully supporting ONVIF,GB/T28181,providing SDK, can dock with main monitoring platform home and broad
● Motion detection and alarm linkage, providing intelligent video monitoring application
● Capturing and videoing, supporting WEB browsing video, provide access to NVR platform to conduct parameter configuration and operation state management
● Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supplying mode such as solar power
● Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain



Specification

Monitoring   distance

Night vision

400meters

Day vision

700meters

Laser illuminator

Power

5W

Wave length

810nm

Illuminating angle

2°-50° synchronous continuous adjustment

Even light

LCMM even light technology

Visible light Camera

Sensor

1/2.8" Progressive Scan CMOS

Total pixels

2.1MP

Lens

f=4.7-94mm, 20x optical zoom

Lens aperture

F1.6-3.5

Minimum illumination

0.05Lux (color), 0.01Lux (black and white)

Electronic shutter speed

Auto and manual adjustment

Camera control

Auto gain control, auto white balance, auto backlight   compensation, supporting manual and auto day and night mode switch

Video coding

Coded format

H.264

Video resolution

1920 x 1080

Bitrate

64Kbps-4Mbps

Frame rate

1-25f/s(50Hz), 1-30f/s(60Hz)

Subtitle overlay

station logo, date, time

Image adjustment

brightness, contrast, saturability

Supporting protocol

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP,   NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)

Pan-tilt

Angle

Pan 360° continuous, tilt -90° to +90°

Speed

Pan 0°-80°/s, tilt 0°-60°/s

Presets

256

Cruising function

6 paths

Interface

Network interface

1×10Base-T/100Base-TX, RJ45

Power supply interface

1×DC 24V socket, for external power adapter

Audio interface

1×Line In, 1×Line Out

Alarm interface

1 switch input, 1 switch output

Environmental indicators

Operation temperature

-25℃ to +55℃ (optional -40℃ to +60℃)

Storage temperature

-40℃ to +65 ℃

Protecting grade

IP66

Anti-vibration

10-55Hz, 2m/s2, 0.75mm

Anti-impact

150m/s2, 11ms

Anti-salt fog

After continuous spraying for 48 hours at PH   6.5-7.2, surface does not change

Power supply

Working power supply

DC 24V±5% /2.5A, please use the appendant   power supply

Power consumption

≤60W

Physical features

Size

240mm×374mm×243mm

Weight

8Kg

    Others

Application function

Real time clock, supporting manual snapshot and   manual recording

Configuration

Supporting configuration management and video browsing   through WEB;
  Provide access to platform(NVR) to conduct parameter configuration and   operating state management, supporting ONVIF2.0, GB28181
