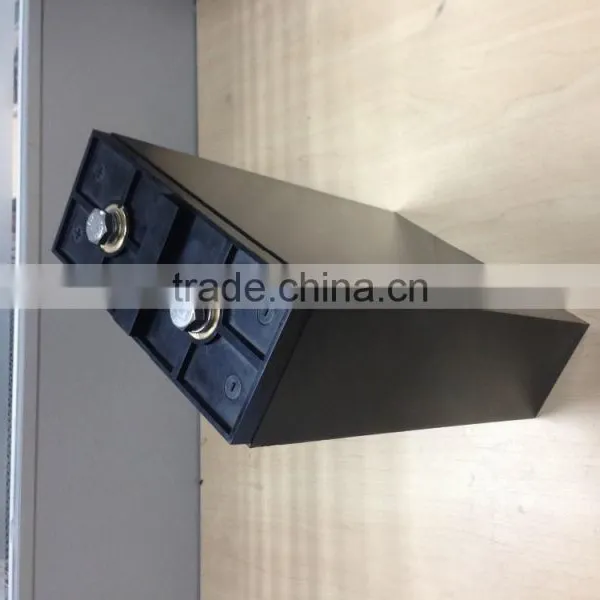

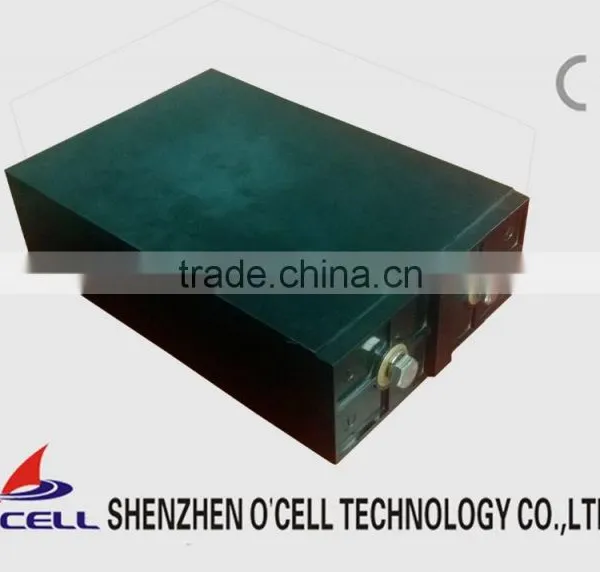

3.2V180Ah LiFePO4 Cell

Name: 3.2V180Ah LiFePO4 Cell
Brand: O'cell
SKU: 143102982

US$ 220 - 270 MOQ: 100 Sets

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

O'cell

Model Number:

IFM3-180-C-E0-26650-01

Ocell New Energy Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name O'cell

Model Number IFM3-180-C-E0-26650-01

Type Li-Ion

Nominal Voltage Other, 3.2V

Size Other, 278*130*73mm

Nominal Capacity 180Ah

Specification

No.	Item	General Parameter	Remark
1	Rated Capacity	180Ah	Standard discharge (0.2C) after standard charge (0.2C)
2	Minimal Capacity	170Ah	Standard discharge (0.2C) after standard charge (0.2C)
3	Nominal Voltage	3.2V
4	Life Expectation	Residual capacity is more than 60% of the rated capacity	1) Charge: CC @ 0.2C to 3.65V, then CV till current to 0.05C 2) Rest: 30min. 3) Discharge: 0.2C to 2.0V Temperature:20±5℃ Carry out 2000cycles
5	Discharge cut-off voltage	2.0V	2.5V recommended
6	Charging cut-off voltage	3.65V
7	Assembly method	IFR26650EC-3.0AH	1S60P
8	Housing material	ABS
9	Standard charge	0.2C constant current (CC) charge to 3.65V,then constant voltage (CV) 3.65V charge till charge current decline to ≤0.05C	Charge time : Approx 7.0h

10	Standard discharge	Constant current 0.2C Cut-off voltage 2.0V
11	Maximum Continuous Charge Current	90A @ 20℃
12	Maximum Continuous Discharge Current	90A @ 20℃
13	Operation Temperature Range	Charge: 0~45℃	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~50℃	60±25%R.H.
14	Storage Temperature Range	Less than 1 year: 0~25℃	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35℃	60±25%R.H. at the shipment state
15	Approx. Weight	6.0Kg
16	Dimension	Height: 73 mm
		Width: 180 mm
		Length: 278 mm
17	Impedance	≤5 mΩ	AC 1KHz @ 50% SOC
18	Shipping Voltage	3.2V-3.40V

Prismatic battery Models

Model		IFP30135185EC	IFP36115205EC	IFP36130200EC	IFP60150190EC	IFM3-1800EC
voltage (V)		3.2
Nominal capacity(Ah)		50	60	60	100	180
Charging method		CC, CV
Standard charging / discharging current(A)		15	12	12	20	36
Max. charging current(A)		50	60	60	100	90
Max. discharging current(A)		150	180	120	300	90
Max. charging voltage(V)		3.65
discharge cut-off voltage(V)		2
Dimension	Length (mm)	135	115	130	150	180
	width(mm)	30	36	36	60	73
	Height (mm)	180	205	200	189	278
	Total Height (mm)	185	220	215	205	285
resistance(mΩ)		3	3	3	2.5	5
Approx. Weight (Kg)		1.4	1.8	1.8	3.2	6
