Help Center72V110Ah LiFePO4 Battery Pack for Electric Car
Related Products
-
Lithium Ion 12V40Ah LiFePO4 Battery for EV Floor Scrubber Machine,Golf Cart BatteryUS$ 380 - 450MOQ: 5 Packs -
LiFePO4 12V110Ah for EV Lithium Ion Rechargeable Battery PackUS$ 800 - 900MOQ: 5 Sets
-
LiFePO4 Battery 12V110 for Energy StorageUS$ 300 - 350MOQ: 4 Sets
-
Lithium Ion 24V 80AH LiFePO4 Battery For E-VehicleUS$ 1,280 - 1,500MOQ: 5 Packs
-
48V Lithium Ion Battery Pack, 48V100Ah, 150Ah, 170Ah, LiFePo4 Battery Packs, for Vehicle, for Solar Energy StorageUS$ 3,500 - 5,000MOQ: 1 Set
Specification of 72V Battery Pack
No. |
Item |
Specification |
1 |
Battery module |
IFM12-1100E1(12.8V110Ah) |
2 |
Assemble method |
6S1P |
3 |
Nominal capacity/Ah |
110Ah |
4 |
Nominal voltage/V |
76.8V(12.8V*6) |
5 |
Max. Charge voltage/V |
≤87.6V(14.6V*6) |
6 |
Discharge cut-off voltage/V |
≥60.0V(10.0V*6) |
7 |
Recommended charge current/A |
≤55A |
8 |
Discharge current/A |
≤150A |
9 |
Max. discharge current/A |
≤300A(10S) |
10 |
Weight/Kg |
<61Kg |
11 |
Approximate resistance/mΩ |
<60mΩ |
12 |
Dimension(for reference only) |
depend on configuration |
13 |
Temperature range |
charge:0~45°C |
discharge:-10~50°C | ||
14 |
Storage temperature |
-10~45°C |
15 |
Over voltage warning/V |
93.6V(15.6*6) |
16 |
Over voltage alarm/V |
96V(16.0V*6) |
17 |
Under voltage warning/V |
67.2V(11.2V*6) |
18 |
Under voltage alarm/V |
55.2V(9.2V*6) |
19 |
Over temperature warning/°C |
60°C |
20 |
Over temperature alarm/°C |
65°C |
21 |
Regeneration function |
Depend on Motor controller |
Note:
1. Each Each battery module has one slave BMS circuitry inside;

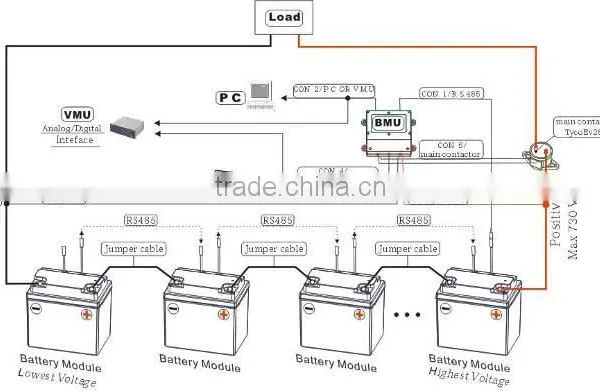

2. BMU act as master BMS circuitry collect all information from each battery modules through
RS485, then decide to cut-off the contactor or not;
3. We We strongly recommend customer to use two contactors (one for charge and another for
discharge) in the battery system.
Our advantages
1. Modular design makes the system installation, maintenance easier;
2. Battery modules can be connected in series or parallel to make the system
more flexible;
3. IP56 dust and water proof design suit for in severe circumstance;
4. Dual LED indicator makes the battery module status easy to know;
BMS:
Besides the basic functions such as over charge/ discharge, over current, short circuit, over
temperature and balancing, Our BMS owns the following features,
1. Master-Slave architecture makes the system flexible;
2. Two level warning makes maintenance easier;
3. CAN2.0 and industrial level electronic components make system reliable;
4. Contactor makes high rate charge & discharge feasible;
5. Periodic insulation measurement makes personnel safety possible;
6. Host can control the system easily;
BMU Photo
Monitoring Software (Need USB-CAN Adapter)
