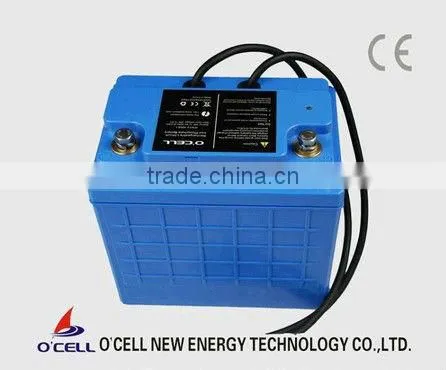

Lithium Ion 12V40Ah LiFePO4 Battery for EV Floor Scrubber Machine,Golf Cart Battery

Lithium Ion 12V40Ah LiFePO4 Battery for EV Floor Scrubber Machine,Golf Cart Battery thumbnail-1
Lithium Ion 12V40Ah LiFePO4 Battery for EV Floor Scrubber Machine,Golf Cart Battery photo-1
US$ 380 - 450 MOQ: 5 Packs
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OCELL
Model Number:
IFM12-400E3
Contact Supplier Request Quote Chat Now
Ocell New Energy Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN or HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OCELL
Model Number IFM12-400E3
Composed Type Other, in series and parallel
Type Li-Ion
Components Other, LiFePO4
Size 195*130*182mm
Voltage 12.8V
Weight 6.1Kg
Nominal Capacity 40Ah
Application EV/HEV/Golf Cart

Lithium ion 12V40Ah LiFePO4 battery for EV,Floor Scrubber machine,Golf Cart battery, 12.8V lithium ion battery

Specification

This specification is applied to the LiFePO4 battery pack that manufactured by O’CELL Technology Co., Ltd. There is built-in smart PCM for over charge/discharge, over temperature, over current protection. It owns RS485 interface for communication and LED indicator for showing battery status.

It can connect in series up to 48V battery system. Extra BCK (Battery Controlling Kits) is recommended to monitor the information of the whole battery system and aid battery system balancing.



No. Item General Parameter Remark
1 Rated Capacity 40.0Ah
2 Minimal Capacity 40.0Ah
3 Nominal Voltage 12.8V
4 Cycle Life Residual capacity is more than 60% of the rated capacity 1. Charge: CC@ 0.2C to 14.6V, then CV till current to 0.05 C5
2. Rest: 30min.
3. Discharge: 0.2C to 10.0V
Temperature:20±5°C
Carry out 1500cycles
5 Discharge cut-off voltage 10.0V Adjustable by O’CELL
6 Charging cut-off voltage 14.6V Adjustable by O’CELL
8 Housing material ABS+PC  Flame Retardant Plastic
9 Standard charge 0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05 C Charge time : Approx 6.5h
  Standard discharge Constant current 0.2C,Cut-off voltage 10.0V
11 Maximum Charge Current 20A 20A or less recommended for better performance and life
12 Continuous Discharge Current 30A 80A (30S)@23°C
13 Operation Temperature Range Charge: 0~45°C 60±25%R.H.
Discharge: -10~60°C
14 Storage Tem Less than 1 year : 0~25°C 60±25%R.H.
erature Range Less than 3 months:-5~35°C at the shipment state
15 Approx. Weight 6.1Kg
16 Dimension L195*W130*H183mm Terminals: M6 female-threaded , build-in smart PCM
21 Communication protocol RS485 with 5-pin M12 connector

 CONTACT Alex: sales11 AT for more details.

Lithium ion 12V40Ah LiFePO4 battery for EV Floor Scrubber machine,Golf Cart battery
