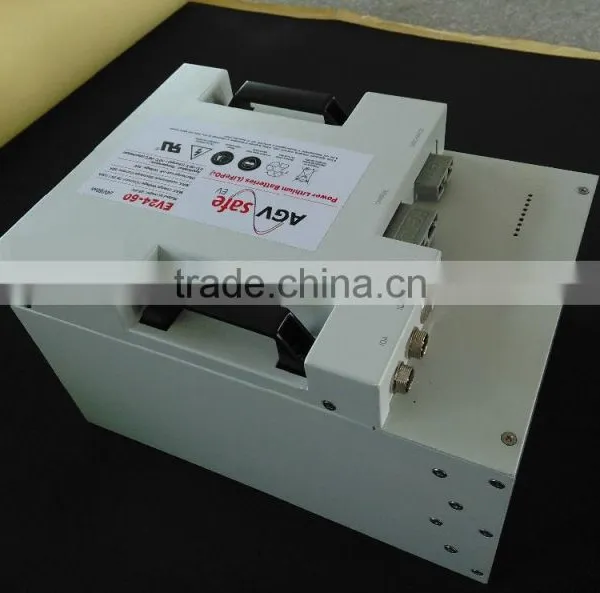

LiFePO4 battery 24V 60Ah for Auto Guide Vehicle
OCELL Lithium Deep Cycle Batteries, using Lithium Iron Phosphate (LiFePO4) technology offer excellent weight saving within the same footprint as industry standard lead acid (VRLA) alternatives. The internal management system allows them to be used as an alternative to AGM or GEL batteries with minimal changes. LiFePO4 is also an intrinsically safer chemistry with improved safety compared to other lithium options.
The integrated management system monitors the current, voltage and temperature of the battery and the cells. When the battery is used outside of the recommended operating parameters it will react and isolate the battery from the system maintaining safety. When the source of the error is removed the system resets so that the battery can be used again.
Benefits
- Between a half and a third lighter than VRLA
- Very high cycle life compared to VRLA
- Integrated battery management including cell balancing
- Fast recharge and superior cycle performance
- Robust, sealed construction, no maintenance
- Industry standard sizes
- UL Certified Cells
Applications
- Portable Power
- Auxiliary Vehicle Power
- Marine
- Solar Power / Renewable Power
- Defence
- Medical Carts
- Environmental Control Back-up Systems
- Golf trolley
- AGV
Internal Battery Protection
- Over charge protection
- Over discharge protection
- Over current protection
- Temperature protection
- Cell balancing function
Transportation
To be shipped as Class 9 Hazardous Goods,
however please contact OCELL team for more information via sales11 AT
Technical Data Sheet
| Item | Specification |
| Typical Capacity | 60Ah |
| Minimal Capacity | 59Ah |
| Nominal Voltage | 25.6V |
| Approx. Weight | 25KG |
| Max. Charge Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Standard Charge Current | 20A |
| Rapid Charge Current | 30A |
| Continuous Discharge Current | 30A. max |
| Pulse Discharge Current (5 sec.) | 50A |
| Storage Temperature Range | -20oC--60oC |
| Charging Temperature Range | 0oC--45oC |
| Discharging Temperature Range | 20oC--60oC |
| Application | Scooter,Wheelchair,Golf Car,Medical cart ,AGV |
NOTE
It is CRITICAL that you determine your device polarity before using the battery and connect to the battery correctly in polarity. FAILURE TO DO SO MAY RESULT IN SEVERE DAMAGE TO YOUR PRODUCT!
