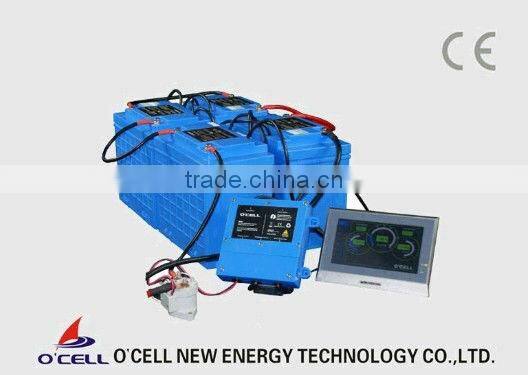

Lithium ion 48V 100Ah LiFePO4 battery Pack for sightseeing cars
- 5000 Set / Sets per Month
- SHENZHEN HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Lithium ion 48V20Ah LiFePO4 Battery Pack for 48V DC power
-
48V Lithium ion battery 48V20Ah LiFePO4 battery pack for golf trolley, E-scooter
-
lifepo4 battery Lithium ion 48V100Ah for EV electronic car, 48V lithium ion battery
-
Lithium ion battery packs 48V100Ah LiFePO4 batteries for ev
-
lifepo4 li-ion battery 48V 40ah
-
48V 100Ah LiFePO4 Battery for E-vehicle Power
Product Details
Place of Origin | Guangdong, China | Brand Name | OCELL | |
Model Number | 48V 100ah | Composed Type | Other, 4S1P | |
Type | Li-Ion | Components | Other, LIFEPO4 | |
Size | 195*130*183mm | Voltage | 48V | |
Weight | 62KG | Nominal Capacity | 100AH | |
Application | EV E-Boat E-car |
standard package for lithium ion battery
Product Description
Lithium ion 48V 100Ah LiFePO4 battery Pack for sightseeing cars
Detailed Product Description
High drain up to 150A(30S);
Humanized monitor interface available;
Easy to install, expand,control and maintenance;
BMS:
O’CELL BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor.
Besides the basic functions such as over charge/ discharge, over current, short circuit, over
temperature and balancing, Our BMS owns the following features,
1. Master-Slave architecture makes the system flexible;
2. Two level warning makes maintenance easier;
3. CAN2.0 and industrial level electronic components make system reliable;
4. Contactor makes high rate charge & discharge feasible;
5. Periodic insulation measurement makes personnel safety possible;
6. Host can control the system easily;
1. Modular design makes the system installation, maintenance easier;
2. Battery modules can be connected in series or parallel to make the system more flexible;
3. IP56 dust and water proof design suit for in severe circumstance;
4. Dual LED indicator makes the battery module status easy to know;
5. High accuracy SOC calculation;
No. | Item | Specification | Remark |
1 | Battery module | IFM12-1100E1(12.8V110Ah) | |
2 | Assemble method | 4S1P | |
3 | Nominal capacity/Ah | 110Ah | |
4 | Nominal voltage/V | 48V(12.8V*6) | |
5 | Max. Charge voltage/V | ≤58.4V(14.6V*4) | |
6 | Discharge cut-off voltage/V | ≥40V(10.0V*4) | |
7 | Recommended charge current/A | ≤55A | |
8 | Discharge current/A | ≤150A | |
9 | Max. discharge current/A | ≤300A(30S) | |
10 | Weight/Kg | <62Kg | |
11 | Approximate resistance/mΩ | <120mΩ | |
12 | Dimension(for reference only) | depend on configuration | |
13 | Temperature range | charge:0~45°C | |
discharge:-10~50°C | |||
14 | Storage temperature | -10~45°C | |
15 | Over voltage warning/V | 93.6V(15.6*6) | adjustable |
16 | Over voltage alarm/V | 96V(16.0V*6) | adjustable |
17 | Under voltage warning/V | 168V(11.2V*6) | adjustable |
18 | Under voltage alarm/V | 55.2V(9.2V*6) | adjustable |
19 | Over temperature warning/°C | 60°C | adjustable |
20 | Over temperature alarm/°C | 65°C | adjustable |
21 | Regeneration function | Depend on Motor controller |
Note:
1. Each battery module has one slave BMS circuitry inside;
2. Master BMS circuitry(we named BMU) collect all information from each battery module through
RS485, then decide to cut-off the contactor or not;
3. We strongly recommend customer to use two contactors (one for charge and another for
discharge) in the battery system.
4. We can connect more battery modules in parallel to expand the system capacity
Contac sales11 AT for more details.
