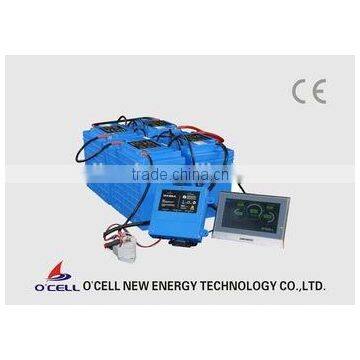

lifepo4 battery Lithium ion 48V100Ah for EV electronic car, 48V lithium ion battery

High drain up to 150A(30S);
Humanized monitor interface available;
Easy to install, expand,control and maintenance;

BMS:

O’CELL BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor.



Besides the basic functions such as over charge/ discharge, over current, short circuit, over

temperature and balancing, Our BMS owns the following features,

1. Master-Slave architecture makes the system flexible;

2. Two level warning makes maintenance easier;

3. CAN2.0 and industrial level electronic components make system reliable;

4. Contactor makes high rate charge & discharge feasible;

5. Periodic insulation measurement makes personnel safety possible;

6. Host can control the system easily;

1. Modular design makes the system installation, maintenance easier;

2. Battery modules can be connected in series or parallel to make the system more flexible;

3. IP56 dust and water proof design suit for in severe circumstance;

4. Dual LED indicator makes the battery module status easy to know;

5. High accuracy SOC calculation;



Specification of 48V Battery Pack

No.	Item	Specification	Remark
1	Battery module	12.8V110Ah
2	Assemble method	4S1P
3	Nominal capacity/Ah	110Ah
4	Nominal voltage/V	51.2V(12.8V*4)
5	Max. Charge voltage/V	≤58.4V(14.6V*4)
6	Discharge cut-off voltage/V	≥40V(10.0V*4)
7	Recommended charge current/A	≤55A
8	Discharge current/A	≤150A
9	Max. discharge current/A	≤300A(30S)
10	Weight/Kg	<62Kg
11	Approximate resistance/mΩ	<120mΩ
12	Dimension(for reference only)	depend on configuration
13	Temperature range	charge:0~45°C
		discharge:-10~50°C
14	Storage temperature	-10~45°C
15	Over voltage warning/V	93.6V(15.6*6)	adjustable
16	Over voltage alarm/V	96V(16.0V*6)	adjustable
17	Under voltage warning/V	168V(11.2V*6)	adjustable
18	Under voltage alarm/V	55.2V(9.2V*6)	adjustable
19	Over temperature warning/°C	60°C	adjustable
20	Over temperature alarm/°C	65°C	adjustable
21	Regeneration function	Depend on Motor controller

Note:

1. Each battery module has one slave BMS circuitry inside;

2. Master BMS circuitry(we named BMU) collect all information from each battery module through

RS485, then decide to cut-off the contactor or not;

3. We strongly recommend customer to use two contactors (one for charge and another for

discharge) in the battery system.

4. We can connect more battery modules in parallel to expand the system capacity

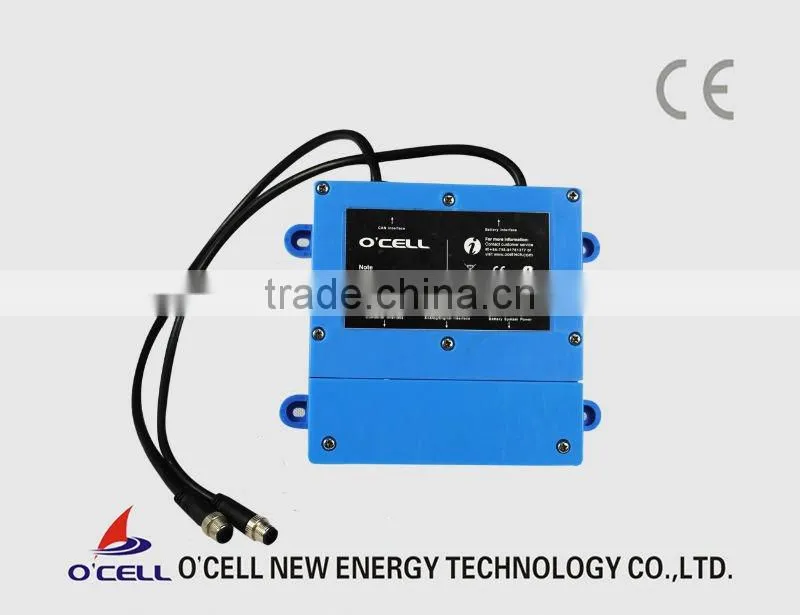

BMU Photo

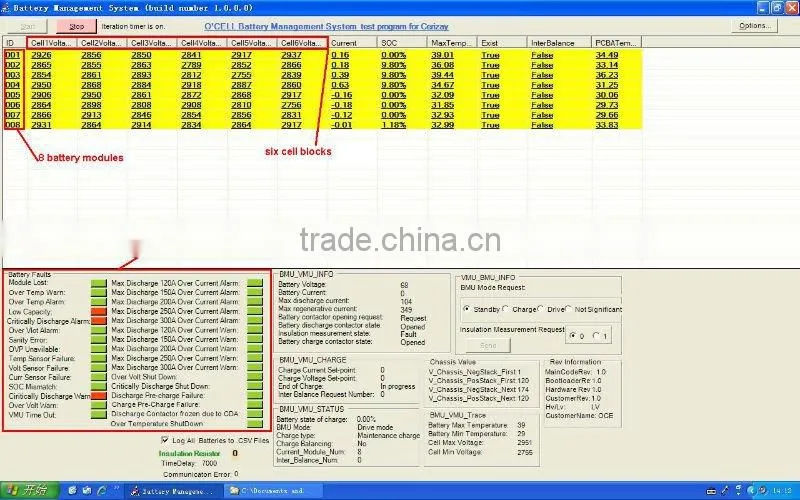

Monitoring Software (Need USB-CAN Adapter)
