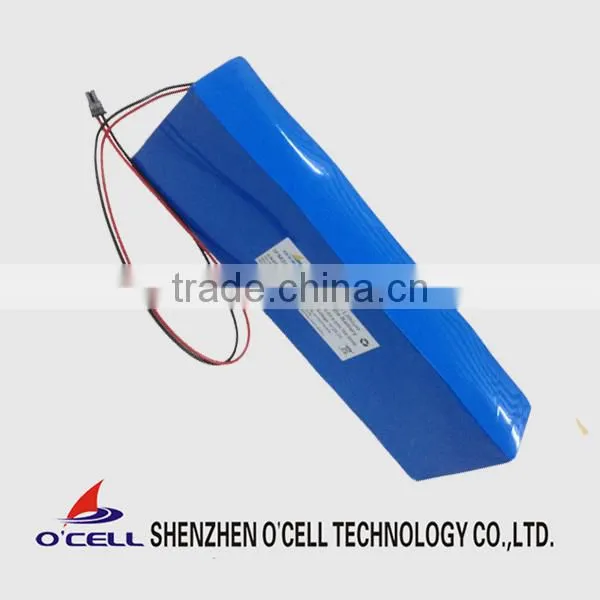

24V 10AH LiFePO4 Battery Pack

Specifications

24V 20Ah LiFePO4 battery
1.new lifepo4 technology
2.environmentally friendly
3.long cycle-life,over 2000cycles
4.safety

Detailed Product Description



25.6V 10Ah LiFePO4 Standard Battery Pack for Backup Power System

25.6V 20Ah LifePO4 Battery Pack for  Backup Power System, Floor Wash Machine, UPS,etc.



Quick Details:

1.Type: Lifepo4

2.Nominal Voltage:25.6V

3.Rated Capacity:10.0Ah

4.Minimal Capacity:19.0Ah

5.Size:L80*W50*H270mm



Specification:



No.	Item	General Parameter	Remark
1	Rated Capacity	10.0Ah	Standard discharge (0.2C) after standard charge (0.2C)
2	Minimal Capacity	9.0Ah
3	Nominal Voltage	25.6V
4	Life Expectation	Residual capacity is more than 60% of the rated capacity	1)Charge: CC at 0.2C to 29.2V, then CV till current taper to 0.05C
			2)Rest: 30min.
			3)Discharge: 0.2C to 20.0V
			Temperature:20±5°C
			Carry out 1200cycles
5	Discharge cut-off voltage	2.0V / cell(≥16.0V)	20.0V recommended
6	Charging cut-off voltage	3.9V / cell(≤31.2V)	29.2V recommended
7	Assembly method	IFR26650EC-3.3AH	8S3P
8	Housing material	PVC
9	Standard charge	0.2C constant current (CC) charge to 29.2V,then constant voltage (CV) 29.2V charge till charge current decline to ≤0.05C	Charge time : Approx 7.0h
10	Standard discharge	Constant current 0.2C
		Cut-off voltage 20.0V
11	Maximum Continuous Charge Current	6A at 20°C	Heat will accumulate inside, 2A or less  recommended for better performance and life
12	Maximum Continuous Discharge Current	6A at 20°C
13	Operation Temperature Range	Charge: 0~50°C	60±25%R.H.
		Discharge: -10~50°C
14	Storage Temperature Range	Less than 1 year: 0~25°C	60±25%R.H.
		Less than 3 months:-5~35°C	at the shipment state
15	Approx. Weight	2Kg	Specific energy: 93Wh/Kg
16	Dimension	L80*W50*H270mm	Energy density: 116Wh/L
		(BCI Group: U1R)
17	Balancing function	Yes
18	Short circuit protection	Recover after charging
