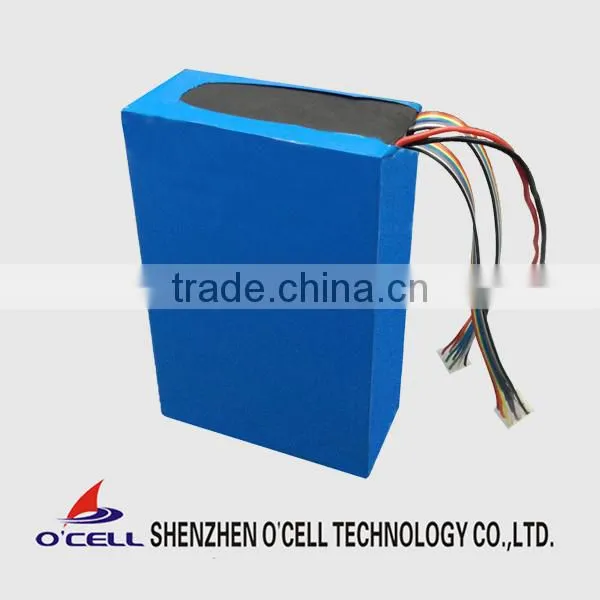

24V 20AH LiFePO4 Battery Pack

24V 20AH LiFePO4 Battery Pack thumbnail-1
24V 20AH LiFePO4 Battery Pack photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
OCELL
Model Number:
IFM24-200E3
Contact Supplier Request Quote Chat Now
Ocell New Energy Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name OCELL
Model Number IFM24-200E3
Type Li-Ion
Nominal Voltage Other, 25.6V
Size Other, 155 mm x 70mm x 233 mm (L*W*H)
Nominal Capacity 20Ah

Specifications

24V 20Ah LiFePO4 battery
1.new lifepo4 technology
2.environmentally friendly
3.long cycle-life,over 2000cycles
4.safety

Detailed Product Description





25.6V 20Ah LiFePO4 Standard Battery Pack for Backup Power System

25.6V 20Ah LifePO4 Battery Pack for  Backup Power System, Floor Wash Machine, UPS,etc.



Quick Details:

1.Type: Lifepo4

2.Nominal Voltage:25.6V

3.Rated Capacity:20.0Ah

4.Minimal Capacity:19.0Ah

5.Size:L155*W70*H233mm



Specification:



No. Item General Parameter Remark
1 Rated Capacity 20.0Ah Standard discharge (0.2C) after standard charge (0.2C)
2 Minimal Capacity 19.0Ah
3 Nominal Voltage 25.6V
4 Life Expectation Residual capacity is more than 60% of the rated capacity 1)Charge: CC at 0.2C to 29.2V, then CV till current taper to 0.05C
2)Rest: 30min.
3)Discharge: 0.2C to 20.0V
Temperature:20±5°C
Carry out 1200cycles
5 Discharge cut-off voltage 2.0V / cell(≥16.0V) 20.0V recommended
6 Charging cut-off voltage 3.9V / cell(≤31.2V) 29.2V recommended
7 Assembly method IFP8078230EC-10AH 8S1P
8 Housing material ABS+PC Flame Retardant Plastic
9 Standard charge 0.2C constant current (CC) charge to 29.2V,then constant voltage (CV) 29.2V charge till charge current decline to ≤0.05C Charge time : Approx 7.0h
10 Standard discharge Constant current 0.2C
Cut-off voltage 20.0V
11 Maximum Continuous Charge Current 6A at 20°C Heat will accumulate inside, 2A or less  recommended for better performance and life
12 Maximum Continuous Discharge Current 6A at 20°C
13 Operation Temperature Range Charge: 0~50°C 60±25%R.H.
Discharge: -10~50°C
14 Storage Temperature Range Less than 1 year: 0~25°C 60±25%R.H.
Less than 3 months:-5~35°C at the shipment state
15 Approx. Weight 5Kg Specific energy: 93Wh/Kg
16 Dimension L155*W70*H233mm Energy density: 116Wh/L
(BCI Group: U1R)
17 Balancing function Yes
18 Short circuit protection Recover after charging
