Home > Electrical & Electronics > Battery, Storage Battery & Charger > Battery Pack > Frog Style Ebkie Battery 24V LiFePO4 Battery
US$ 100 - 300
MOQ: 1 Pack
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
O'CELL
Model Number:
IFM24-100E2-01
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
25.6V 80Ah LiFePO4 BatteryUS$ 1 - 2,000MOQ: 1 Set -
18650 LiFePO4 24V9Ah Battery Pack for E-bikeUS$ 100 - 200MOQ: 1 Pack
-
LiFePO4 24V80Ah Battery With Plastic SLA CaseUS$ 1 - 1MOQ: 1 Pack
-
LiFePO4 24V100Ah Battery Pack With SLA CaseUS$ 1 - 999MOQ: 1 Pack
-
Solar Battery Pack 24V55AhNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
O'CELL
Model Number
IFM24-100E2-01
Composed Type
Other, Series and Parallel
Type
Other, LiFePO4
Components
Other, IFR26650EC-3.4Ah
Size
355*150*155mm(small frog style), 355*150*155mm(small frog style)
Voltage
25.6v
Weight
3.5Kg, 3.5Kg
Nominal Capacity
10aH
Application
ebike e biciycle

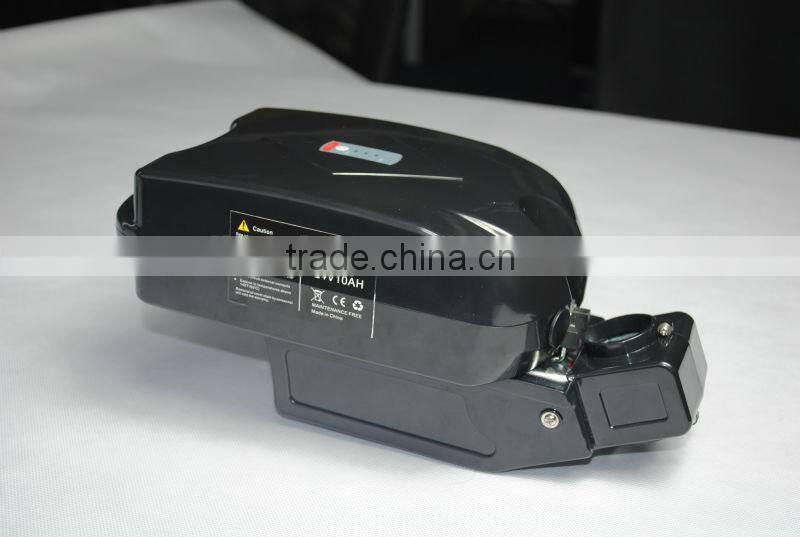

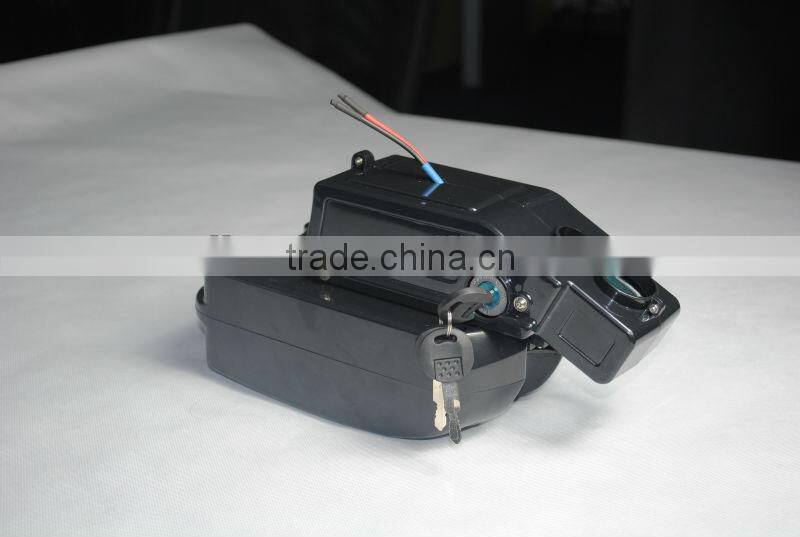

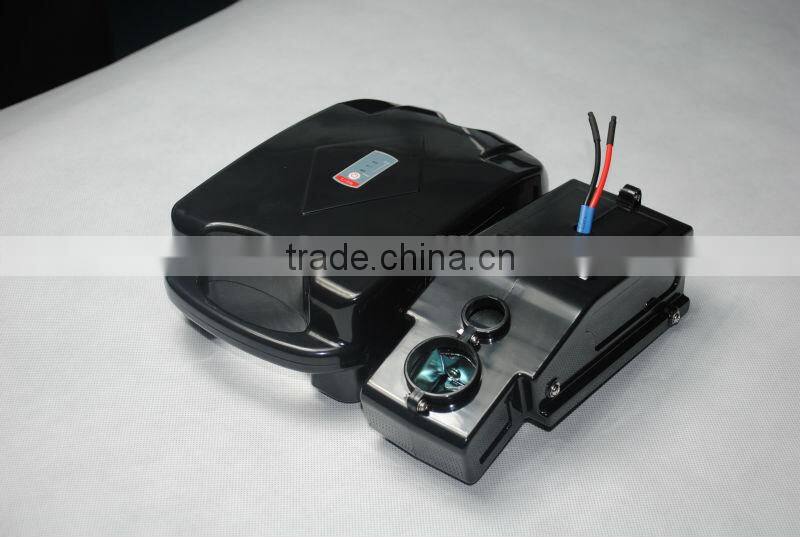

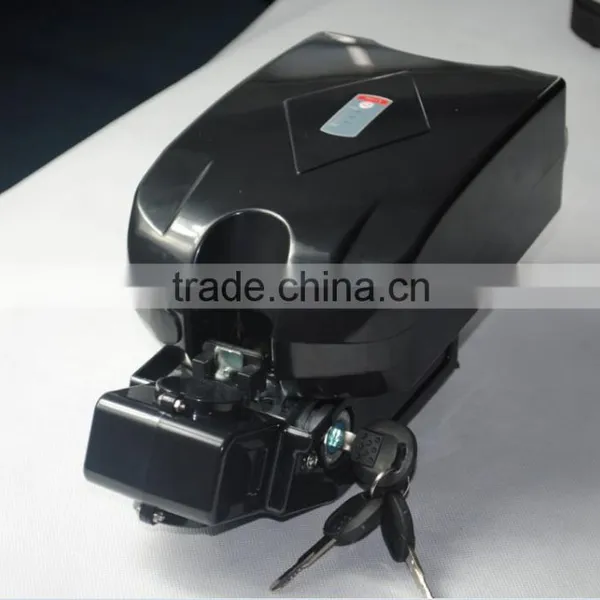

Frog battery 24V10Ah Lifepo4 battery for ebike/escooter
Specification:
| Model | IFM24-100E2-01 |
| Dimension | 355*150*155mm |
| Weight | 3.5kg |
| Nominal Voltage | 25.6V |
| Dischange cut -off voltage | 20V |
| Charge cut-off voltage | 31.2V |
| Standard charge voltage | 29.2V |
| Nominal capacitty | 10Ah |
| Standard charge current | 2A |
| Max charge current | 5A |
| working temperature | charge 0-50°c discahrge -20~50°c |
| Charger | CC/CV |
| Storage temperature | -20~50°c |
| Circle life | 1000 cycles (80% DOD) |
| Motor | 350w or below |
Special standards can be made to order ! please send inquiry for more information about price and others
Welcome to visit our factory!!
