LiFePO4 24V100Ah Battery Pack With SLA Case
US$ 1 - 999
MOQ: 1 Pack
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
O'CELL
Model Number:
24V100Ah
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
O'CELL
Model Number
24V100Ah
Composed Type
Other, Series and parallel
Type
Li-Ion
Components
Other, LiFePO4
Size
520*158*246mm
Voltage
24V
Weight
32Kg
Nominal Capacity
110Ah
Application
EV solar street lamp

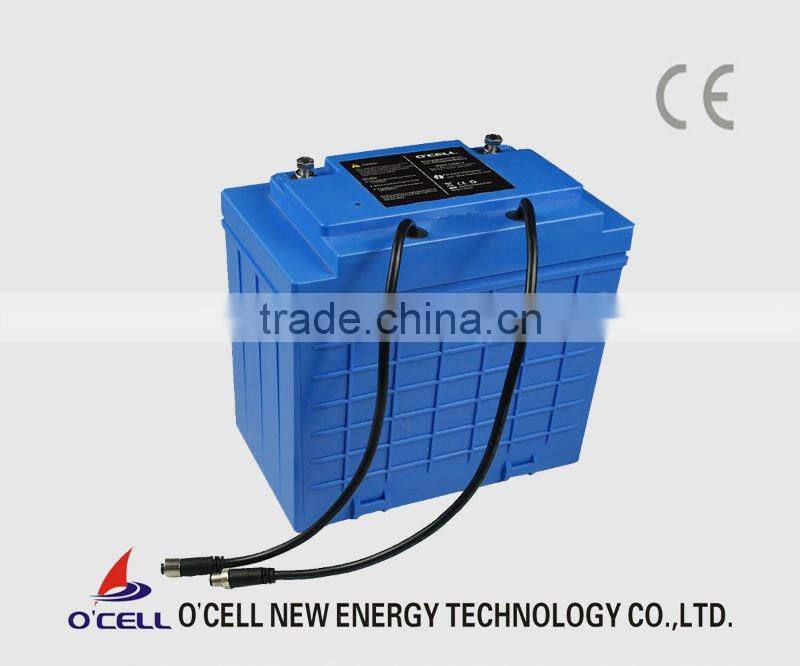

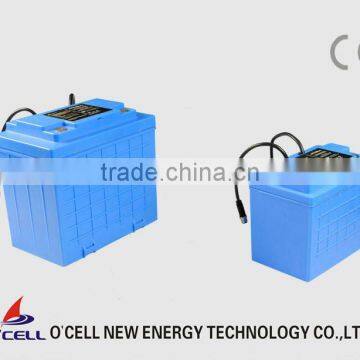

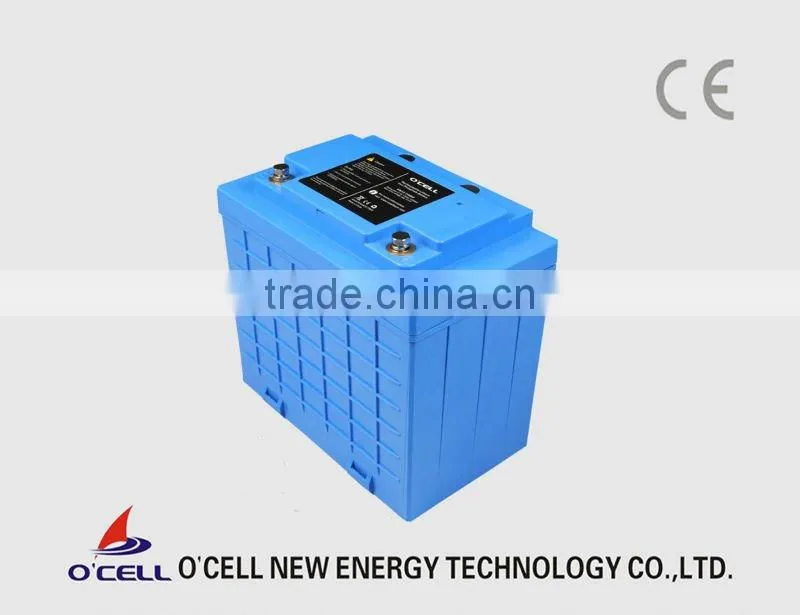

O'cell 24V110Ah battery pack with SLA case
Usage Note:

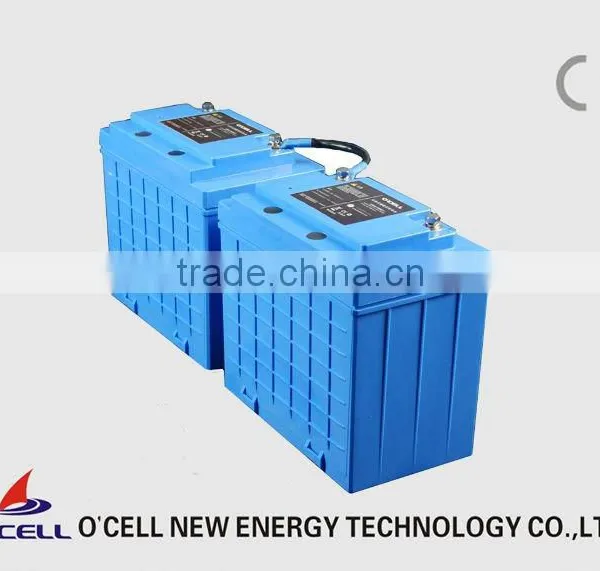

Our 24V110Ah module is composed with 12V110Ah LiFePO4 battery module. The 12V110Ah module is assembled with LiFePO4 cells. It can be used individual and can be contacted in series or parallel to achieve given voltage and capacity.
Feature:
1) Ultra-long cycle: above 1000 times(80% DOD)
2) Light weight, equal capacity 1/3 lead acid battery weight.
3) Good performance at high temperature.
4) Low self-discharge rate: less than 3%monthly.
5) No memory effect.
| Item | Unit | Specification |
| Nominal voltage | voltage | 24 |
| Nominal capacity | Ah | 110 |
| Discharge current | Amps | 120 |
|
Peak discharge current (30S) |
Amps | 240 |
| Dimension | mm | 520*158*246 |
| Standard charge current | Amps | 60 |
| Rated charge current | Amps | 120 |
| Cut-off charge voltage | Voltage | 29.2 |
| Cut-off discharge voltage | Voltage | 20 |
|
Working temperature (discharge) |
°c | -10°c-60°c |
|
Working temperature (charge) |
°c | -10°c-45°c |
| Life cycle(80% DOD)2C | 1000 | |
| Warranty | Year | 1 |
