Solar Battery pack 24V55Ah
- 2000 Pack / Packs per Month
- Shenzhen
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | OCELL, OCELL | |
Model Number | 24V55AH, 24V55AH | Type | Other, lifepo4 | |
Nominal Voltage | Other, 24V | Size | Prismatic | |
Nominal Capacity | 55AH, 55AH |
Standard Package/Compact design
Product Description
Specifications
Solar Battery pack 24V55AhFive times cycle life than SLA battery
Lighter weight, Smaller size
Higher safety

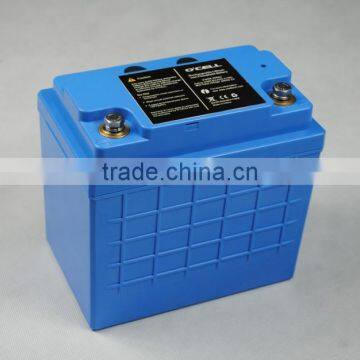

Solar Battery pack 24V55AH
O'CELL Solar Battery pack24V55AH with SLA Case
Item | Unit | Specifications |
Nominal Capacity | Ah | 55 |
Nominal Voltage | Voltage | 25.6 |
DimensionH×W×L | mm | 260*158*248mm |
Weight | kg | 15.5 |
Max. Charge Voltage | Voltage | 31.2 |
Max. Discharge Voltage | Voltage | 29.2 |
Charge Current | Amps | 10.0 |
Charge Voltage | Voltage | 29.2 |
Max. Charge Current | Amps | 10A 0.1CA |
Max. Discharging Current | Amps | 50A 1CA |
Storage Temperature Range | oC | -20oC--70oC |
Working Temperature (Charging) | oC | -10oC--45oC |
Working Temperature (Discharging) | oC | -20oC--60oC |
Relative Humidity | N/A | 45%--75%RH |
Life Cycle(2C,80%DOD) |
| 1000 |
Life Cycle(1C,80%DOD) |
| 2000 |
Warranty | Year | 1 |
Usage Notes:
Our Solar Battery pack 24V55Ah , with nominal voltage of 24V and capacity of 55Ah is assembled with high power LiFePo4 cells.It can be used individually and can be connected in serial or parallel to achieve given voltage and capacity.
Features:
a. Extremely safe and stable chemistry: PCB and/or BMS built inside to protect the battery.
b. Long life-cycle: Best can up to 2000 times recycles, 8 times of Lead acid battery.
c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
d. Good performance at high temperature.
e. Low self-discharge rate, less than 3% monthly.
f. No memory effects.
g. Environment friendly: Non-toxic, non-contaminating and no rare metal.
Company Profile

O'CELL New Energy Technology Co., Ltd., established in Oct.2008, is a high-tech enterprise which involves in research, production, sales and services of qualified Lithium Iron Phosphate (LiFePO4) cell, battery pack, reliable battery management system and one-stop power solution, for a wide range of applications worldwide including HEV, EV, AGV, Solar & Wind Power Generation System, UPS, Lighting, Toys, etc. O'CELL's manufacturing facilities are ISO9001:2008 and ISO14001:2004 registered. It's products are compliant with CE, RoHS and have passed UN transportation testing, which is required for international transportation of all lithium batteries. O'CELL people are the engine of our success today and in the future. They are motivated to keep well informed about the most recent technological developments and modernization management. Meanwhile, O'CELL continues to invest in research and development in order to take a leadership role in advanced lithium battery technology. O'CELL factory covers over than 96,000m2 and bases in Yichang which is famous for Three Gorges and the biggest water power center in the world. Taking the advantage of sufficient electricity, O'CELL will pass the benefit to our customers. O'CELL sincerely expects to cooperate with our customers for mutual benefit and common development. O'CELL also hopes that we can contribute to new energy development and green circular economy.
