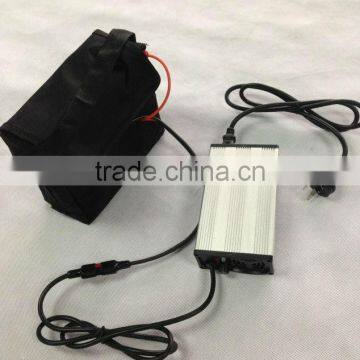

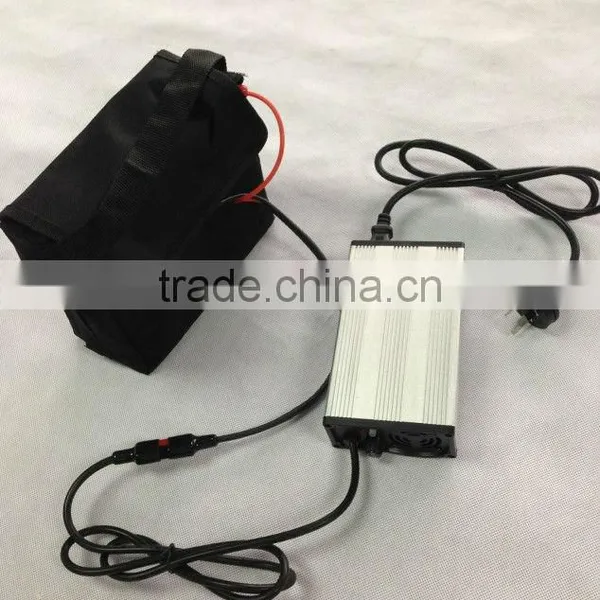

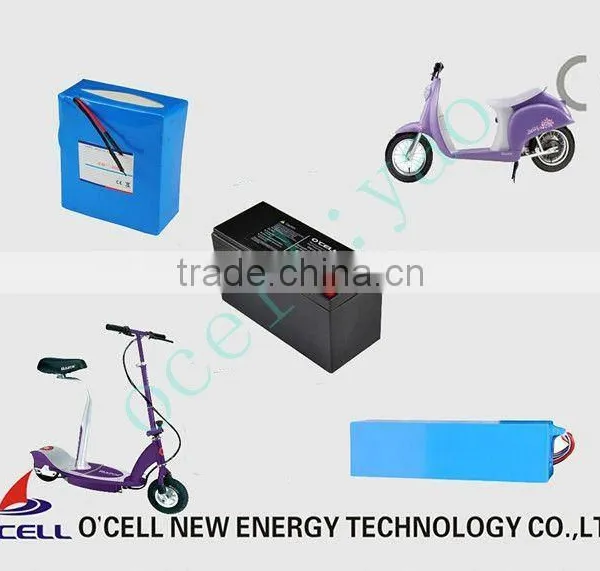

Factory direct 12V20Ah Lithium Ion Battery with BMS and charger
- 10000 Pack / Packs per Month
- Shenzhen Hongkong
- T/T
- LiFePO4 12V40AH with gas fuel gauge
- LiFePO4 Storage Battery 24V 200AH
- Lithium LiFePO4 battery pack 24V 30Ah with built-in BMS
- 24V 30Ah LiFePO4 battery pack with built-in protection circuit board (PCB)
- 24V e bike lifepo4 battery
- LiFePO4 24V 100Ah battery pack for solar power system with LCD screen and iron case
Product Details
Brand Name: | O'CELL | Model Number: | IFM12-200E3-SMBUS | Composed Type: | Other, 4S6P |
Type: | Li-Ion | Components: | Other, LiFePO4 | Size: | W*76*H166*L181mm |
Voltage: | 12.8V | Weight: | 2.75kg | Nominal Capacity: | 19.2AH |
Application: | Golf cart/golf trolley |
Packaging Details
Standard export package
Product Description

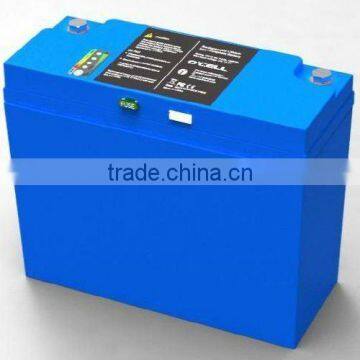

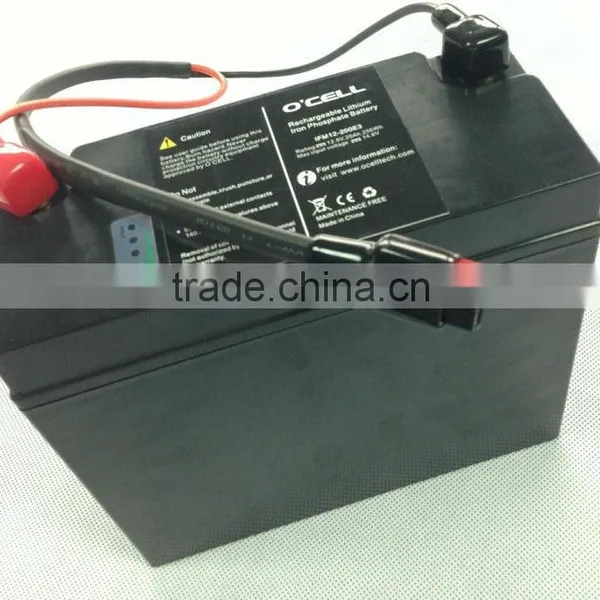

12.8V20AH golf cart LiFePO4 battery
New Product:

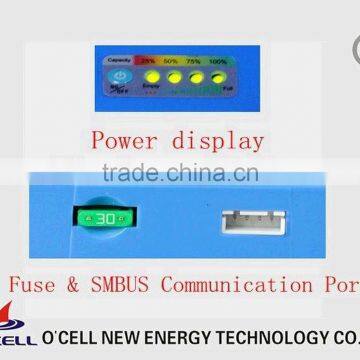

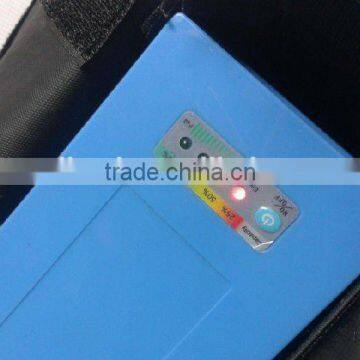

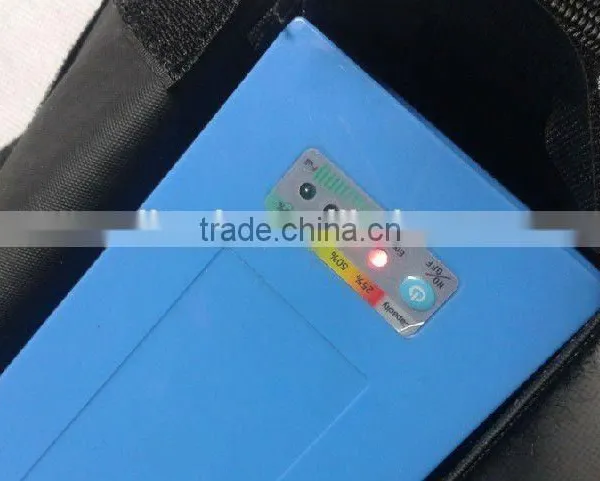

LED Display available
Communication function available
More capacity can be choose
Two round more than 36 holes.
Easy to carry
Capacity can be expand
Spec sheet:
Item | Spec |
Nominal Voltage | 12.8V |
Nominal Capacity | 20Ah |
Structure | 4S6P |
Battery cell | 26650 3300mah |
Dimension | W76*H166*L181mm |
Internal resistance | ≤100mΩ |
Relative humidity | ≤93% RH |
Overcharge Protection Voltage | 4.0V±0.025V ( for random single cell) |
Over discharge Protection Voltage | 2.2V±0.025V ( for random single cell) |
Discharge Cutoff Voltage | 8.0V |
Standard Charge Method | Constant 4A to 14.6V, then constant 14.6V with current taper to 0.2A |
Max. Charge Current | 18A |
Max Continuous Discharge Current | 18A |
Peak Discharging Current | 20A |
Max Discharge Voltage | 14.6V |
Life Cycle | 2000 |
Charge Temp. | 0-45 |
Requirement of Voltage on Transportation | 13.2V- 13.6V |
Advantage:
1 Ultra-Long Lifecycle
2 Lighter Weight, Smaller Size
3 Higher Safety and Green
4 Maintenance Free
The advantage of LiFePO4 battery:
1. Smaller size, normally 1/3 as conventional SLA battery
2. Lighter weight, normally 1/3 as conventional SLA battery;
3. Longer cycle-lifespan battery is about 300cycles while LiFePO4 battery can be 1200 cycles or more;
4. Good performance in deep discharge, LiFePO4 battery can be 100%DOD while SLA battery is 60%-80%DOD, which means LiFePO4 battery will need less capacity in the same condition;
5. The lead acid battery will be end of life and price will increase.
6. Environmentally friendly of LiFePO4 battery.
Delivery time:
15 days for samples
30 days for mass order.
Payment:
L/C, T/T, Paypal.
Payment in advance
Company Profile
O'CELL New Energy Technology Co., Ltd., established in Oct.2008, is a high-tech enterprise which involves in research, production, sales and services of qualified Lithium Iron Phosphate (LiFePO4) cell, battery pack, reliable battery management system and one-stop power solution, for a wide range of applications worldwide including HEV, EV, AGV, Solar & Wind Power Generation System, UPS, Lighting, Toys, etc.
O'CELL's manufacturing facilities are ISO9001:2008 and ISO14001:2004 registered. It's products are compliant with CE, RoHS and have passed UN transportation testing, which is required for international transportation of all lithium batteries.
O'CELL people are the engine of our success today and in the future. They are motivated to keep well informed about the most recent technological developments and modernization management. Meanwhile, O'CELL continues to invest in research and development in order to take a leadership role in advanced lithium battery technology.
O'CELL factory covers over than 96,000m2 and bases in Yichang which is famous for Three Gorges and the biggest water power center in the world. Taking the advantage of sufficient electricity, O'CELL will pass the benefit to our customers. O'CELL sincerely expects to cooperate with our customers for mutual benefit and common development. O'CELL also hopes that we can contribute to new energy development and green circular economy.
