Home > Electrical & Electronics > Battery, Storage Battery & Charger > Battery Pack > 26650 Rechargeable Lithium LiFePO4 Battery Pack 12V 200Ah With Built-in PCM
26650 Rechargeable Lithium LiFePO4 Battery Pack 12V 200Ah With Built-in PCM
US$ 1,850 - 2,150
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
O'CELL
Model Number:
IFM12-2000E2
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
26650 12V 20Ah LiFePO4 Battery Pack With Built-in BMSUS$ 75 - 105MOQ: 50 Pieces -
LiFePO4 Battery Pack 12V 300Ah Recreational Vehicle BatteryUS$ 2,000 - 2,400MOQ: 1 Piece
-
PVC Wrapped 12.8V 9Ah LiFePO4 Battery Pack With Built-in PCBUS$ 40 - 50MOQ: 100 Pieces
-
12.8V 3.3Ah LiFePO4 Lithium Battery Pack & Female Mini Tamiya ConnectorUS$ 15 - 20MOQ: 200 Pieces
-
12.8V 110Ah LiFePO4 Battery PackUS$ 570 - 650MOQ: 10 Pieces
Place of Origin
Hubei, China
Brand Name
O'CELL
Model Number
IFM12-2000E2
Composed Type
Other, 4S60P
Type
Other, LiFePO4
Components
Other, 26650 3.2V 3300mAh
Size
520 x 270 x 220mm
Voltage
12.8V
Weight
25
Nominal Capacity
200Ah
Application
Energy Storage
Product: LiFePO4 Battery Pack 12.8V 200Ah
Model No.: IFM12-2000E-C-26650-01
1. Parameters
- Nominal Voltage: 12.8V
- Typical Capacity: 200Ah (0.2C, 25 degree Celsius)
- Configuration: IFR26650EC-3.3Ah, 4S60P.
- Maximum charge voltage: 14.6V
- Discharge cut-off voltage: 10.0V
- Charge current: ≤30A
- Maximum continuous discharge current: ≤30A
- Over current protection: 80±10A (15 - 35mS)
- Inner resistance: 50mΩ
- Housing material: ABS.
- Dimension:
- Weight: 25kG.
- Dimension: 520 x 270 x 220mm
- Life expection: higher than 70% of the initial capacity of the cells. carry out 2,000 cycles @ 100% DOD.

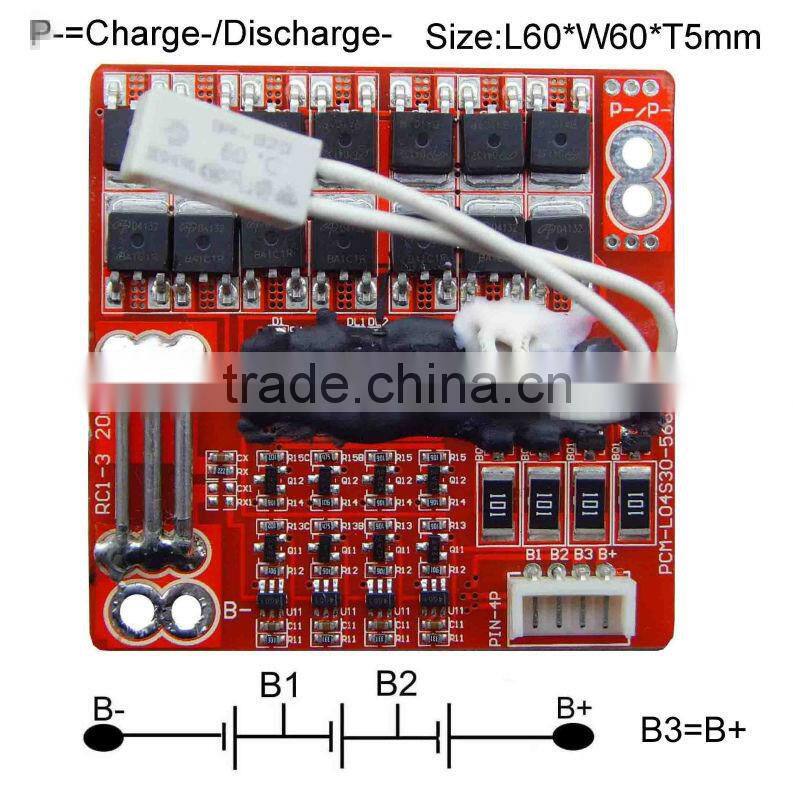

2. BMS / PC
- Temperature switch to detect battery temperature, control discharge MOSFET;
- Maximum continuous operating current 30A, charge / discharge same port;
- Suitable for 3-4 lithium ion and lithium iron phosphate battery pack;
- Balancing function;
- Dimensions: L60 * W60 * T5mm;
| No. | Test item | Criterion | ||
| 1 | Voltage | Charging voltage | DC:14.4V 3.6V/Cell | |
| Balance voltage for single cell | 3.60±0.03V | |||
| 2 | Current | Balance current for single cell | 72±5mA | |
| Current consumption | ≤15μA | |||
| Maximal continuous charging current | 30A | |||
| Maximal continuous Discharging current | 30A | |||
| 3 | Over charge Protection | Over charge detection voltage | 3.90±0.025V | |
| Over charge detection delay time | 0.5S—1.5S | |||
| Over charge release voltage | 3.80±0.05V | |||
| 4 | Over discharge protection | Over discharge detection voltage | 2.0±0.05V | |
| Over discharge detection delay time | 50mS—150mS | |||
| Over discharge release voltage | 2.3±0.1V | |||
| 5 | Over current protection | Over current detection voltage | 0.1±0.025V | |
| Over current detection current | 80±20A | |||
| Detection delay time | 5ms—15ms | |||
| Release condition | cut load | |||
| 6 | Short protection | Detection condition | Exterior short circuit | |
| Detection delay time | 200-500us | |||
| Release condition | cut load | |||
| 7 | Resistance | Protection circuitry | ≤20mΩ | |
| 8 | Temperature | Operating Temperature Range | -40~+85°C | |
| Storage Temperature Range | -40~+125°C | |||
3. Application
- Solar energy
- Medical equipment
- UPS
- Material Handing
- Floor cleaning
- Electric mobility
4. Warranty
The period of warranty is 24 months from the date of shipment. O'CELL guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
5. Certifications
6. Transportation
- By sea
- By air
- UPS, DHL, Special Line
- MSDS / SDS report
