Manufacturer of high speed hydraulic winch
Hydraulic winch, compact winch, hydaulic power winch, crane winch, drilling rig hydraulic winch, marine winch, boat winch, dredger winch, wireline winch
Hydraulic or electric driven planetary winches from 1 up to 100T. Available in various types. These hoisting winches are supplied with a planetary gearbox. We can supply hoisting winches with either radial piston motor or axial piston motor. These hoists offer excellent lifting solutions.
We are the one stop destination for superior quality Industrial Winches. we manufacture the most comprehensive range of Hydraulic winches and Electric winches. Our range includes Pulling winches, Lifting winches, Marine winches and Customized winches. Our strength is to develop customized Winch solution based on tried and tested fundamental technologies, specially adapted to each individual customer. We have manufacturing facilities at multiple locations in the world. We are the market leaders in China and a preferred brand globally.
Hoisting hydraulic winch
Hydraulic recovery winch
Free fall hydraulic winch (Pulling hydraulic winch)
Application: Hydraulic mobile crane, pick n carry crane, overhead working truck, lorry mounted crane, mirror crane, drilling rig, piling machine, Ship, and truck
Interchanged with: Dinamic oil hydraulic winches (BH, NP, P, S, SE series), Brevini hydraulic winch (BW series)
We are the manufacturer of hydraulic winch from China, We have more than 20 years experiences in designing and manufacturing various types of hydraulic winch for widely application.
For the winch we offer, it can be hoisting hydraulic winch, pulling winch, drilling rig winch, dredger winch, marine winch, crane winch, boat winch, wrecker winch, truck winch, towing winch, etc.
The advantage to choose our company:
1. competitive price
we are the manufacturer of hydraulic winch. We can offer directly price to the customer without any other added value.
2. professional technical support
we have experienced technical engineers who are devoted in design and manufacture various types of hydraulic winch. We can offer different technical suggestions based on different working conditions and different applications.
3. custom design service
We can design and manufacture the winch with different dimensions and specifications based on customer requirements.
4. short delivery time
based on different design of winch, the delivery time is varies from 3-25 days.
5. on time service
we are the manufacturer rather than any distributor, we can get technical support from our engineer directly and offer you the after sale service on time.

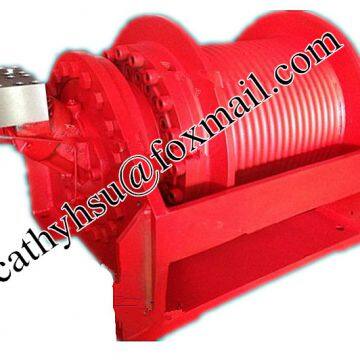

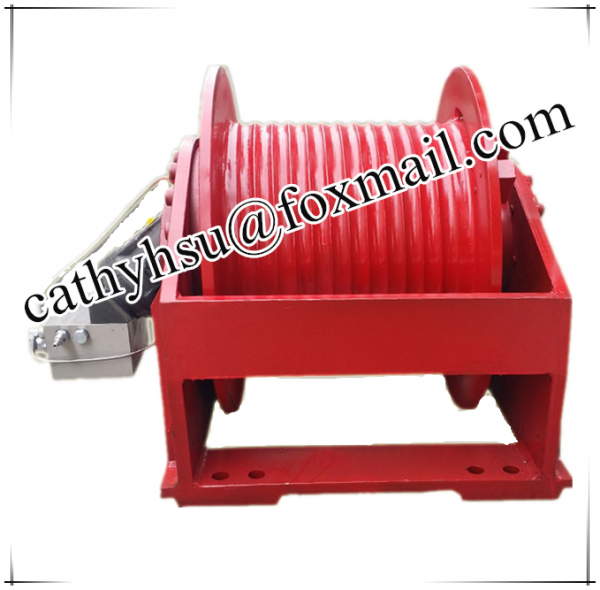

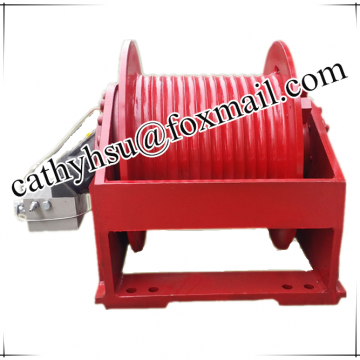

For the winch in the picture, it is our AF series high-power hoisting winches, which are widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery.It is the best choice for those situations which requires large power, high speed and high security.
Features:
1.Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.
2.Normally closed friction type brake, high braking torque, safe and reliable operating.
3.Small volume, compact structure and high transmission efficiency.
4.Axial fixed or variable hydraulic motor with long life operating.
5.Mounting frame is available on request.
6.Balance valve, shuttle valve, limit switch and other accessories are also available on request.
Specification:
| Model | Pull Force (KN) | Rope Speed (m/min) | Diameter of rope (mm) | Capacity of rope (m) | Working pressures diff. (Mpa) | Flow Rate (L/min) | |
| 1st layer | top layer | ||||||
| AF5700 | 5700 | 4500 | 60 | 16 | 107 | 25 | 160 |
| AF7700 | 7700 | 6000 | 52 | 18 | 118 | 25 | 180 |
| AF9600 | 9600 | 7500 | 43 | 20 | 118 | 25 | 180 |
| AF12800 | 12800 | 9800 | 43 | 24 | 118 | 27 | 220 |
| AF15000 | 15000 | 12800 | 39 | 24 | 110 | 25 | 220 |
| AF18500 | 18500 | 14600 | 85.3 | 28 | 162 | 27 | 380 |
| AF25000 | 25000 | 19500 | 48.1 | 30 | 162 | 27 | 380 |
| AF30000 | 30000 | 23000 | 32 | 32 | 169 | 30 | 380 |
| AF45000 | 45000 | 34700 | 32 | 42 | 169 | 30 | 380 |

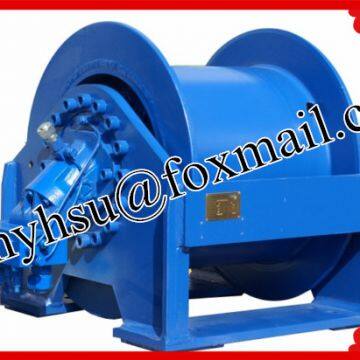

Picture for reference:
Factory overview
Package
Contact:
Cathy
Skype: kemercathy
Whatsapp: +8613486645746
Email: cathyhsu@foxmail.com
