Rexroth Hydraulic Motor A2FM12, A2FM16, A2FM23, A2FM28, A2FM32, A2FM45, A2FM56, A2FM63, A2FM80, A2FM90, A2FM107, A2FM125, A2FM160, A2FM180, A2FM200, A2FM250

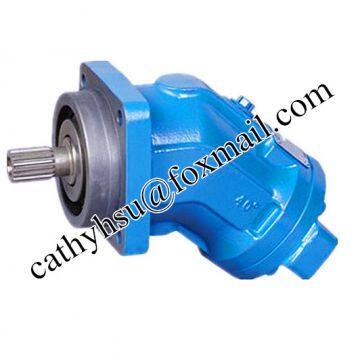

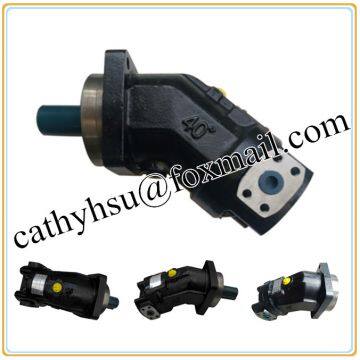

This fixed axial displacement piston motor A2FM, bent axis design, suitable for hydrostatic drives in open and closed circuits. It is widely applied inmobile and industrial applications .Output speed depends on the flow capacity ofthe pump and the displacement of the motor. The torque increase with thepressure differential between the high and low pressure side and with increasingdisplacement. And it can be completely interchanged with Rexroth A2FM series hydraulic motor.
Features
1. Counterbalance valve can be fitted
2. Option: Integrated pressure relief valve
3. Option: Integrated or built - on flushing and boost pressurevalves
4. Suitable for use as pump in closed circuits
5. Long - life bearings available (sizes 250 - 1000)
6. Totally interchangeable with original Rexroth A2FM series HydraulicMotor
Technical parameters
Size |
A2FM |
A2FM10 |
A2FM12 |
A2FM16 |
A2FM23 |
A2FM28 |
A2FM32 |
||
Displacement |
Vg |
cm3 |
10,3 |
12 |
16 |
22,9 |
28,1 |
32 |
|
Speed 1) |
nmax |
rpm |
8000 |
8000 |
8000 |
6300 |
6300 |
6300 |
|
△p=400bar |
Tmax |
Nm |
65 |
76 |
100 |
144 |
178 |
204 |
|
Size |
A2FM |
A2FM45 |
A2FM56 |
A2FM63 |
A2FM80 |
A2FM90 |
A2FM107 |
||
Displacement |
Vg |
cm3 |
45,6 |
56,1 |
63 |
80,4 |
90 |
106,7 |
|
Speed 1) |
nmax |
rpm |
5600 |
5000 |
5000 |
4500 |
4500 |
4000 |
|
△p=400bar |
Tmax |
Nm |
290 |
356 |
400 |
508 |
572 |
680 |
|
Size |
A2FM |
A2FM125 |
A2FM160 |
A2FM180 |
A2FM200 |
A2FM250 |
|||
Displacement |
Vg |
cm3 |
125 |
160,4 |
180 |
200 |
250 |
||
Speed 1) |
nmax |
rpm |
4000 |
3600 |
3600 |
2750 |
2700 |
||
△p=400bar |
Tmax |
Nm |
796 |
1016 |
1144 |
1272 |
- |
||
