Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > RXF Fuse Wirewound Fixed Resistors
US$ 0.01 - 0.1
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
shagon
Model Number:
RXF
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RX21 Coating Wirewound Fixed ResistorsUS$ 0.01 - 0.1MOQ: 2000 Pieces -
Low Resistance Jump Wire ResistorsUS$ 0.01 - 0.1MOQ: 2000 Pieces
-
Zero Ohm ResistorsUS$ 0.01 - 0.1MOQ: 10000 Pieces
-
RI40 Glass Glaze Fixed ResistorsUS$ 0.01 - 0.1MOQ: 10000 Pieces
-
RF10 Coating Fuse Fixed ResistorsUS$ 0.01 - 0.1MOQ: 10000 Pieces
Place of Origin
Jiangsu, China
Brand Name
shagon
Model Number
RXF
Type
Other, Fixed Resistor, fixed
Technology
Other, Wirewound, wirewound
Package Type
Surface Mount
Resistance
0.47-120Ω, 0.47-120Ω
Resistance Tolerance
5-10%
Rated Power
1w
Temperature Coefficient
250ppm/℃, 250ppm/℃
Operating Temperature
-55-155℃
Specifications
RXF fuse wirewound fixed resistors: coated with non-combustion paint, high stability.
Product Description
RXF fuse wirewound fixed resistors
Features
• ROHS compliant and lead&Halogen-Free
• low inductance , high stability.
coated with non-combustion paint
Applications
• Computers & peripheral, PC Mother board
• Telecom equipment, Loud speakers

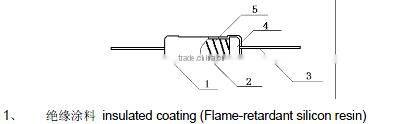

Dimension & structure

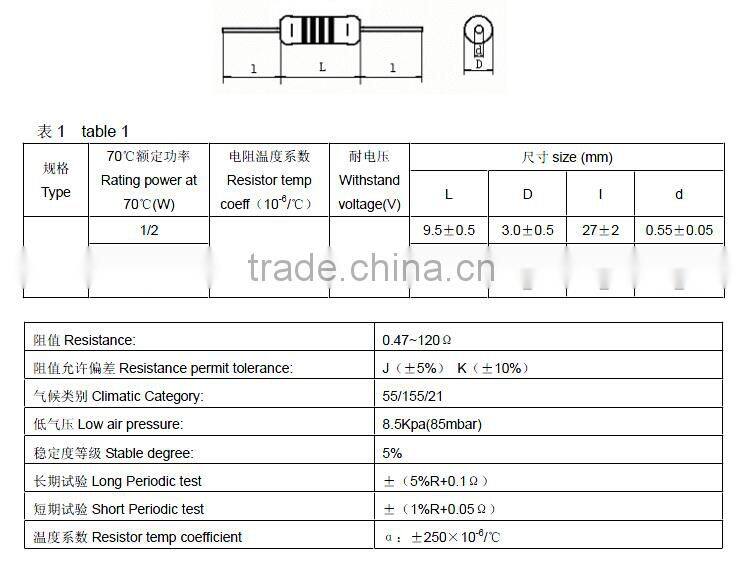

Electrical specification
Our Services
OEM are available
Company Information
certificate:
Products include: wire-wound resistor, metal film resistor, precision resistor, oxide film resistor, fusing resistor, porcelain shell resistor, glass glazer resistor, varistors, thermistor, chip thermistor, carbon film resistor, chip inductive magnetic bead etc. which are widely used in such fields as communications, auto, computer, office equipment, lighting, domestic appliances, instruments and meters.
our factory produce about 0.5 billion resistors annually .
