Home > Products > resistor & IC > RX21 coating wirewound fixed resistors
RX21 coating wirewound fixed resistors
USD $0.01 - $0.1
/ Piece
2000 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | shagon | |
| Model Number | RX21 | Type | Other, Fixed Resistor, fixed | |
| Technology | Other, Wirewound, wirewound | Package Type | Surface Mount | |
| Resistance | 0.1-3.6KΩ, 0.1-3.6KΩΩ | Resistance Tolerance | 5-10% | |
| Rated Power | 1-10w | Temperature Coefficient | 250ppm/℃, 250ppm/℃ | |
| Operating Temperature | -55-155℃ |
Product Description
Specifications
RX21 coating wirewound fixed resistors: coated with non-combustion paint, high stability.
Product Description
RX21 coating wirewound fixed resistors
Features
• ROHS compliant and lead&Halogen-Free
• low inductance , high stability.
coated with non-combustion paint
Applications
• Computers & peripheral, PC Mother board
• Telecom equipment, Loud speakers

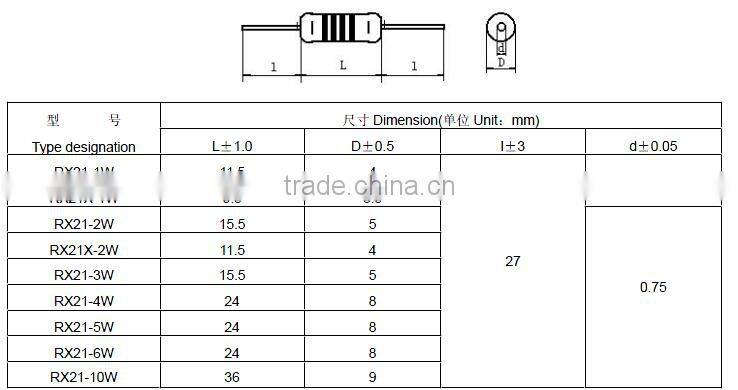

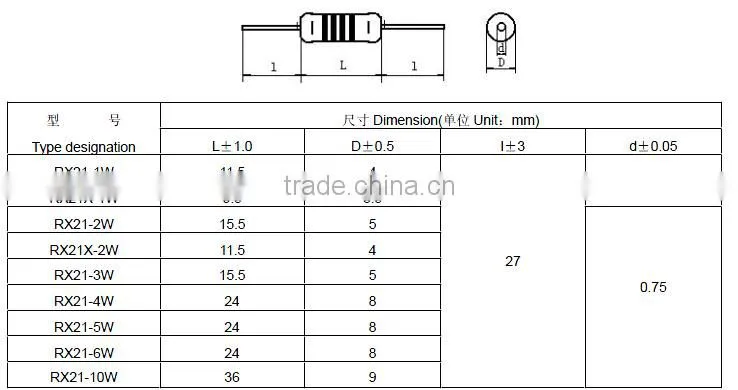

Dimension & structure

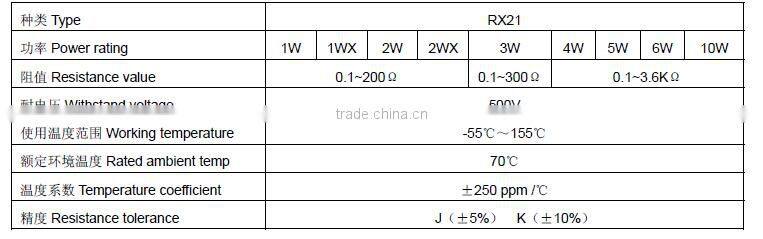

Electrical specification
