Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Automatic | |
| Max. Swing Diameter | mm | Place of Origin | Jiangsu, China | |
| Brand Name | SMAC | Model Number | HKS Series | |
| Voltage | 380V/220V/400V | Power(W) | 0.37KW OR 1.5KW | |
| Dimension(L*W*H) | 910X330X640MM/1150X570X1180MM | Weight | 160/600KGS | |
| Certification | CE, ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

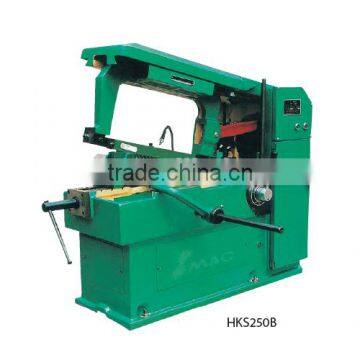

HACKSAW MACHINE
The Machine-Tool Plant which has been producing sawing machine for the past thirty years has recenty developed G7025B sawing machine a new kind of economical cutting machine. It has a new and rational structure, complete functions, and is easy to operate and maintain. Its features are as follows:
It has three opeeds and a wide cutting scope.
It has a high-efficiency arc-push saw whichis one and a half times more efficient than that of normal sawing machines.
It has a new style V-shaped thransmision belt which is very quiet (no louder than 74db)
Its main electrical components are installed inside, thus giving it an elegant outer appearance and rendering if extremely safe.
15901 | 15902 | 15903 | |
MAIN SPECIFICATIONS | HKS160 | HKS250 | HKS250B |
Capacity round bar dia./square bar side | Φ160/160 x 160mm | Φ250/250 x 250mm | Φ250/220 x 220mm |
Hacksaw blade | 350 x 25 x 1.25mm (14”) | 400 x 35 x 2mm | 450 x 45 x 2.25mm |
Number of Reciprocationg motion | 85 1/mm | 91 | 75;90;108 |
Blade stroke length | 100-190mm | 152mm | 135mm |
Electric motor single phase or 3-phase | 0.37kw | 1.5kw | 2.24kw |
Coolant pump | CB-K 1.2J gear pump | 1.23 gear pump | available |
Overall dimensions (L x W x H) | 910 x 330 x 640mm | 1150 x 570 x 1180mm | 1262 x 863 x 967mm |
Net weight | 160kg | 600kg | 600kg |
Old model | G7016 | G7025 | G7025B |
