Metal Cutting Band Saw/saw/folding Saw/hand Tool
Negotiable
/ Set
1 Set(Min. Order)
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SMAC |
Product Description
Specifications

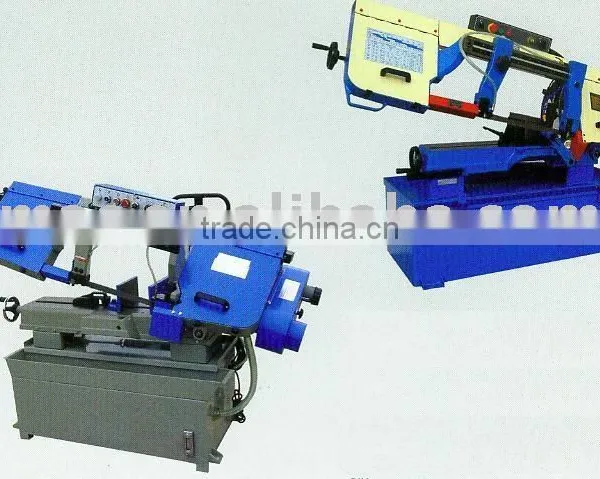

Metal cutting band saw/saw/folding saw/hand tool*Vertical force controlled through hydraulic cylinder
Metal cutting band saw/saw/folding saw/hand tool
*Vertical force controlled through hydraulic cylinder
*Strong structure for big capacity cutting
*BS-916V-Infintely adjustable blade speed through PIV transmission
| Item | 388013 | 388014 | 388015 | |
| Model | BS-916B | BS-916V | BS-1018B | |
| Max. Capacity | Circular @ 900 | 229mm(9") | 229mm(9") | 254mm(10") |
| Rectangular @ 900 | 127 x 406mm(5" x16") | 127 x 406mm(5" x16") | 127 x 457mm(5" x18") | |
| Circular @ 450 | 150mm(6") | 150mm(6") | 150mm(6") | |
| Rectangular @ 450 | 150 x 190mm(6" x7.5") | 150 x 190mm(6" x7.5") | 150 x 190mm(6" x71/2") | |
| Blade speed @ 60HZ | 35,60,88,115 (MPM) 114,196,288,377(FPM) | 22----122 (MPM) 95----402 (FPM) | 35,60,88,115 (MPM) 114,196,288,377(FPM) | |
| @ 50HZ | 26,50,73,95 (MPM) 95,164,240,312 (FPM) | 18----102 (MPM) 78-335 (FPM) | 26,50,73,95 (MPM) 95,164,240,312 (FPM) | |
| Blade size | 27 x 0.9 x 3090mm (1.06" x0.036" x122") | 27 x 0.9 x 3090mm (1.06" x0.036" x122") | 27 x 0.9 x 3276mm (1.06" x0.036" x129") | |
| Motor | 1.1KW (1.5HP). 50 /60HZ | 1.1KW (1.5HP). 50 /60HZ | 1.4KW (2HP). 50 /60HZ | |
| Drive | V-belt | V-belt | V-belt | |
| Packing size | 176 x83 x115cm (70" x 33 x45") | 176 x83 x115cm (70" x 33 x45") | 183 x83 x115cm (72" x 33" x45") | |
| N.W / G.W. | 280/340kg (617 / 749 lbs) | 300/348kg (660 / 767 lbs) | 310/397kg (683 / 875 lbs) | |
