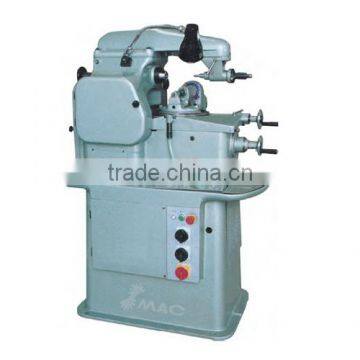

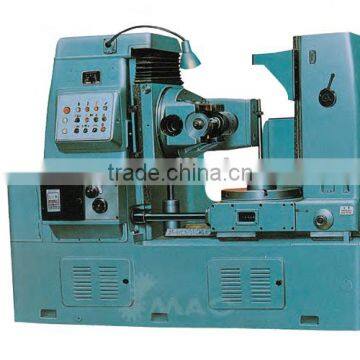

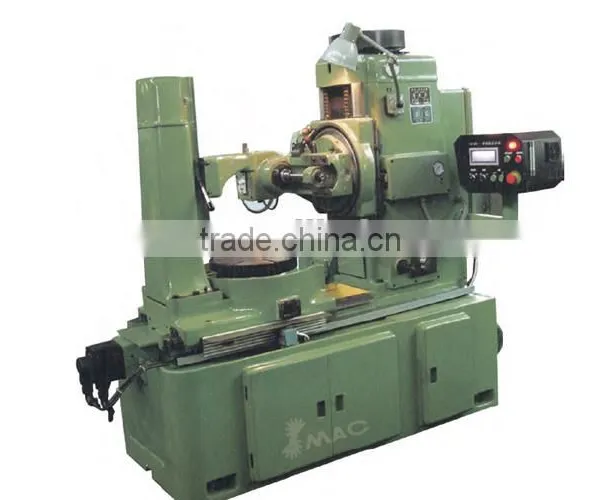

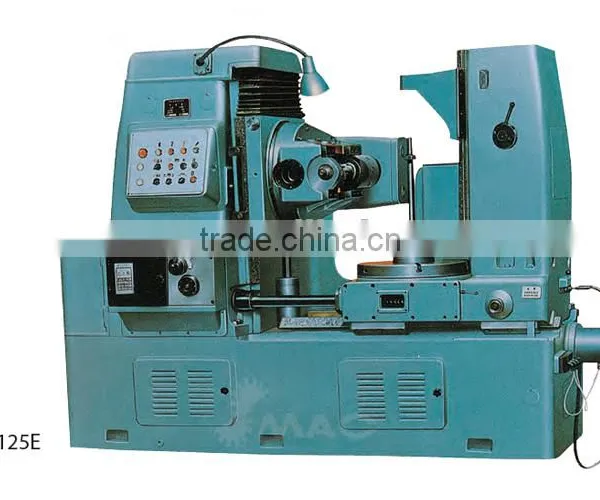

gear hobbing machine
USD $5,000 - $10,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- shanghai port
- T/T D/P D/A
You May Like
- Mini CNC Lathe,Mini CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
- Micro CNC Lathe Benchtop CNC Pocket NC Small CNC China Mini Lathe hobby CNC Lathe For Training
- CNC Horizontal Lathe
- CNC Horizontal Lathe
- CNC Vertical Lathe with C axis for turning, milling, boring, tappering
- CNC Double Column Vertical Lathe for turning only
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Automatic | Max. Swing Diameter: | mm | Place of Origin: | Jiangsu, China |
Brand Name: | SMAC | Model Number: | yb or y Series | Voltage: | 380V/220V/400V |
Power(W): | 30kw | Dimension(L*W*H): | 722x326x320mm | Weight: | KGS |
Certification: | CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
WIRE CUT
Model | 15831 | 15832 | 15833 | 15834 | 15835 | 15836 | 15837 | 15838 | 15839 | |
Type | Unit | Y31200 | Y31200 | YB3180 | YB3150E | Y3150 | Y3120 | Y3115 | YG3612 | YG3608A |
Max module of worpiece | mm | 2000 | 1250 | 800 | 500 | 500 | 200 | 150 | 120 | 80 |
Max module of workpiece | mm | 20 | 12 | 10 | 8 | 6 | 4 | 3 | 1 | 1.25 |
Max diameter of cutters | mm | 280 | 220 | 180 | 160 | 120 | 110 | 75 | 125 | 80 |
Max length of cutter | mm | 320 | 220 | 180 | 160 | 120 | 110 | 75 | 55 | 32 |
Max rotary angle of headstock | ±60° | ±60° | ±60° | ±240° | ±45° | ±45° | ±60° | ±90° | ±20° | |
Steps of spindle speed | steps | 8 | 7 | 8 | 9 | 8 | 11 | Stepless | 14 | 6 |
Range of spindle speed | rpm | 12-91 | 16-125 | 40-200 | 40-250 | 50-270 | 63-660 | 125-600 | 90-1200 | 330-1800 |
Main motor power | kw | 30 | 18.25 | 7.45 | 6.45 | 3 | 3 | 2.2 | 0.75 | 0.75 |
Dimensiods | cm | 722x326 x320 | 360x204 x240 | 276x142 x185 | 243x127 X177 | 182x96 x173 | 175x120 x160 | 120x75 x163 | 148x78 x150 | 98x76 x150 |
