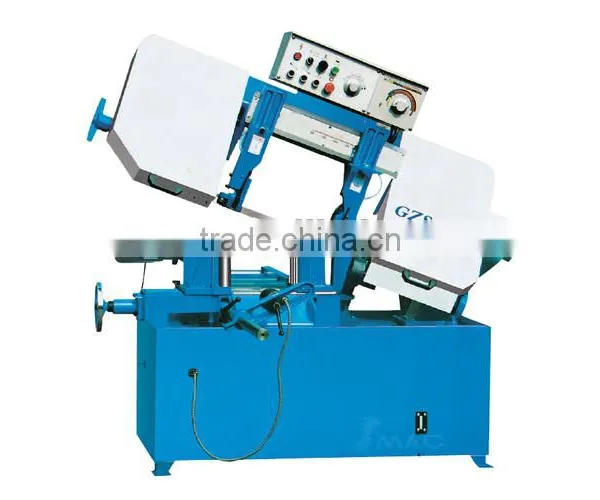

Horizontal Automatic Bandsaw
US$ 500 - 10,000
/ Set
1 Set(Min. Order)
- shanghai port
- T/T D/P D/A
You May Like
Product Details
Condition | New | Type | Horizontal | |
CNC or Not | Normal | Automatic Grade | Automatic | |
Max. Swing Diameter | mm | Place of Origin | Jiangsu, China | |
Brand Name | SMAC | Model Number | GAS280A Series | |
Voltage | 380V/220V/400V | Power(W) | 0.04 or 0.4kw or 2.2kw or 0.37kw | |
Dimension(L*W*H) | 2135x1877x1409mm | Weight | 810KGS | |
Certification | CE, ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
WIRE CUT
Automatic cutting cycle and automatic feed control
Automatic cut length control for mass production
Variable blade speed matches the size and type of material being cunt
Setting the cutting pressure by adjusting hydraulic valve, and automatic pressure regulation
The bladesaw works stable, reliably, and is easy to operate
Model | GAS280A | |||
Cutting Capacity | rounds | Φ280mm | ||
squares | 200 x 280mm | |||
Blade (W x T x L) | 25 x 0.95 x 3505mm | |||
Blade speed | 30-108m/min | |||
Motor | Blade | 2.2kw | Coolant pump | 0.04kw |
Hydraulic | 0.37kw | handwheel | 0.4kw | |
Pressure in the hydraulic system | 2.0Mpa | |||
Table height | 680mm | |||
Overall dimension (L x W x H) | 2135 x 1877 x1409mm | |||
Machine weight | 810kg | |||
Old model | GZS4028A |
