Automatic SMAC-38 Reducer Pipe Machine
US$ 8,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
1, 5
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Function Manual Hydraulic Bar Bending MachineUS$ 300 - 500MOQ: 1 Set -
CNC Tube Bender for Hot SaleUS$ 1,000 - 10,000MOQ: 1 Unit
-
China Factory Bar Threader MachineUS$ 300 - 500MOQ: 1 Set
-
High Frequency Welded Tube Mill ,ZG12 Production LineUS$ 100,000 - 250,000MOQ: 1 Set
-
High Economy Bar Bending MachineUS$ 300 - 500MOQ: 1 Set
Thickness
1, 5
Section Shape
Round
Outer Diameter
38 - 50 mm
Place of Origin
Jiangsu, China
Secondary Or Not
Non-secondary
Application
Structure Pipe
Technique
Cold Rolled
Certification
CE
Surface Treatment
Galvanized
Special Pipe
API Pipe
Alloy Or Not
Is Alloy
Product Description
automatic SMAC-38 Reducer pipe machine
main features:
Multi-Work Position Pipe End Forming Machine
PLC control,hydraulic driving.The electric and hydraulic elements are all imported.
Mobile foot switch has auto,emergency stop,emergency stop and going on functions.
It has high safety.

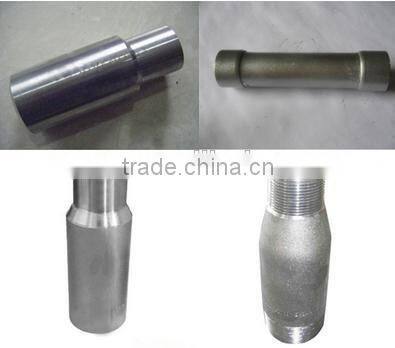

It can reduce,enlarge of blunt pipes.The processed shapes,includes concave-convex section,long,fiat,square,enlargement,slanting,V-shaped,open slot and others.
According to the processed products of the consumer,the die can be exchanged.
The exchanging die is simple and convenient for flexible production.
main parameters
| Model | 12141 | 12142 | 12143 | 12144 | 12145 | 12146 | |
| Unit | 38Type | 38Type | 50Type | 76Type | 89Type | 114Type | |
| Max.Pipe Reduction Dia: | mm | ø38*2 | ø50*2 | ø76*2 | ø89*2 | ø114*2 | ø129*2 |
| Max Pipe Reduction length: | mm | 120 | 120 | 120 | 150 | 150 | 150 |
| Motor Power: | kw | 3.0 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Weight | kg | 1000 | 1300 | 2000 | 2500 | 3000 | 3500 |
Specifications
Reducer pipe machine
1. Automatic
2. Easy control
3. Energy saving
4.CE&ISO9001:2008
