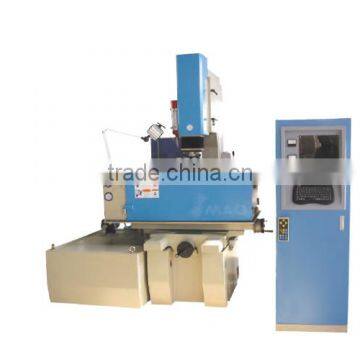

High Precision Fast Wire EDM Die Sinking Machine From China Supplier

Name: High Precision Fast Wire EDM Die Sinking Machine From China Supplier
Brand: SMAC
SKU: 143010876
Availability: InStock

SJR Machinery Co., Ltd.

US$ 10,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Automatic

Max. Swing Diameter MM

Place of Origin Jiangsu, China

Brand Name SMAC

Model Number edm

Voltage 380V/220V/400v

Power(W) lathe

Dimension(L*W*H) mm

Weight lathe

Certification CE, ISO

After-sales Service Provided Engineers available to service machinery overseas

edm die sinking machine

	16001	16002	16003	16004	16005	16006	16007	16008	16009
Type	EDM300	EDM320	EDM430	EDM450	EDM550	EDM650	EDM1060	EDM1260	EDM2180
Worktable Dimension	500 x 250	600 x 300	700 x 400	500 x 250	900 x 500	500 x 250	1250 x 800	1250 x 800	2500 x 1200
Travel (X axis)	300	300	400	450	550	650	1000	1200	2100
Travel (Y axis)	200	250	300	350	450	550	500	300	800
Travel (Z axis)	220	160+200	220+200	220+200	220+300	280+350	550	550	600
Oil Tank Dimension	830x520 x315	900x570 x345	1140x645 x360	1440x670 x500	1440x860 x500	1750x1080 x600	2000x1300 x700	2000x1300 x700	3500x1800 x700
Distance from Z axis to Worktable	500	530	630	670	870	890	1100	1100	1200
Max. Load of Z axis	50kg	50kg	70kg	90kg	120kg	200kg	300kg	300kg	350kg
Max. Load of Worktable	350kg	450kg	1000kg	1200kg	1550kg	2000kg	4500kg	4500kg	6000kg

Power	ZG-30	ZG-60	ZG-100	ZG-200	ZGK-50	ZGK-50C
Power	2.5KVA	4.8KVA	7.5KVA	14KVA	4.0KVA	4.5KVA
Max. Output Current	30A	60A	100A	200A	50A	50A
Max. Work Efficiancy	≥250mm3/min	≥500mm3/min	≥1200mm3/min	≥2500mm3/min	≥400mm3/min	≥400mm3/min
Min. Electrode Dissipation	<0.2%	<0.2%	<0.2%	<0.2%	<0.2%	<0.2%
Best Machine Accuracy	Ra≤0.4μm	Ra≤0.4μm	Ra≤0.4μm	Ra≤0.4μm	Ra≤0.4μm	Ra≤0.4μm
Displayer	Digital LED	Digital LED	Digital LED	Digital LED	LED For Numerical Control	LED For Numerical
