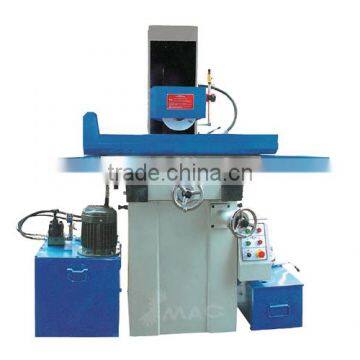

High Quality Superfine Grinding Machine

Name: High Quality Superfine Grinding Machine
Brand: smac
SKU: 143010882
Availability: InStock

US$ 2,000 - 12,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

smac

Model Number:

MSG Series

SJR Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name smac

Model Number MSG Series

Voltage 220v/380v

Power(W) 1.1KW

Dimension(L*W*H) 1550X1060X1590/1680X1140X1800/1800X1400X1800/1600X1400X1850

Weight 0.65-1.0T

Certification iso9001/ce

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Type Other, Universal

Condition New

Specifications

1)CC heavy gap milling machine
2)Precision ground,Clutched head stock
3)CE-conformity
4)Safety torque limiting device

		13807	13808	13809	13810
Main parameters	unit	MSG618	MSG818	MSG250	MSG230
Max.size of workpiece be ground(LXWXH)	mm	500X190X335	540X220X450	540X240X490	520X240X490
Max.grinding length	mm	550	520	540	520
Max.grinding width	mm	190	220	240	230
Distance from table surface to spindle center	mm	335	450	490	460
Max.loading capacity	kg	200	180	250	230
Table size(LXW)	mm	460X180	480X200	540X250	520X230
Number of T-Slot	mmxn	12X1	12X1	12X1	14X1
Speed of working	m/min	3-23	3-23	3-23	3-23
Cross feed on handwheel	mm	0.02/GRADUATION 2.5/REVOLUTION	0.02/GRADUATION 2.5/REVOLUTION	0.02/GRADUATION 2.5/REVOLUTION	0.02/GRADUATION 2.5/REVOLUTION
Vertical feed on handwheel	mm	0.01/GRADUATION 1.25/REVOLUTION	0.01/GRADUATION 1.25/REVOLUTION	0.01/GRADUATION 1.25/REVOLUTION	0.01/GRADUATION 1.25/REVOLUTION
Wheel size(dia.x width x bore)	mm	200X16X31.75	200X16X31.75	200X16X31.75	200X16X31.75
SPINDLE SPEED 50HZ	rpm	2850	2850	2850	2850
Spindle moto	kw	1.1	1.1	1.1	1.1
Coolant pump	kw	0.4	0.4	0.4	0.4
Minimum of numberical display	mm
Macine size(LXWXH)	mm	1550X1060X1590	1680X1140X1800	1800X1400X1800	1600X1400X1850
packing size (lxwxh)	mm	1060X1170X1870	1140X1280X1960	1960X1630X1870	1650X1450X1870
Gross net(weight)	T	M618A	M818A	M250	M230
old model
