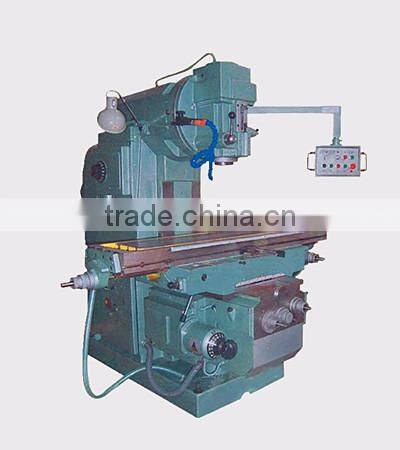

profect knee type milling machine VM53K
Main Characteristics & Application
Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular, cuttres, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, cutter,helix groove, cam and tub wheel.
Vertical milling head can be swiveled by ±45°. Spindle quill can be moved in vertical. The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. Working table and slide ways adopted quality cast hardened ensure high accuracy.
Standard Accessories
Tool bar
Reducing sleeve
Tools
Manuals
Optional Accessories
Machine vice
Rotary table
Dividing head
Spring collect
Tool box
Iron wedge
DRO
Transmission box (X53K/1)
profect knee type milling machine VM53K
| Model | VM40 | VM53K | VM42 VM42A | VM42A/1 | VM42/2 | |
| Table size | mm | 400 x 1600 | 400 x 1600 | 420 x 1800 | 420 x 2500 | 500x2000/2500 |
| Longitudinal travel (Manual/Power) X | mm | 900/880 | 980/880 | 1200/1180 | 1600 | 1250/1600 |
| Cross travel (Manual/Power) Y | mm | 315/300 | 315/300 | 360/350 | 410/400 | 400 |
| Vertical travel (Manual/Power) Z | mm | 385/365 | 385/365 | 460/450 | 460/450 | 400 |
| Feed speed steps | 18 | 18 | 18 | 15 | 15 | |
| Rapid feed ranges: Longitudinal X | mm/min | 19-950 | 19-950 | 22.5-1180 | 10-1250 | 10-1250 |
| Cross Y | mm/min | 12.6-634 | 12.6-634 | 22.5-1180 | 10-1250 | 10-1250 |
| Vertical Z | mm/min | 6.3-317 | 6.3-317 | 8.6-420 | 2.5-315 | 2.5-315 |
| Min. distance from spindle end to table | mm | 30-500 | - | 60-520 | 340-790 | 0-500 |
| Quill travel | mm | 85 | - | 85 | 90 | -- |
| Spindle speed steps | 18 | 18 | 18 | 20 | 20 | |
| Spindle speed ranges | rpm | 30-1500 | 30-1500 | 30-1500 | 18-1400 | 18-1400 |
| Main motor power | kw | 11 | 11 | 11 | 11 | 11 |
| Overall size | cm | 255 x 215 x 219 | 255 x 215 x 219 | 243 x 226 x 243 | 265 x 220 x 276 | 277/327x253x248 |
| Net weight | kg | 4250 | 4250 | 5000 | 5400 | 5160/5400 |
