the hot sale and good precision low price vertical milling machine VM5032 of china
- 45 Set / Sets per Month
- shanghai.china
- T/T L/C D/P D/A
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Benchtop CNC Mill, desktop cnc mill, Compact CNC, educational cnc, prototype cnc, cnc for school, training cnc
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Brand Name: | SMAC | Model Number: | VM5032 |
Type: | Vertical | CNC or Not: | Normal | Voltage: | 380V |
Power(W): | 7.5kw | Dimension(L*W*H): | 2030*1707*2096mm | Weight: | 2900kg |
Certification: | CE;ISO | Warranty: | 1 year |
Product Description

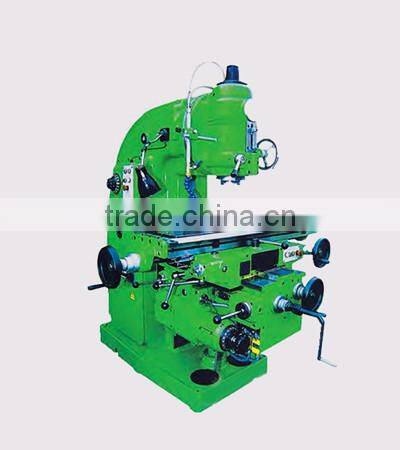

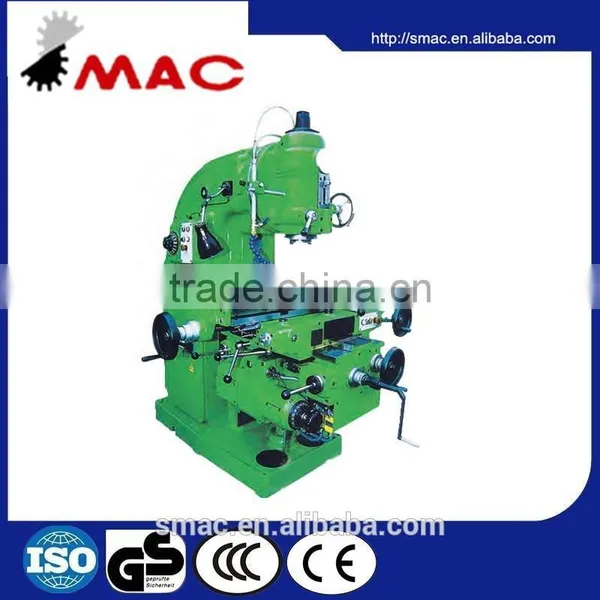

low price vertical milling machine VM5032
Main Characteristics & Application
Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular, cuttres, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, cutter,helix groove, cam and tub wheel.
Vertical milling head can be swiveled by ±45°. Spindle quill can be moved in vertical. The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. Working table and slide ways adopted quality cast hardened ensure high accuracy.
Standard Accessories
Sutter Arbor Φ22 Φ27mm 1set
End Milling Arbor No.2:No.3 1set
Medium Bushing Φ5 Φ14 1set
Collet Chuck 1set
Wrenches 1set
Anchor Bolts 1set
Oil Gun 1set
Optional Accessories
Universal Dividing Head 125mm 1set
Rotary Work Table Φ320 1set
Plain Vice 160mm 1set
End Milling Cutter Φ80 Φ100 Φ125 1set
Boring Tool holder Φ4-Φ160 1set
Levelling Block 6pcs
Blocking tool P621000 1se
low price vertical milling machine VM5032
Model | VM5032A | VM5032 x 16 | VM5032 | |
Table size | mm | 320 x 1320 | 360 x 1600 | 320 x 1320 |
T slots (N x W x D) | mm | 3 x 18 x 80 | 3 x 18 x 80 | 3 x 18 x 80 |
Longitudinal travel X | mm | 800/780 | 1020/1000 | 700/680 |
Cross travel Y | mm | 300/280 | 300/280 | 240/225 |
Vertical travel Z | mm | 410/400 | 410/400 | 370/375 |
Feed speed steps | 18 | 18 | 15 | |
Feed speed ranges: Longitudinal X | mm/min | 15-750 | 15-750 | 23.5-1180 |
Cross Y | mm/min | 15-750 | 15-750 | 15-786 |
Vertical Z | mm/min | 5.7-280 | 5.7-280 | 8-394 |
Rapid feed ranges: Longitudinal X | mm/min | 2250 | 2250 | 2300 |
Cross Y | mm/min | 2250 | 2250 | 1540 |
Vertical Z | mm/min | 844 | 844 | 770 |
Swivel of vertical milling head | ±45° | ±45° | ±45° | |
Quill travel | mm | 75 | 75 | |
Distance from spindle center to column | mm | 380 | 380 | |
Min. distance from spindle end to table | mm | 60 | 60 | |
Spindle hole taper | 7:24 50# | 7:24 50# | 7:24 50# | |
Arbor diameter | Ø32 Ø50 | Ø32 Ø50 | Ø32 Ø50 | |
Spindle speed steps | 18 | 18 | 18 | |
Spindle speed ranges | r/min | 30-1500 | 30-1500 | 30-1500 |
Main motor power | kw | 7.5 | 7.5 | 7.5 |
Feed motor power | kw | 1.5 | 1.5 | 1.5 |
Cooling pump power | kw | 0.12 | 0.12 | 0.12 |
Overall size | mm | 2030 x 1707 x 2096 | 2030 x 1707 x 2096 | 2030 x 1707 x 2096 |
Packing box size | mm | 2240 x 1790 x 2320 | 2240 x 2180 x 2320 | 2240 x 1790 x 2200 |
Net weight | Kg | 3200 | 3250 | 2900 |
low price vertical milling machine VM5032
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to SJR Machinery Limited
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE
Our products are exported to more than 50 countries, more than 700 customers
