the Profect and High Precision Universal Horizontal Milling Machine TMS6330H of CHINA of SMAC

SJR Machinery Co., Ltd.
the Profect and High Precision Universal Horizontal Milling Machine TMS6330H of CHINA of SMAC thumbnail-1
the Profect and High Precision Universal Horizontal Milling Machine TMS6330H of CHINA of SMAC photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
SMAC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai.china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name SMAC
Model Number TMS6330H
Type Vertical
CNC or Not Normal
Voltage 380V
Dimension(L*W*H) 1800*1800*2200mm
Weight 1680/1730kg
Certification CE;ISO
Warranty 1 year

universal horizontal milling machine TMS6330H



Product Description



universal horizontal milling machine TMS6330H

Super width of bed and Keen box guide way, which have been hardende and precision ground, with high rigidity and stability. The guide way of the saddle is lined with TF wearable belt. The machine with one vertical spindle and one horizontal spindle, the spindles and gears have benn hardened and ground, suitable heavy cutting.

Standard Equipment

Electro cabionet and hung up control panel

Electro lubricate pump

Working lamp

Knee rapid elevationg motor

Draw bar Plastic splashing guard

Cooling system

Oil collecting plate

Leveling wedge screw





Date



universal horizontal milling machine TMS6330H

ModelUnitTMN6330HTM6330HTMS6330H
Table sizemm300 x 1300300 x 1300300 x 1500300 x 1370300 x 1500
Table longitudinal travel (manual)mm84584510008001000
Table cross travel (manual)mm385385385380380
Knee vertical travel (manual)mm435
Table longitudinal feed ratemm/min0-3500
Servo Motor
Table cross feed ratemm/min
Knee rapid speedmm/min900
Vertical
Speedle		Motor powerHP5HP3HP/OPT.5HD
Speedrpm(Standard: 16 steps): 50HZ: 65-4500/HZ: 80-5440
(Optional: variable speed): 65-3750
Taper ISO40standard:R8/OPT.ISO40
Quill travelmm127
Quill feedmm/rev0.04/0.08/0.15
Head rotating (R/L) 90°
Distance from spindle end to table surfacemm115-545
Horizontal
spindle		Motor powerHP5HP
Sppedrpm50HZ: 45/80/165/260/500/980 60HZ: 55/100/200/315/600/1180
Taper ISO40
Distance from spindle center to table surfacemm20-410
Distance from spindle center to rammm183
Ram travelmm480
Ram rotating 360°
Net weightkg19001900195016801730
Package size (L x W x H)cm180 x 150 x
220		180 x 150 x
220		180 x 150 x
220		180 x 160 x
220		180 x 180 x
220





product show

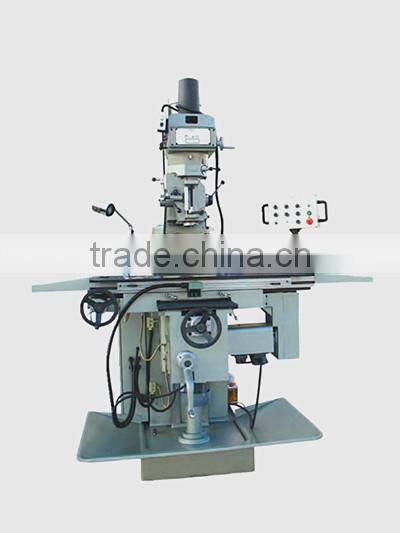

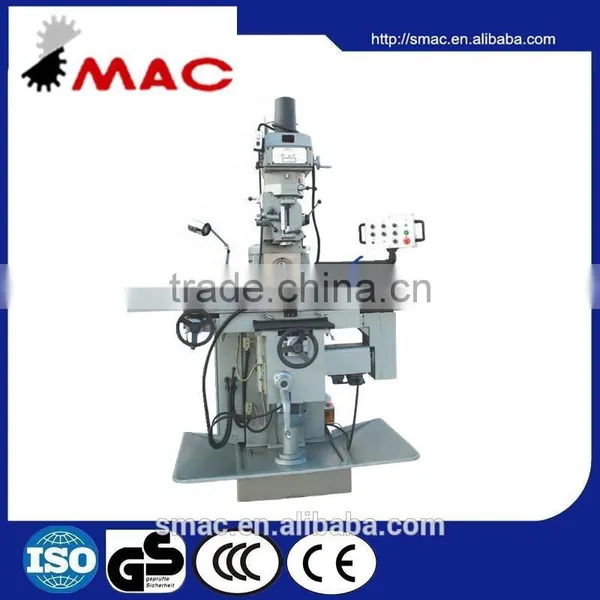

universal horizontal milling machine TMS6330H

the profect and high precision universal horizontal milling machine TMS6330H of CHINA of SMAC







packing show

the profect and high precision universal horizontal milling machine TMS6330H of CHINA of SMAC



our team

the profect and high precision universal horizontal milling machine TMS6330H of CHINA of SMAC



our factory

the profect and high precision universal horizontal milling machine TMS6330H of CHINA of SMAC
