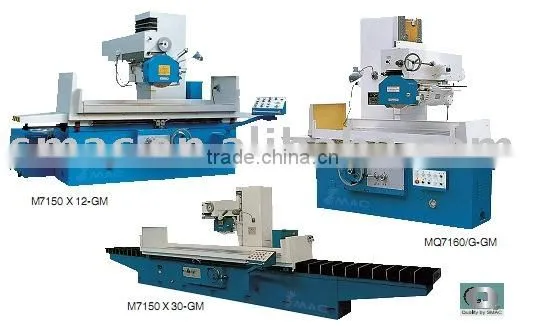

M7150 Series Surface Grinding Machines/grinder/power grinder/air grinder

Specifications

M7150 Series Surface Grinding Machines/grinder/power grinder/air grinder

*M7150 Series Surface Grinding Machines/grinder/power grinder/air grinder





This series of  machine tool is suitable for machine-manufacture trade to grind the planes of various metal parts such as steel, cast iron and nonferrous metal.
Characteristic:
The lengthways moving of the working table and the transverse moving of the grind head are hydraulic transmission, and the velocity modulation is stepless.
The grind head perpendicular feed is manual, and has the quick elevating mechanism. It can lighten labour intensity and raise work efficiency.
The working table slideway of rail is pasted the polytetra fluoroethylene soft belt. The wear-resisteant is good, and the energy consumption is low.

13905-1

13905-2

13905-3

13905-4

13905-5

13905-6

13906-1

Main Specifications

M7150-GM

M7150 x 12-GM

M7150 x 16-GM

M7150 x 20-GM

M7150 x 30-GM

MQ7150-GM

MQ7160/G-GM

Table working surface (W x L)

500 x 1000mm

500 x 1250mm

500 x 1600mm

500 x 2000mm

500 x 3000mm

320 x 1000mm

320 x 1000mm

Max. size of workpiece to be ground (W x L x H)

500 x 1000 x 400mm

500 x 1250 x 400mm

500 x 1600 x 400mm

500 x 2000 x 500mm

500 x 3000 x 400mm

500 x 1000 x 400mm

600 x 1000 x 600mm

Table longitrdinal travel (hydraulic)

200-1100mm

200-1350mm

200-1700mm

200-2100mm

200-3100mm

200-1100mm

200-1100mm

Speed of table (stepless)

3-25m/min

3-28m/min

3-25m/min

3-25m/min

Min. Down-feed hand-wheel dial graduated to

0.005mm

0.005mm

-

-

Grinding wheel size (O. D x W x I. D)

Φ400 x 50 x Φ203mm

Φ400 x 50 x Φ203mm

Φ350 x 40 x Φ127mmΦ350 x 40 x Φ127mm

Electrical equipment total capacity

14KVA

14KVA

14KVA

17.5KVA

35KVA

10KVA

10KVA

Grinding wheel motor power

7.5kw

7.5kw

5.5kw

5.5kw

Speed

1440r/min

1440r/min

1440r/min

1440r/min

Working surface to base level parallelism

300: 0.005mm

300: 0.005mm

300: 0.005mm

300: 0.005mm

Surface roughness

Ra0.63μm

Ra0.63μm

Ra0.63μm

Ra0.63μm

Max. allowable weight of workpiece (Including electromagnetic chuck)

780kg

975kg

1248kg

1560kg

1600kg

800kg

800kg

Electromagnetic chuck (W x L)

500 x 1000mm

500 x 1250mm

500 x 1600mm

500 x (1000x2)mm

500x(1000 x 3)mm

500 x 1000mm600 x 1000mm

Overall dimensions (L x W x H)

3040 x 2073 x 2280mm

3530 x 2073 x 2280mm

4100 x 2073 x 2280mm

4900 x 2135 x 2410mm

8206x2064x2280mm

3000x1675x2252mm

3000x1675x2252mm

Packing case dimensions (cm) (L x W x H)

343 x 233 x 270

383 x 233 x 288

442 x 234 x 270

461 x 250 x 278

261 x 187 x 254

261 x 187 x 254

N. W/G. W

5600/6200kg

6000/6600kg

7000/7700kg

8000/8800kg

11600/12300kg

4100/4500kg

4200/4700kg
