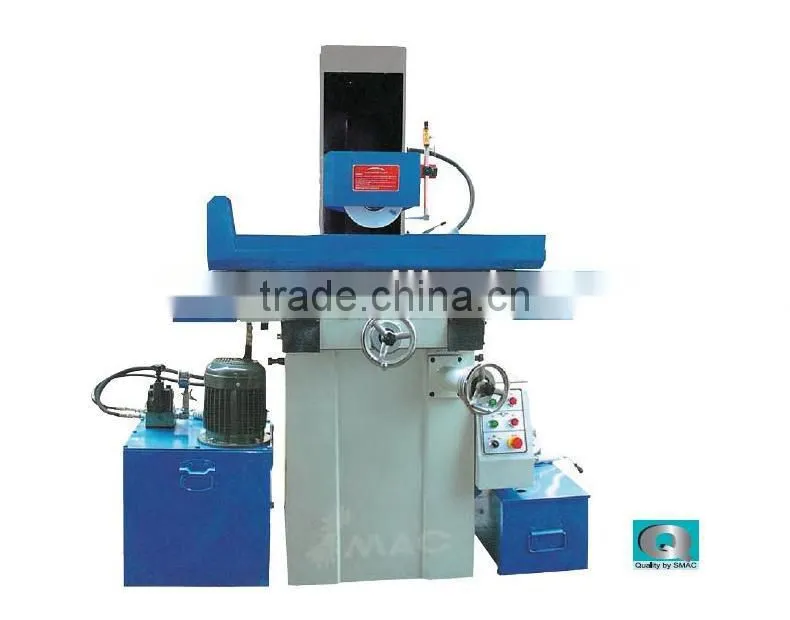

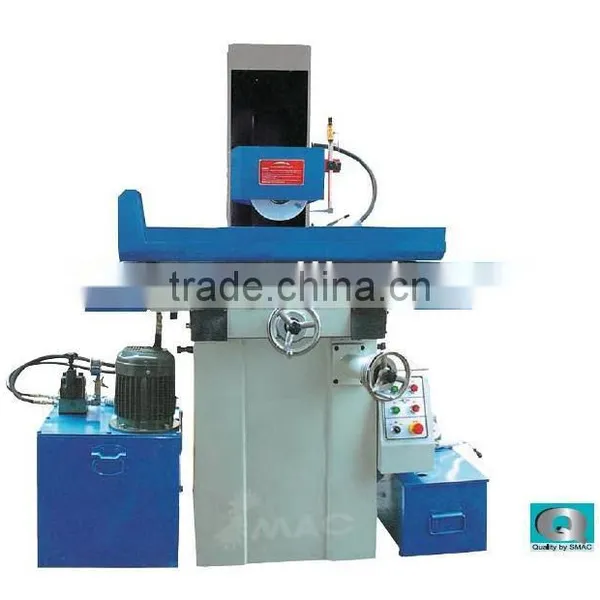

Manual Surface Grinding Machine/grinder
US$ 1,000 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Surface Grinding MachineNegotiableMOQ: 1 Set -
M7180 Series Surface Grinding Machines/grinder/angle Grinder/electric Angle GrinderNegotiableMOQ: 1 Set
-
Precision Drill Grinding MachineNegotiableMOQ: 1 Set
-
M7160 Series Surface Grinding Machines/grinder/air Grinder/power GrinderNegotiableMOQ: 1 Set
-
SMAC Advanced and Well Frame Surface Grinder MachineNegotiableMOQ: 1 Set
Condition
New
Type
Surface Grinding Machine
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
SMAC
Model Number
MSG618
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
excellent in quality and reasonable in priceMANUAL SURGACE GRINDING MACHINE/GRINDER
| 13807 | 13808 | 13809 | 13810 | ||
| main parameters | unit | MSG618 | MSG818 | MSG250 | MSG230 |
| max. size of workpiece be ground (L*W*H) | mm | 500*190*335 | 540*220*450 | 540*240*490 | 520*240*490 |
| max.grinding length | mm | 550 | 520 | 540 | 520 |
| max.grinding width | mm | 190 | 220 | 240 | 230 |
| distance from table surface to spindle center | mm | 335 | 450 | 490 | 460 |
| max. loading capacity | kg | 200 | 180 | 250 | 230 |
| table size(L*W) | mm | 460*180 | 480*200 | 540*250 | 520*230 |
| nomber of T-Slot | mm*n | 12*1 | 12*1 | 12*1 | 12*1 |
| speed of working | m/min | 3-23 | 3-23 | 3-23 | 3-23 |
| cross feed on handwheel | mm |
0.02/graduation 2.5/revolution |
0.02/graduation 2.5/revolution |
0.02/graduation 2.5/revolution |
0.02/graduation 2.5/revolution |
| vertical feed on handwheel | mm |
0.01/gradution 1.25/revolution |
0.01/gradution 1.25/revolution |
0.01/gradution 1.25/revolution |
0.01/gradution 1.25/revolution |
| wheel size(dia. * width * bore) | mm | 200*16*31.75 | 200*16*31.75 | 200*16*31.75 | 200*16*31.75 |
| spindle speed / 50HZ | rpm | 2850 | 2850 | 2850 | 2850 |
| spindle motor | kw | 1.1 | 1.1 | 1.1 | 1.1 |
| coolant pump | kw | 0.4 | 0.4 | 0.4 | 0.4 |
| minimum of numberical display | mm | ||||
| machine size(L*W*H) | mm | 1550*1060*1590 | 1680*1140*1800 | 1800*1400*1800 | 1600*1400*1850 |
| packing size(L*W*H) | mm | 1060*1170*1870 | 1140*1280*1960 | 1960*1630*1870 | 1650*1450*1870 |
| gross net (weight) | T | 0.75 0.65 | 0.80 0.70 | 0.90 1.00 | 0.80 0.90 |
| old model | M618A | M818A | M250 | M230 |
