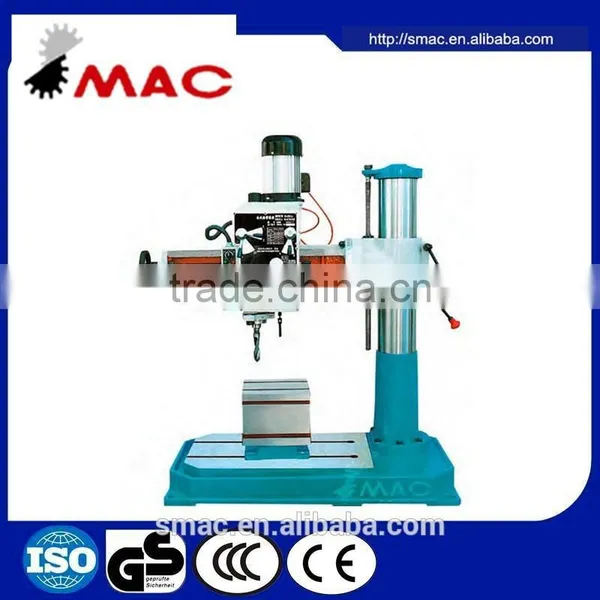

radial drilling machine/drilling machine/drill machine RD3207(3207P/3208/4008/3209/3210/4010/3213)
- 60 Set / Sets per Month
- shanghai port
- T/T
Product Details
Condition: | New | CNC or Not: | Normal | Place of Origin: | Jiangsu, China |
Brand Name: | SMAC | Model Number: | RD3207(3207P/3208/4008/3209/3210/4010/3213) | Voltage: | 220/380V |
Power(W): | 0.75/1.5/2.2KW | Dimension(L*W*H): | 2040x750x2360mm | Weight: | 380~1600KG |
Certification: | ISO,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

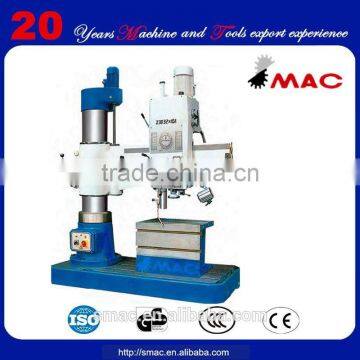

radial drilling machine
Standard Accessories:
Box shape worktable
Taper sleeve
Tool releasing Wrench
Drift
Eyelet bolts
Optional Accessories:
Quick instead chuck
Tapping chuck
Grease gun
Foot stand (RD3207)
radial drilling machine
Model | RD3213 | RD3210 RD4010 | RD3209 | RD3208 RD4008 | RD3207 RD3207P |
Max. Drilling capacity (mm) | 32 | 32/40 | 32 | 32/40 | 32 |
Distance Spindle axis to column generating line (mm) | 200-1300 | 300-1000 | 260-900 | 320-820 | 300-700 |
Diameter of column (mm) | 240 | 220 | 200 | 150 | |
Spindle taper (mm) | MT4 | MT4 | MT4 | MT4 | MT3 |
Spindle travel (mm) | 250 | 280 | 210 | 210 | 150 |
Spindel speeds range (mm) | 71-1800 | 32-2500 | 75-1250 | 75-1220 | 100-1600 |
Spindle speeds series | 8 | 16 | 6 | 6 | 8 |
Range of Spindle feeds (mm/r) | 0.13-0.54 | 0.10-1.25 | 0.05-0.16 | 0.1-0.25 | 0.08, 0.14, 0.23 |
Spindle feed | 4 | 8 | 3 | 3 | 360 |
Max. Distance nose to working surface of base (mm) | 264-1064 | 220-1000 | 250-1100 | 320-900 | 275-680 |
Dimension of worktable (mm) | 600x450x450 | 400x400x350 | 400x400x350 | 250x250x250 | |
Dimension of base (mm) | 1710x800x160 | 1500x700x160 | 1370x700x160 | 1050x550x120 1200x325x155 | |
Overall Size (cm) | 204x75x236 | 176x80x205 | 150x70x210 | 140x72x188 | 123x55x120 123x62x123 |
Power of main motor (W) | 2.2 | 2.2 | 1.5 | 1.5 | 0.75 |
G.W/N.W | 2100/1600 | 2100/1600 | 1380/1250 | 1425/1200 | 475-380 |
Packing dimension (cm) | 187x97x220 | 187x97x220 | 160x75x220 | 155x77x210 | 123x62x134 |
radial drilling machine
