bore well drilling machine URD25
Specifications
1. Hydraulic clamping.
2. Hydraulic transmission.
3. Hydraulic preselection.
4. Electrical machinery double protection
Product Descriptio

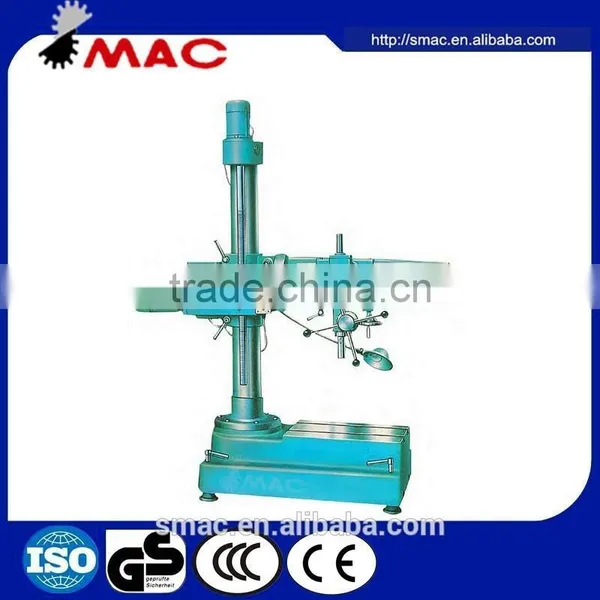

Model URD25 Portable Type Universal Radial Drilling Machine:
The machine can be used in any direction to act on the workpiece for dirlling. reaming, spotting and thread tapping.
Suitable for small-lot protting and thread tapping.
Suitable for small-lot production and for machining large-sized and heavy-duty workpiece in assembling and repair shop.
The arm can lifting rapidly and operate easilly.
bore well drilling machine URD25
bore well drilling machine URD25
| Model | URD25 | |
| Max. drilling dia. | mm | 25 |
| Distance of spindle centre line to column surface | mm | 330-820 |
| Distance of spindle nose to table surface | mm | 820-860 |
| Taper hole of spindle | Morse No.3 | |
| Spindle speed | r/min | 175, 425, 687, 960 |
| Travel of spindle | mm | 130 |
| Swivel angle of arm | deg | 360 |
| Size of table (L x W) | mm | 600 x 520 |
| Main motor power | kw | 1.5 |
| Net weight | kg | 820 |
| Gross weight | kg | 1300 |
| Overall dimensions (L x W x H) | mm | 1768 x 725 x 1984 |
| Packing box dimension (L x W x H) | mm | 2040 x 976 x 2428 |
