drilling machine
Milling, drilling, tapping, boring, reaming
Head swivels or tilts
Micro feed precision
Heavy-duty tapered roller bearing spindle
Positive spindle lock
Adjustable gibs on table
Geared drive lower noise
Accurate position, strong rigidity, strong cutting power
1.STANDARD ACCESSORIES
face mill cutter with handle,drill chunk,taper shaft of drill chunk,4pcs internal six-side spanner,slanting block,sleeve or dull spanner
2.OPTIONAL ACCESSORIES
vice,mill chunk,digital indicator,work-table automatic feeder device,cooling system,CE standard scheme,support
table
drilling machine
MODEL | DML6350A | DML6350C | DML6350Z | DML6350Z | XZ6350ZB | |
Max. drilling dia (mm) | 50; 30 | 50; 30 | 50; 30 | 50; 30 | ||
Spindle taper | M.T.4; R8; ISO30 | M.T.4; R8; ISO30 | M.T.4; R8; ISO40 | M.T.4; R8; ISO40 | ||
Max. vertical milling dia (mm) | 25 | 25 | 25 | 25 | ||
Max. boring dia (mm) | 120 | 120 | 120 | 120 | ||
Max. tapping dia (mm) | M16 | M16 | M16 | M14 | ||
Distance. spindle to talbe surface (mm) | 100-480 | 100-490 | 90-370 | 100-430 | ||
Spindle speeds rage (r.p.m.) (steps) | Vertical | 115-1750 (8) | 115-1500 (8) | 60-1500 (8) | 38-1300 (8) | |
Horizontal | 40-1300 (12) | 40-1300 (12) | 40-1300 (12) | 90-2000 (12) | ||
Spindle travel (mm) | 120 | 120 | 120 | 120 | ||
Automatic spindle feeds (mm/r) | 0.08 0.15 0.25 | 0.08 0.15 0.25 | 0.08 0.15 0.25 | |||
Table size (mm) | 1120 x 280;1000 x 280 | 1120 x 280;1000 x 280 | 1250 x 320 | 1120 x 260 | ||
Table travel (mm) | 600 x 260 | 600 x 260 | 600 x 300 x 280 | 600 x 300 x 280 | ||
Overall dimensions (mm) | 1400 x 1630 x 2350 | 1400 x 1630 x 2650 | 1700 x 1480 x 2150 | 1520 x 1285 x 2150 | ||
Motor (kw) | Vertical | 0.85 | 1.5 | 1.5 | 1.5 | |
Horizontal | 1.5/2.2 | 2.2 | 2.2 | 2.2 | ||
N.W./G/W. (kg) | 1200/1350 | 1200/1350 | 1450/1550 | 1300/1400 | ||
Old model | ZX6350A | ZX6350C | ZX6350Z | ZX6350ZA | WEIDA | |

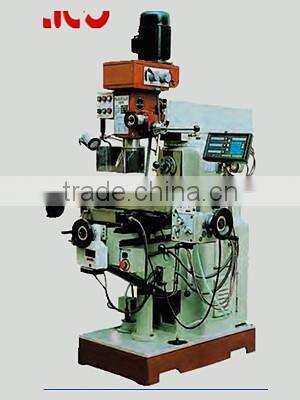

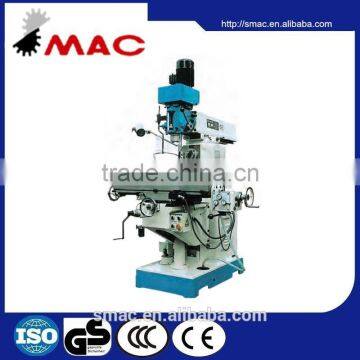

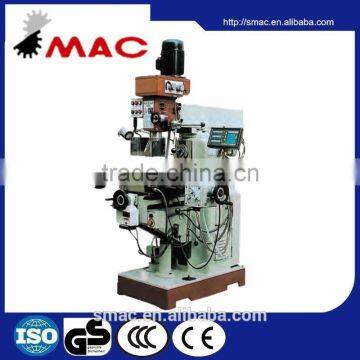

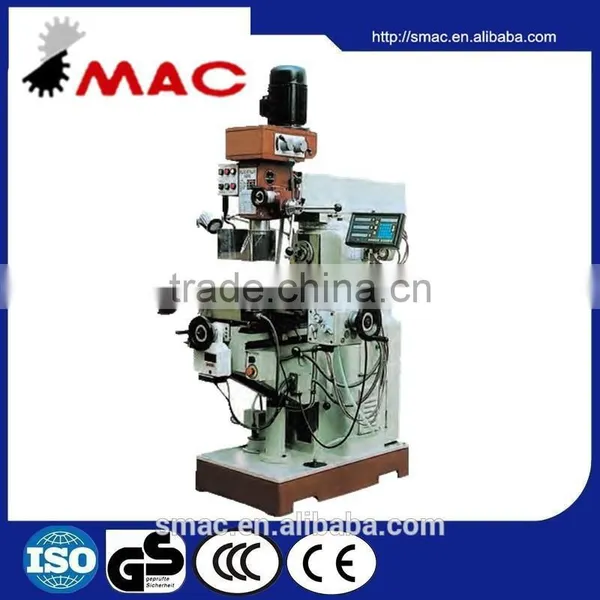

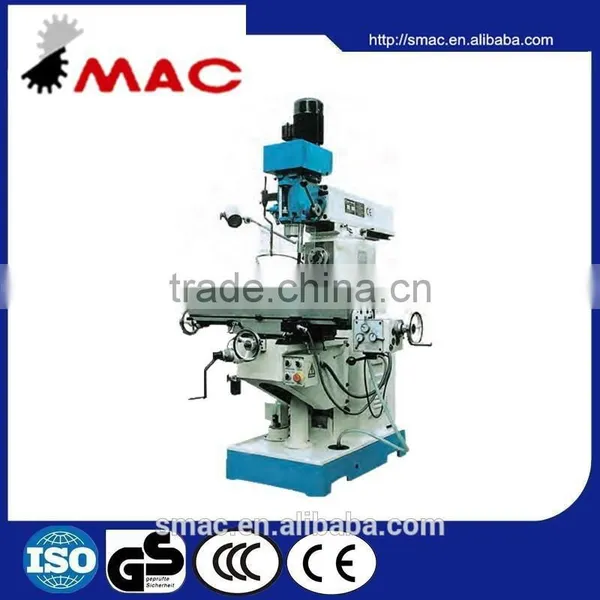

drilling machine DML6350A(6350C)

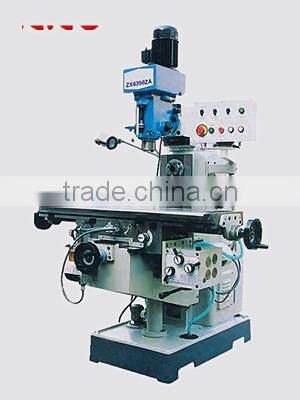

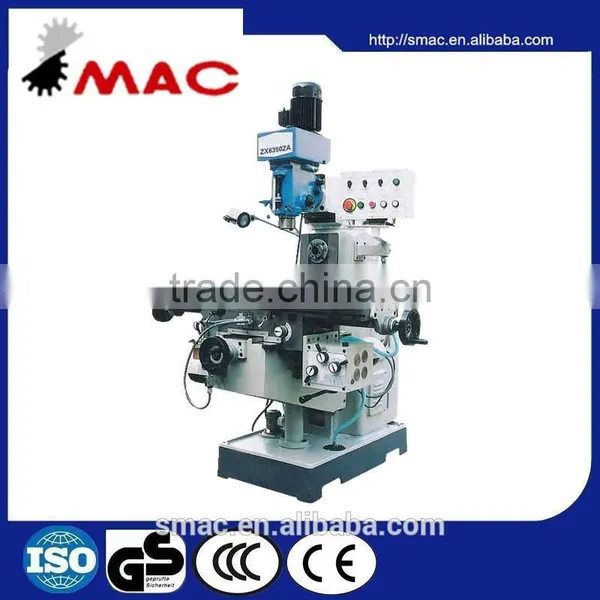

drilling machine DML6350ZA
